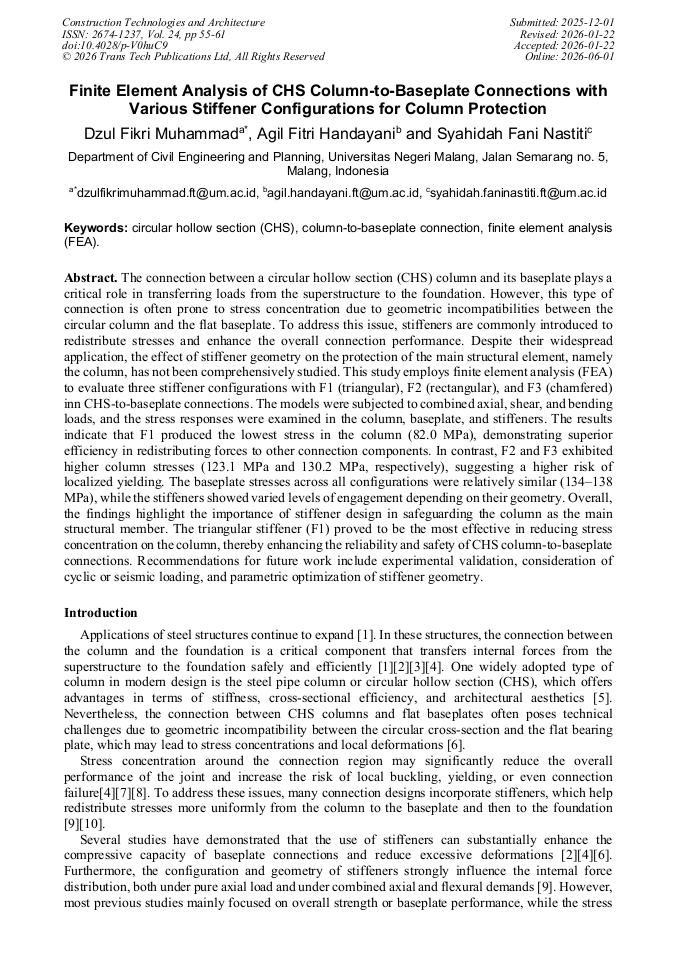

Finite Element Analysis of CHS Column-to-Baseplate Connections with Various Stiffener Configurations for Column Protection

Abstract:

The connection between a circular hollow section (CHS) column and its baseplate plays a critical role in transferring loads from the superstructure to the foundation. However, this type of connection is often prone to stress concentration due to geometric incompatibilities between the circular column and the flat baseplate. To address this issue, stiffeners are commonly introduced to redistribute stresses and enhance the overall connection performance. Despite their widespread application, the effect of stiffener geometry on the protection of the main structural element, namely the column, has not been comprehensively studied. This study employs finite element analysis (FEA) to evaluate three stiffener configurations with F1 (triangular), F2 (rectangular), and F3 (chamfered) inn CHS-to-baseplate connections. The models were subjected to combined axial, shear, and bending loads, and the stress responses were examined in the column, baseplate, and stiffeners. The results indicate that F1 produced the lowest stress in the column (82.0 MPa), demonstrating superior efficiency in redistributing forces to other connection components. In contrast, F2 and F3 exhibited higher column stresses (123.1 MPa and 130.2 MPa, respectively), suggesting a higher risk of localized yielding. The baseplate stresses across all configurations were relatively similar (134–138 MPa), while the stiffeners showed varied levels of engagement depending on their geometry. Overall, the findings highlight the importance of stiffener design in safeguarding the column as the main structural member. The triangular stiffener (F1) proved to be the most effective in reducing stress concentration on the column, thereby enhancing the reliability and safety of CHS column-to-baseplate connections. Recommendations for future work include experimental validation, consideration of cyclic or seismic loading, and parametric optimization of stiffener geometry.

• Periodical: Construction Technologies and Architecture (Volume 24)
• Pages: 55-61
• DOI: https://doi.org/10.4028/p-V0huC9
• Online since: June 2026
• Authors: Dzul Fikri Muhammad*, Agil Fitri Handayani, Syahidah Fani Nastiti
• Keywords: Circular Hollow Section (CHS), Column-to-Baseplate Connection, Finite Element Analysis (FEA)

References

[1] Y. Huang, A. Kusbiantoro, A. H. Ismail, L. Lin, and N. Nindyawati, "Structural Damage Model of Steel Structure Connections with Initial Defects: A Review," Journal of Advanced Research in Applied Mechanics, vol. 121, no. 1, p.163–186, Jul. 2024.

DOI: 10.37934/aram.121.1.163186

[2] B. Chemseddine Mehdi, N. Boumechra, A. Missoum, and A. Bouchair, "Connection of a Steel Column Base Plate: Mechanical Behavior and Stiffening Effects," Civil Engineering Journal, vol. 8, no. 9, p.1764–1786, Sep. 2022.

DOI: 10.28991/CEJ-2022-08-09-02

[3] M. Al-Sharmootee, S. H. H. Lavassani, M. H. Hosseini, and M. Ali, "The cyclic performance of column base plate connections using different types of stiffeners," Canadian Journal of Civil Engineering, vol. 51, no. 4, p.449–460, Apr. 2024.

DOI: 10.1139/cjce-2023-0156

[4] P. Ebadi, M. Beheshti, and S. Hassani, "Effects of Stiffeners on Stress Distribution and Crack Control Below Base Plates Under Small Bidirectional Moments Using Nonlinear Static Analyses," QUID (Special Issue), p.1128–1136, 2017.

[5] S. Di Benedetto, M. Latour, and G. Rizzano, "Stiffness Prediction of Connections between CHS Tubes and Externally Welded I-Beams: FE Analyses and Analytical Study," Materials, vol. 13, no. 13, p.3030, Jul. 2020.

DOI: 10.3390/ma13133030

[6] H. Díaz, E. Nuñez, and C. Oyarzo-Vera, "Monotonic Response of Exposed Base Plates of Columns: Numerical Study and a New Design Method," Metals (Basel)., vol. 10, no. 3, p.396, Mar. 2020.

DOI: 10.3390/met10030396

[7] G. Della Corte and G. Cantisani, "A Component-Based Model for Base Plate Connections with Stiffeners," in XXIX Congresso CTA Milano, Milan: IRIS, 2024.

[8] Nindyawati, N. H. Mahenz, R. Sulaksitaningrum, and A. V Damayanti, "Effect of Link Length Variation on the Performance of Cold Formed Steel EBF Structures," IOP Conf. Ser. Earth Environ. Sci., vol. 1453, no. 1, p.012022, Feb. 2025.

DOI: 10.1088/1755-1315/1453/1/012022

[9] S. Ebrahimi, S. R. Mirghaderi, S. M. Zahrai, A. Najafi, and S. M. S. Otaghsaraie, "Experimental study on brace to HSS column connection using through-gusset plate," Eng. Struct., vol. 234, p.111948, May 2021.

DOI: 10.1016/j.engstruct.2021.111948

[10] R. Cloete and C. P. Roth, "Column base connections under compression and biaxial moments: Proposed design approach," J. Constr. Steel Res., vol. 184, p.106814, Sep. 2021.

DOI: 10.1016/j.jcsr.2021.106814

[11] P. A. Cozzens, G. A. Rassati, J. A. Swanson, and T. M. Burns, "Investigation of Steel Plate Washer Thickness for Column Anchor Rod Applications," Engineering Journal, vol. 61, no. 2, p.091–110, Apr. 2024.

DOI: 10.62913/engj.v61i2.1324

[12] M. Shafieifar and V. Khonsari, "A Numerical Investigation on Behavior of Column Base Plates with Different Configurations," Civil Engineering Journal, vol. 4, no. 6, p.1223–1239, Jul. 2018.

DOI: 10.28991/cej-0309169
