Chemical and Physical Interactions of Si-Rich Steel Substrates during Hot Dipping Experiments in a Molten Al-(25 wt%)Si Alloy

José Barros; Tanya Ros-Yáñez; Yvan Houbaert

doi:10.4028/www.scientific.net/DDF.237-240.1115

Paper Titles

Diffusion Studies in Earth and Planetary Sciences
p.1081

Scaling Properties of the Diffusion Process Underlying the Havriliak-Negami Relaxation Function
p.1093

Sedimentation of Substitutional Solute Atoms in Intermetallic Compound of Bi-Pb System under Ultra-Strong Gravitational Field
p.1101

Long-Term, Cyclic Oxidation Behaviour of Alumina- and Chromia-Forming Alloys
p.1107

Chemical and Physical Interactions of Si-Rich Steel Substrates during Hot Dipping Experiments in a Molten Al-(25 wt%)Si Alloy
p.1115

Nitrogen-Induced Formation of Nano-Structured Precipitations in the Ti-W-C-N System
p.1121

Mechanisms of Diffusion and Dissociation of E-Centers in Silicon
p.1129

MD Simulation Study of B1-B2 Phase Transition of KCl under High Pressure: Effects of Defects
p.1135

Auger Electron Spectroscopical Investigation of Interfacial Segregation in the Cu-Bi System
p.1141

HomeDefect and Diffusion ForumDefect and Diffusion Forum Vols. 237-240Chemical and Physical Interactions of Si-Rich...

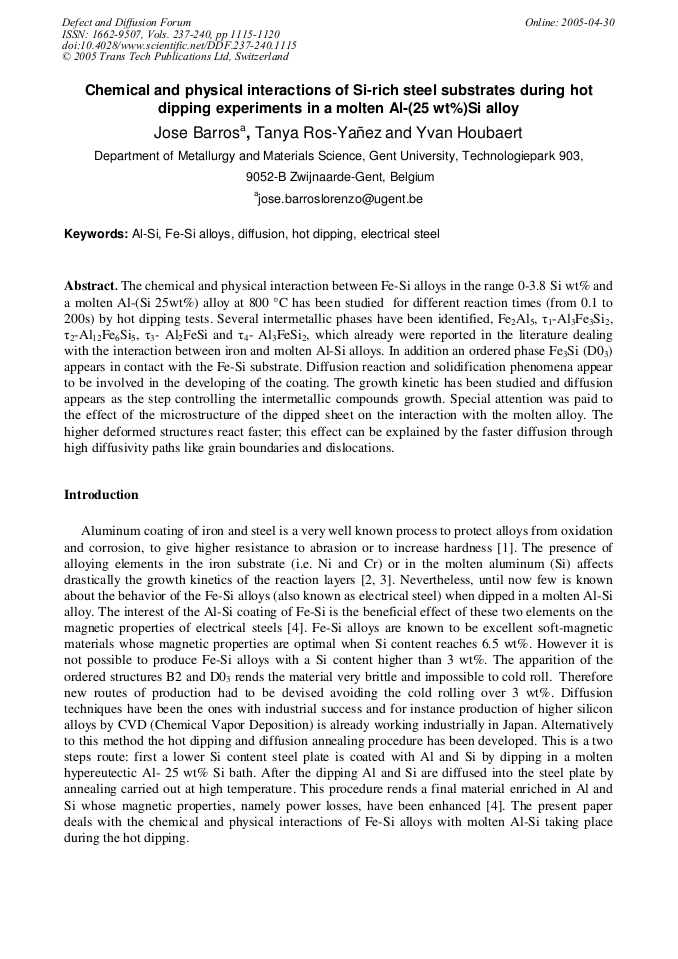

Chemical and Physical Interactions of Si-Rich Steel Substrates during Hot Dipping Experiments in a Molten Al-(25 wt%)Si Alloy

Abstract:

The chemical and physical interaction between Fe-Si alloys in the range 0-3.8 Si wt% and a molten Al-(Si 25wt%) alloy at 800 °C has been studied for different reaction times (from 0.1 to 200s) by hot dipping tests. Several intermetallic phases have been identified, Fe2Al5, τ1-Al3Fe3Si2, τ2-Al12Fe6Si5, τ3- Al2FeSi and τ4- Al3FeSi2, which already were reported in the literature dealing with the interaction between iron and molten Al-Si alloys. In addition an ordered phase Fe3Si (D03) appears in contact with the Fe-Si substrate. Diffusion reaction and solidification phenomena appear to be involved in the developing of the coating. The growth kinetic has been studied and diffusion appears as the step controlling the intermetallic compounds growth. Special attention was paid to the effect of the microstructure of the dipped sheet on the interaction with the molten alloy. The higher deformed structures react faster; this effect can be explained by the faster diffusion through high diffusivity paths like grain boundaries and dislocations.
