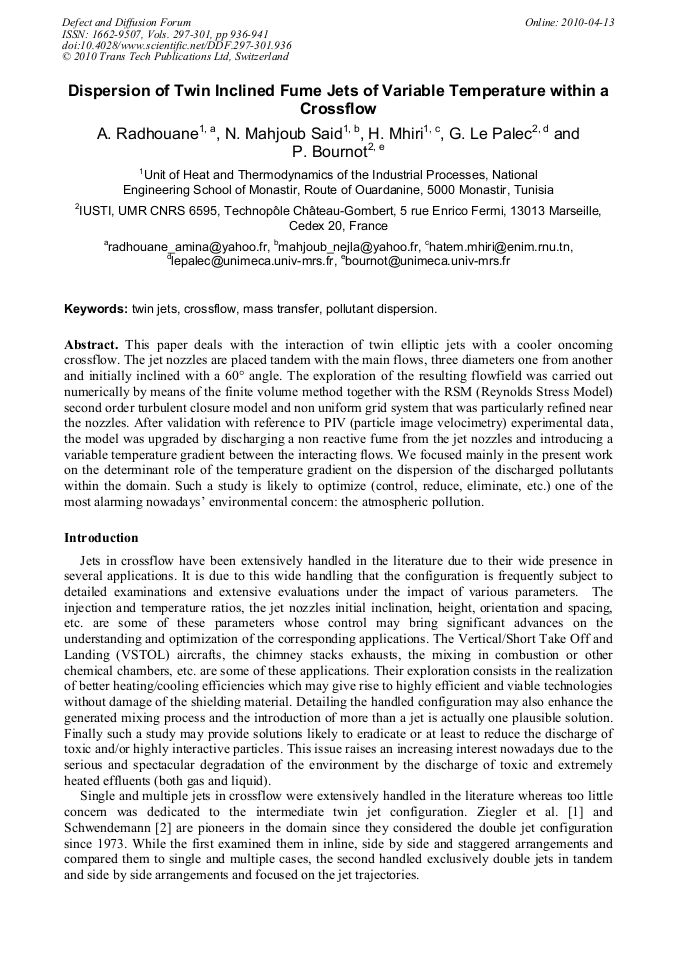

Dispersion of Twin Inclined Fume Jets of Variable Temperature within a Crossflow

Abstract:

This paper deals with the interaction of twin elliptic jets with a cooler oncoming crossflow. The jet nozzles are placed tandem with the main flows, three diameters one from another and initially inclined with a 60° angle. The exploration of the resulting flowfield was carried out numerically by means of the finite volume method together with the RSM (Reynolds Stress Model) second order turbulent closure model and non uniform grid system that was particularly refined near the nozzles. After validation with reference to PIV (particle image velocimetry) experimental data, the model was upgraded by discharging a non reactive fume from the jet nozzles and introducing a variable temperature gradient between the interacting flows. We focused mainly in the present work on the determinant role of the temperature gradient on the dispersion of the discharged pollutants within the domain. Such a study is likely to optimize (control, reduce, eliminate, etc.) one of the most alarming nowadays’ environmental concern: the atmospheric pollution.

• Periodical: Defect and Diffusion Forum (Volumes 297-301)
• Pages: 936-941
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.297-301.936
• Online since: April 2010
• Authors: Amina Radhouane, Nejla Mahjoub Said, Hatem Mhiri, Georges Le Palec, Philippe Bournot
• Keywords: Crossflow, Mass Transfer, Pollutant Dispersion, Twin Jet

References

[1] H. Ziegler and P.T. Wooler in: Analysis of stratified and closely spaced jets exhausting into a crossflow, National Aeronautics and space Administration, Washington, D.C. (1973).

[2] M.F. Schwendemann, A Wind Tunnel Investigation of Stratified Jets and Closely Spaced Jets Exhausting into a Cross Flow, Rept. NOR 73-98, Northrop Aircraft Division, Hawthorne, CA (1973).

[3] T. Ohanian, and H.R. Rahai in: Numerical investigations of multi turbulent jets in a crossflow, AIAA 2001-1049, 39th Aerospace Sciences meeting and exhibit, Reno, USA 8-11 January (2001).

DOI: 10.2514/6.2001-1049

[4] A. Radhouane, N. Mahjoub Saïd, H. Mhiri, G. Le Palec and P. Bournot in : Contribution à la modélisation de l'interaction entre deux jets inclinés et un écoulement transversal: refroidissement par jets, Proceedings of the 13 th JITH (Journées Internationales de Thermique), 28-30 August 2007 - Albi, France, pp.271-275.

DOI: 10.1007/s10652-015-9410-7

[5] A. Radhouane, N. Mahjoub Saïd, H. Mhiri, G. Le Palec and P. Bournot: Heat and Mass Transfer Vol. 45 (2008), p.805.

DOI: 10.1007/s00231-012-1108-5

[6] R. Schieste and B.E. Launder in : Modélisation et simulation des écoulements turbulents, Hermès, Paris, France, (1993).

[7] N. Mahjoub, H. Mhiri, S. Golli, G. Le Palec and P. Bournot in: Three dimensional numerical calculations of a jet in an external crossflow: application to pollutant dispersion, ASME J. of Heat Transfer, 2003, 125P.G. Clem, M. Rodriguez, J.A. Voigt and C.S. Ashley, U.S. Patent 6, 231, 666. (2001).

DOI: 10.1115/1.1560158
