Superplastic Behavior of B- and Gd-Containing β-Solidifying TiAl Based Alloy

Vitaliy Sokolovsky; Nikita Stepanov; Sergey Zherebtsov; Nadezhda Nochovnaya; Pavel Panin; Gennady Salishchev

doi:10.4028/www.scientific.net/DDF.385.131

Paper Titles

Superplastic Deformation Behavior of As-Received and Hydrogenated Ti₂AlNb Alloy
p.109

On Mechanisms of “Grain Boundary Sliding”, in Light of the Kaibyshev-Valiev Data on Two Limit “Non-Equilibrium” GB States in Deformed Metallic Materials
p.120

Continuous Dynamic Recrystallization in Dual-Phase Titanium Alloy in Superplasticity
p.126

Superplastic Behavior of B- and Gd-Containing β-Solidifying TiAl Based Alloy
p.131

Superplasticity in Fine Grain Ti-6Al-4V Alloy: Mechanical Behavior and Microstructural Evolution
p.137

Microstructure Evolution and Properties of Ti-6Al-4V Alloy Doped with Fe and Mo during Deformation at 800°C
p.144

Low-Temperature Superplasticity of the Ni-Based EK61 Superalloy and Application of this Effect to Obtain Sound Solid Phase Joints
p.150

Local Accommodation Processes of Superplastic Grain Boundary Sliding: Their Direct Observation in Two-Dimensional Grain Boundary Sliding
p.155

HomeDefect and Diffusion ForumDefect and Diffusion Forum Vol. 385Superplastic Behavior of B- and Gd-Containing...

Superplastic Behavior of B- and Gd-Containing β-Solidifying TiAl Based Alloy

Abstract:

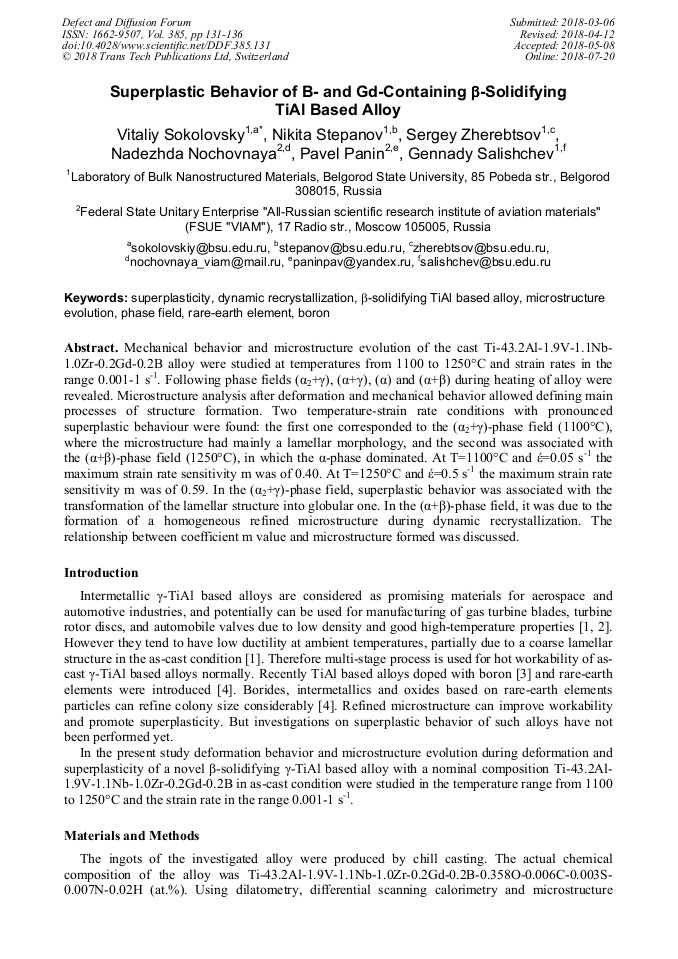

Mechanical behavior and microstructure evolution of the cast Ti-43.2Al-1.9V-1.1Nb-1.0Zr-0.2Gd-0.2B alloy were studied at temperatures from 1100 to 1250°С and strain rates in the range 0.001-1 s^-1. Following phase fields (α₂+γ), (α+γ), (α) and (α+β) during heating of alloy were revealed. Microstructure analysis after deformation and mechanical behavior allowed defining main processes of structure formation. Two temperature-strain rate conditions with pronounced superplastic behaviour were found: the first one corresponded to the (α₂+γ)-phase field (1100°C), where the microstructure had mainly a lamellar morphology, and the second was associated with the (α+β)-phase field (1250°C), in which the α-phase dominated. At T=1100°C and έ=0.05 s^-1 the maximum strain rate sensitivity m was of 0.40. At T=1250°C and έ=0.5 s^-1 the maximum strain rate sensitivity m was of 0.59. In the (α₂+γ)-phase field, superplastic behavior was associated with the transformation of the lamellar structure into globular one. In the (α+β)-phase field, it was due to the formation of a homogeneous refined microstructure during dynamic recrystallization. The relationship between coefficient m value and microstructure formed was discussed.

You might also be interested in these eBooks

Superplasticity in Advanced Materials - ICSAM 2018

View Preview

Info:

Periodical:

Defect and Diffusion Forum (Volume 385)

Pages:

131-136

DOI:

https://doi.org/10.4028/www.scientific.net/DDF.385.131

Citation:

Cite this paper

Online since:

July 2018

Authors:

Vitaliy Sokolovsky*, Nikita Stepanov, Sergey Zherebtsov, Nadezhda Nochovnaya, Pavel Panin, Gennady Salishchev

Keywords:

Boron, Dynamic Recrystallization, Microstructure Evolution, Phase Field, Rare-Earth Element, Superplasticity, β-Solidifying TiAl Based Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] F. Appel, J.D.H. Paul, M. Oehring, Gamma Titanium Aluminide Alloys: Science and Technology, Wiley, Weinheim, (2012).

Google Scholar

[2] H. Clemens, S. Mayer, Design, processing, microstructure, properties, and applications of advanced intermetallic TiAl alloys, Adv. Eng. Mater. 15 (2013) 191–215.

DOI: 10.1002/adem.201200231

Google Scholar

[3] E. Schwaighofer, H. Clemens, J. Lindemann, A. Stark, S. Mayer, Hot-working behavior of an advanced intermetallic multi-phase γ-TiAl based alloy, Mater. Sci. Eng. A. 614 (2014) 297–310.

DOI: 10.1016/j.msea.2014.07.040

Google Scholar

[4] X. Wang, R. Luo, F. Liu, F. Zhu, S. Song, B. Chen, X. Zhang, J. Zhang, M. Chen, Characterization of Gd-rich precipitates in a fully lamellar TiAl alloy. Scripta Materialia 137 (2017) 50–54.

DOI: 10.1016/j.scriptamat.2017.04.038

Google Scholar

[5] V.S. Sokolovsky, N.D. Stepanov, S.V. Zherebtsov, N.A. Nochovnaya, P.V. Panin, M.A. Zhilyakova, A.A. Popov, G.A. Salishchev, Hot deformation behavior and processing maps of B and Gd containing β-solidified TiAl based alloy. Intermetallics 94 (2018).

DOI: 10.1016/j.intermet.2018.01.004

Google Scholar

[6] E. Schwaighofer, H. Clemens, J. Lindemann, A. Stark, S. Mayer, Hot-working behavior of an advanced intermetallic multi-phase γ-TiAl based alloy, Mater. Sci. Eng. A. 614 (2014) 297–310.

DOI: 10.1016/j.msea.2014.07.040

Google Scholar

[7] B. Liu, Y. Liu, Y.P. Li, W. Zhang, A. Chiba, Thermomechanical characterization of β-stabilized Ti-45Al-7Nb-0.4W-0.15B alloy, Intermetallics. 19 (2011) 1184–1190.

DOI: 10.1016/j.intermet.2011.03.021

Google Scholar

[8] G.A. Salishchev, O.N. Senkov, R.M. Imayev, V.M. Imayev, M.R. Shagiev, A. V Kuznetsov, F. Appel, M. Oehring, O.A. Kaibyshev, F.H. Froes, Processing and Deformation Behavior of Gamma TiAl Alloys with Fine-Grained Equiaxed Microstructures, Adv. Perform. Mater. 6 (1999).

DOI: 10.1023/a:1008718724229

Google Scholar

[9] H.Z. Niu, Y.Y. Chen, S.L. Xiao, F.T. Kong, C.J. Zhang, High temperature deformation behaviors of Ti-45Al-2Nb-1.5V-1Mo-Y alloy, Intermetallics. 19 (2011) 1767–1774.

DOI: 10.1016/j.intermet.2011.07.025

Google Scholar

[10] F.J. Humphreys, M. Hatherly, Recrystallization and related annealing phenomena, Elsevier, Oxford, (2004).

Google Scholar

[11] G.A. Salishchev, R.M. Imayev, O.N. Senkov, V.M. Imayev, N.K. Gabdullin, M.R. Shagiev, A. V Kuznetsov, F.H. Froes, Formation of a submicrocrystalline structure in TiAl and Ti3Al intermetallics by hot working, Mater. Sci. Eng. A. 286 (2000).

DOI: 10.1007/978-94-011-4062-1_7

Google Scholar

[12] R.M. Imayev, O.A. Kaibyshev, G.A. Salishchev, Mechanical behavior of fine grained TiAl intermetallic compound-I. Superplasticity, Acta Metallurgica. 40 (1992) 581-587.

DOI: 10.1016/0956-7151(92)90407-6

Google Scholar
