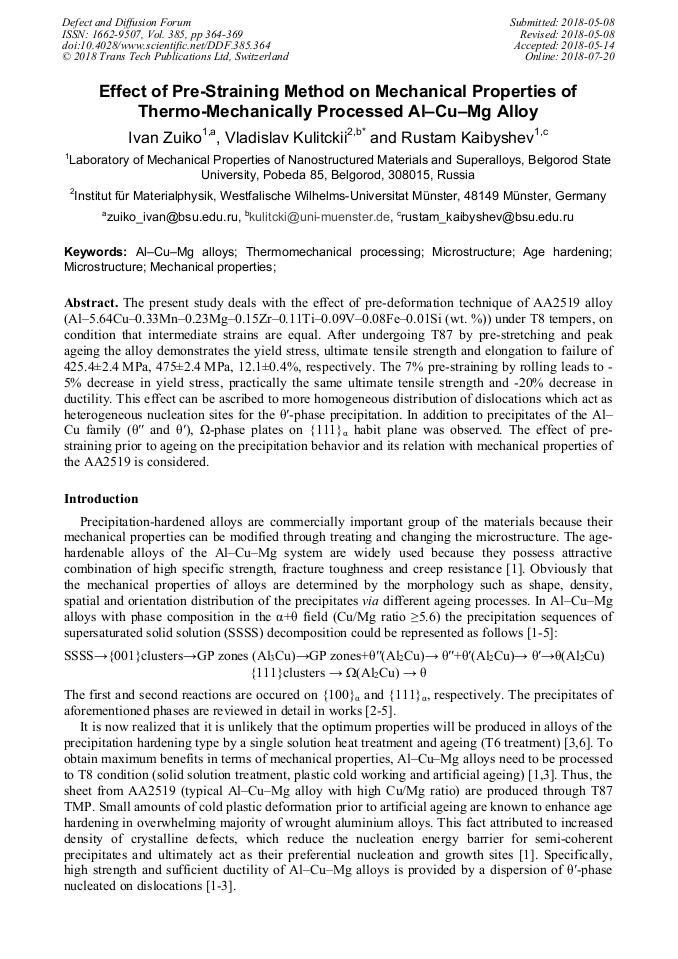

Effect of Pre-Straining Method on Mechanical Properties of Thermo-Mechanically Processed Al-Cu-Mg Alloy

Abstract:

The present study deals with the effect of pre-deformation technique of AA2519 alloy (Al–5.64Cu–0.33Mn–0.23Mg–0.15Zr–0.11Ti–0.09V–0.08Fe–0.01Si (wt. %)) under T8 tempers, on condition that intermediate strains are equal. After undergoing T87 by pre-stretching and peak ageing the alloy demonstrates the yield stress, ultimate tensile strength and elongation to failure of 425.4±2.4 MPa, 475±2.4 MPa, 12.1±0.4%, respectively. The 7% pre-straining by rolling leads to-5% decrease in yield stress, practically the same ultimate tensile strength and-20% decrease in ductility. This effect can be ascribed to more homogeneous distribution of dislocations which act as heterogeneous nucleation sites for the θ′-phase precipitation. In addition to precipitates of the Al–Cu family (θ′′ and θ′), Ω-phase plates on {111}_α habit plane was observed. The effect of pre-straining prior to ageing on the precipitation behavior and its relation with mechanical properties of the AA2519 is considered.

• Periodical: Defect and Diffusion Forum (Volume 385)
• Pages: 364-369
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.385.364
• Online since: July 2018
• Authors: Ivan Zuiko, Vladislav Kulitckii*, Rustam Kaibyshev
• Keywords: Age Hardening, Al-Cu-Mg Alloys, Mechanical Properties, Microstructure, Thermomechanical Processing (TMP)

References

[1] I. Polmear, D. StJohn, J.-F. Nie, M. Qian, Light Alloys 5th Edition: Metallurgy of the Light Metals, 5th ed., Butterworth-Heinemann, (2017).

DOI: 10.1016/b978-0-08-099431-4.00001-4

[2] S.C. Wang, M.J. Starink, Precipitates and intermetallic phases in precipitation hardening Al–Cu–Mg–(Li) based alloys, Int. Mater. Rev. 50 (2005) 193–215.

DOI: 10.1179/174328005x14357

[3] I.S. Zuiko, M.R. Gazizov, R.O. Kaibyshev, Effect of thermomechanical treatment on the microstructure, phase composition, and mechanical properties of Al–Cu–Mn–Mg–Zr alloy, Phys. Met. Metallogr. 117 (2016) 906-919.

DOI: 10.1134/s0031918x16090088

[4] S.P. Ringer, K. Hono, I.. J. Polmear, T. Sakurai, Nucleation of precipitates in aged Al–Cu–Mg–(Ag) alloys with high Cu:Mg ratios, Acta Mater. 44 (1996) 1883-1898.

DOI: 10.1016/1359-6454(95)00314-2

[5] V.A. Phillips, High resolution electron microscope observations on precipitation in Al-3.0% Cu alloy, Acta Metall. 23 (1975) 751-767.

DOI: 10.1016/0001-6160(75)90058-9

[6] I. Zuiko, M. Gazizov, R. Kaibyshev, Effect of cold plastic deformation on mechanical properties of aluminum alloy 2519 after ageing, Mater. Sci. For. 794-796 (2014) 888-893.

DOI: 10.4028/www.scientific.net/msf.794-796.888

[7] I. Zuiko, R. Kaibyshev, Deformation structures and strengthening mechanisms in an Al-Cu alloy subjected to extensive cold rolling, Mater. Sci. Eng. A 702 (2017) 53-64.

DOI: 10.1016/j.msea.2017.07.001

[8] D. Yuzbekova, A. Mogucheva, D. Zhemchuzhnikova, T. Lebedkina, M. Lebyodkin, R. Kaibyshev, Effect of microstructure on continuous propagation of the Portevin-Le Chatelier deformation bands, Int. J. Plast. 96 (2017) 210-226.

DOI: 10.1016/j.ijplas.2017.05.004

[9] M. Gazizov, R. Kaibyshev, Effect of pre-straining on the aging behavior and mechanical properties of an Al-Cu-Mg-Ag alloy, Mater. Sci. Eng. A 625 (2015) 119-130.

DOI: 10.1016/j.msea.2014.11.094

[10] J. Costa, D.G. Cram, L. Bourgeois, T.J. Bastow, A.J. Hill, C.R. Hutchinson, On the strengthening response of aluminum alloys containing shear-resistant plate-shaped precipitates, Acta Mater. 56 (2008) 6109-6122.

DOI: 10.1016/j.actamat.2008.08.023

[11] J.F. Nie, B.C. Muddle, Strengthening of an Al–Cu–Sn alloy by deformation-resistant precipitate plates, Acta Mater. 56 (2008) 3490-3501.

DOI: 10.1016/j.actamat.2008.03.028
