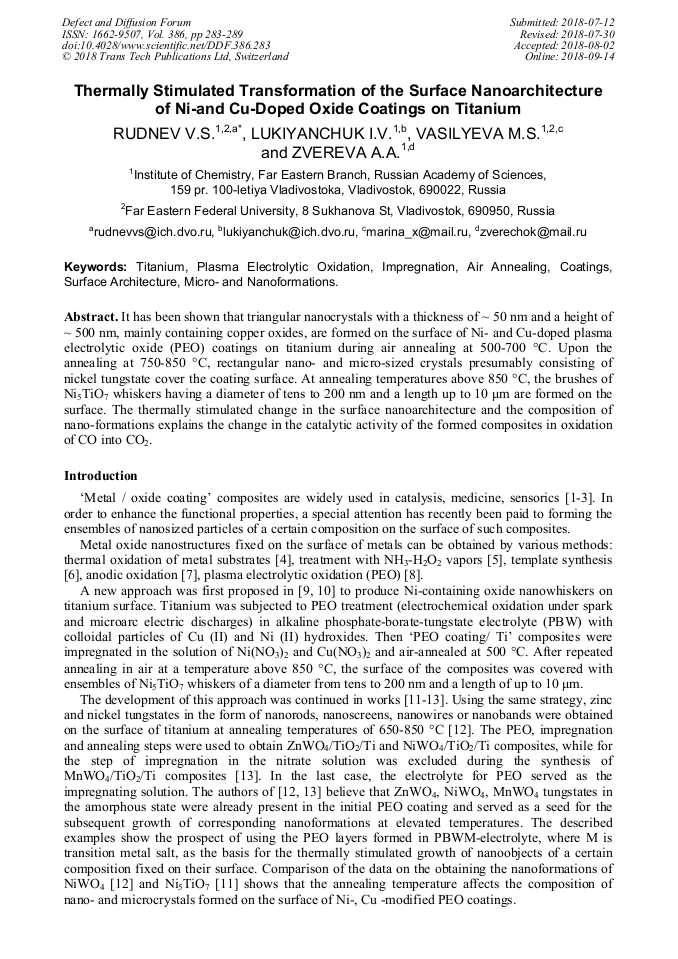

Thermally Stimulated Transformation of the Surface Nanoarchitecture of Ni-and Cu-Doped Oxide Coatings on Titanium

Abstract:

It has been shown that triangular nanocrystals with a thickness of ~ 50 nm and a height of ~ 500 nm, mainly containing copper oxides, are formed on the surface of Ni-and Cu-doped plasma electrolytic oxide (PEO) coatings on titanium during air annealing at 500-700 °C. Upon the annealing at 750-850 °C, rectangular nanoand micro-sized crystals presumably consisting of nickel tungstate cover the coating surface. At annealing temperatures above 850 °C, the brushes of Ni₅TiO₇ whiskers having a diameter of tens to 200 nm and a length up to 10 μm are formed on the surface. The thermally stimulated change in the surface nanoarchitecture and the composition of nanoformations explains the change in the catalytic activity of the formed composites in oxidation of CO into CO₂.

• Periodical: Defect and Diffusion Forum (Volume 386)
• Pages: 283-289
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.386.283
• Online since: September 2018
• Authors: Vladimir S. Rudnev*, I.V. Lukiyanchuk, Marina S. Vasilyeva, A.A. Zvereva
• Keywords: Air Annealing, Coatings, Impregnation, Microformations, Nanoformations, Plasma Electrolytic Oxidation, Surface Architecture, Titanium

References

[1] X.W. Yu, L. Chen, Y.Y. He, Z.C. Yan, In-situ fabrication of catalytic metal oxide films in microchannel by plasma electrolytic oxidation, Surf. Coat. Technol. 269 (2015) 30–35.

DOI: 10.1016/j.surfcoat.2014.12.037

[2] A.R. Rafieerad, M.R. Ashra, R. Mahmoodian, A.R. Bushroa, Surface characterization and corrosion behavior of calcium phosphate-base composite layer on titanium and its alloys via plasma electrolytic oxidation: A review paper, Materials Science and Engineering C. 57 (2015).

DOI: 10.1016/j.msec.2015.07.058

[3] R.R. Zhao, M.Z. Xu, J.A. Wang, G.N. Chen, A pH sensor based on the TiO2 nanotube array modified Ti electrode, Electrochim. Acta. 55 (20) (2010) 5647-5651.

DOI: 10.1016/j.electacta.2010.04.102

[4] Y. Sun, R. Xu, J.Y. Yang, L. He, J.C. Nie, R.F. Dou, W. Zhou, L. Guo, Scanning tunnelling microscope studies of angstrom-scale Co3O4 nanowires, Nanotechnol. 21 (33) (2010) 335605(1-6).

DOI: 10.1088/0957-4484/21/33/335605

[5] C.A. Neyertz, A.D. Gallo, M.A. Ulla, J.M. Zamaro, Nanostructured CuOx coatings onto Cu foils: Surface growth by the combination of gas-phase treatments, Surf. Coat. Technol. 285 (2016) 262–269.

DOI: 10.1016/j.surfcoat.2015.12.001

[6] C.-C. Chen, D. Fang, Z.P. Luo, Fabrication and characterization of highly-ordered valve-metal oxide nanotubes and their derivative nanostructures, Rev. Nanosci. Nanotechnol. 1 (2012) 229-256.

DOI: 10.1166/rnn.2012.1020

[7] R. Hahn, J.G. Brunner, J. Kunze, P. Schmuki, S. Virtanen, A novel approach for the formation of Mg(OH)2/MgO nanowhiskers on magnesium: Rapid anodization in chloride containing solutions, Electrochem. Commun. 10 (2) (2008) 288-292.

DOI: 10.1016/j.elecom.2007.12.007

[8] M.R. Bayati, R. Molaei, H.R. Zargar, A. Kajbafvala, S. Zanganeh, A facile method to grow V-doped TiO2 hydrophilic layers with nano-sheet morphology, Mater. Lett. 64 (2010) 2498–2501.

DOI: 10.1016/j.matlet.2010.08.037

[9] X. Jiang, L. Zhang, S. Wybornov, T. Staedler, D. Hein, F. Wiedenmann, W. Krumm, V. Rudnev, I. Lukiyanchuk, Highly efficient nanoarchitectured Ni5TiO7 catalyst for biomass gasification, ACS Appl. Mater. Interfaces 4 (8) (2012) 4062–4066.

DOI: 10.1021/am3008449

[10] V.S. Rudnev, S. Wybornov, I.V. Lukiyanchuk, T. Staedler, X. Jiang, A.Yu. Ustinov, M.S. Vasilyeva, Thermal behavior of Ni- and Cu-containing plasma electrolytic oxide coatings on titanium, Appl. Surf. Sci. 258 (2012) 8667– 8672.

DOI: 10.1016/j.apsusc.2012.05.071

[11] Y.A. Jiang, B.D. Liu, L.N. Yang, B. Yang, X.Y. Liu, L.S. Liu, C. Weimer, X. Jiang, Size-controllable Ni5TiO7 nanowires as promising catalysts for CO oxidation, Sci. Rep. 5 (2015) 14330(1-10).

DOI: 10.1038/srep14330

[12] Y.N. Jiang, B. Liu, Z. Zhai, X. Liu, B. Yang, L. Liu, X. Jiang, A general strategy toward the rational synthesis of metal tungstate nanostructures using plasma electrolytic oxidation method, App. Surf. Sci. 356 (2015) 273–281.

DOI: 10.1016/j.apsusc.2015.08.080

[13] Y.N. Jiang, B.D. Liu, W.J. Yang, B. Yang, X.Y. Liu, X.L. Zhang, M.A. Mohsin, X. Jiang, New strategy to the in-situ synthesis of single-crystalline MnWO4/TiO2 photocatalysts for efficient and cyclic photodegradation of organic pollutant, Cryst. Eng. Comm. 18 (2016).

DOI: 10.1039/c5ce02445e

[14] V.B. Nalbandyan, Ni5TiO7, is Ni5TiO4(BO3)2, J. Solid State Chem. 249 (2017) 27-28.

[15] М.S. Vasilyeva, V.S. Rudnev, F. Wiedenmann, S. Wybomov, T.P. Yarovaya, X. Jiang, Thermal behavior and catalytic activity in naphthalene destruction of Ce-, Zr- and Mn-containing oxide layers on titanium, Appl. Surf. Sci. 258 (2) (2011) 719-726.

DOI: 10.1016/j.apsusc.2011.07.127

[16] V.S. Rudnev, I.V. Malyshev, I.V. Lukiyanchuk, V.G. Kuryavyi, Composition, surface structure, and thermal behavior of ZrO2 + TiO2/Ti and ZrO2 + CeOx + TiO2 composites formed by plasma-electrolytic oxidation, Prot. Met. Phys. Chem. Surf. 48 (4) (2012).

DOI: 10.1134/s207020511203015x

[17] V.S. Rudnev, I.V. Lukiyanchuk, M.V. Adigamova, V.P. Morozova, I.A. Tkachenko, The effect of nanocrystallites in the pores of PEO coatings on their magnetic properties, Surf. Coat. Technol. 269 (2015) 23–29.

DOI: 10.1016/j.surfcoat.2015.01.073
