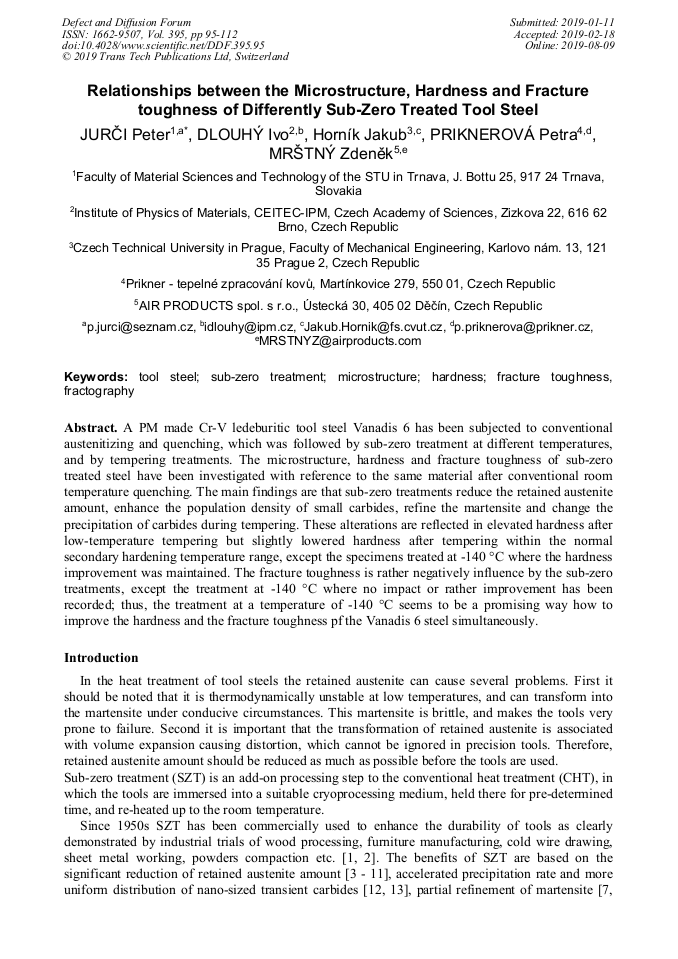

Relationships between the Microstructure, Hardness and Fracture Toughness of Differently Sub-Zero Treated Tool Steel

Abstract:

A PM made Cr-V ledeburitic tool steel Vanadis 6 has been subjected to conventional austenitizing and quenching, which was followed by sub-zero treatment at different temperatures, and by tempering treatments. The microstructure, hardness and fracture toughness of sub-zero treated steel have been investigated with reference to the same material after conventional room temperature quenching. The main findings are that sub-zero treatments reduce the retained austenite amount, enhance the population density of small carbides, refine the martensite and change the precipitation of carbides during tempering. These alterations are reflected in elevated hardness after low-temperature tempering but slightly lowered hardness after tempering within the normal secondary hardening temperature range, except the specimens treated at-140 °C where the hardness improvement was maintained. The fracture toughness is rather negatively influence by the sub-zero treatments, except the treatment at-140 °C where no impact or rather improvement has been recorded; thus, the treatment at a temperature of-140 °C seems to be a promising way how to improve the hardness and the fracture toughness pf the Vanadis 6 steel simultaneously.

• Periodical: Defect and Diffusion Forum (Volume 395)
• Pages: 95-112
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.395.95
• Online since: August 2019
• Authors: Peter Jurči*, Ivo Dlouhý, Jakub Horník, Petra Priknerová, Zdeněk Mrštný
• Keywords: Fractography, Fracture Toughness, Hardness, Microstructure, Sub-Zero Treatment, Tool Steel

References

[1] P.F. Stratton, Optimising nano-carbide precipitation in tool steels. Mater. Sci. Eng. A449 – 451 (2007) 809 – 812.

DOI: 10.1016/j.msea.2006.01.162

[2] T.P. Sweeney, Deep cryogenics: the great cold debate. Heat Treating, 2 (1986) 28 – 33.

[3] D. Das, K.K. Ray, Structure-property correlation of sub-zero treated AISI D2 steel. Mater. Sci. Eng. A541 (2012) 45 – 60.

DOI: 10.1016/j.msea.2012.01.130

[4] D.N. Collins, Deep cryogenic treatment of tool steels - a review, Heat Treat. Met. 2 (1996) 40 – 42.

[5] D. Das, A.K. Dutta, K.K. Ray, Sub-zero treatments of AISI D2 steel: Part I. Microstructure and hardness. Mater. Sci. Eng. A527 (2010) 2182 – 2193.

DOI: 10.1016/j.msea.2009.10.070

[6] P. Jurči, M. Kusý, J. Ptačinová, V. Kuracina, P. Priknerová, Long-term Sub-zero Treatment of P/M Vanadis 6 Ledeburitic Tool Steel – a Preliminary Study. Manuf. Technol. 15 (2015) 41 – 47.

DOI: 10.21062/ujep/x.2015/a/1213-2489/mt/15/1/41

[7] P. Jurči, M. Dománková, L. Čaplovič, J. Ptačinová, J. Sobotová, P. Salabová, O. Prikner, B. Šuštaršič, D. Jenko, Microstructure and hardness of sub-zero treated and no tempered P/M Vanadis 6 ledeburitic tool steel. Vacuum 111 (2015) 92 – 101.

DOI: 10.1016/j.vacuum.2014.10.004

[8] A.I. Tyshchenko, W. Theisen, A. Oppenkowski, S. Siebert, O.N. Razumov, A.P. Skoblik, V.A. Sirosh, J.N. Petrov, V.G. Gavriljuk, Low-temperature martensitic transformation and deep cryogenic treatment of a tool steel. Mater. Sci. Eng. A527 (2010) 7027 – 7039.

DOI: 10.1016/j.msea.2010.07.056

[9] H. Li, W. Tong, J. Cui, H. Zhang, L. Chen, L. Zuo, The influence of deep cryogenic treatment on the properties of high-vanadium alloy steel, Mater. Sci. Eng. A662 (2016) 356 – 362.

DOI: 10.1016/j.msea.2016.03.039

[10] M. El Mehtedi, P. Ricci, L. Drudi, S. El Mohtadi, M. Cabibbo, S. Spigarelli, Analysis of the Effect of Deep Cryogenic Treatment on the Hardness and Microstructure of X30 CrMoN 15 1 Steel, Mater. Des. 33 (2012) 136 – 144.

DOI: 10.1016/j.matdes.2011.07.030

[11] W.N. Putra, P. Pramaditya, P. Pramuka, M.A. Mochtar, Effect of Sub-Zero Treatment on Microstructures, Mechanical Properties, and Dimensional Stability of AISI D2 Cold Work Tool Steel, Mater. Sci. Forum 929 (2018) 136 – 141.

DOI: 10.4028/www.scientific.net/msf.929.136

[12] F. Meng, K. Tagashira, R. Azuma, H. Sohma, Role of Eta-carbide Precipitation´s in the Wear Resistance Improvements of Fe-12Cr-Mo-V-1.4C Tool Steel by Cryogenic Treatment. ISIJ Int. 34 (1994) 205 - 210.

DOI: 10.2355/isijinternational.34.205

[13] P. Jurči, M. Dománková, M. Hudáková, J. Ptačinová, M. Pašák, P. Palček, Characterization of microstructure and tempering response of conventionally quenched, short- and long-time sub-zero treated PM Vanadis 6 ledeburitic tool steel. Mater. Charact. 134 (2017) 398 – 415.

DOI: 10.1016/j.matchar.2017.10.029

[14] J. Sobotová, P. Jurči, I. Dlouhý, The effect of sub-zero treatment on microstructure, fracture toughness, and wear resistance of Vanadis 6 tool steel. Mater. Sci. Eng. A652 (2016) 192 – 204.

DOI: 10.3390/met8121047

[15] D. Das, R. Sarkar, A.K. Dutta, K.K. Ray, Influence of sub-zero treatments on fracture toughness of AISI D2 steel. Mater. Sci. Eng. A528 (2010) 589 – 603.

DOI: 10.1016/j.msea.2010.09.057

[16] P. Jurči, M. Dománková, J. Ptačinová, M. Pašák, M. Kusý, P. Priknerová, Investigation of the Microstructural Changes and Hardness Variations of Sub-Zero Treated Cr-V Ledeburitic Tool Steel Due to the Tempering Treatment. J. Mater. Eng. Perform. 27 (2018) 1514 – 1529.

DOI: 10.1007/s11665-018-3261-6

[17] K.H. Schwalbe, On the influence of microstructure on crack propagation mechanisms and fracture toughness of metallic material, Eng. Fract. Mech. 9 (1977) 795 – 832.

DOI: 10.1016/0013-7944(77)90004-2

[18] A. Kokosza, J. Pacyna, Effect of retained austenite on the fracture toughness of tempered tool steel, Arch. Mater. Sci. Eng. 31 (2) (2008) 87 – 90.

[19] B. Podgornik, B. Zužek, V. Leskovsek, Experimental evaluation of tool steel fracture toughness using circumferentially notched and pre-cracked tension bar specimen, Mater. Perform. Charact. 3 (3) (2014) 1 – 17.

DOI: 10.1520/mpc20130045

[20] B. Podgornik, M. Sedlacek, M. Čekada, S. Jacobson, B. Zajec, Impact of fracture toughness on surface properties of PVD coated cold work tool steel, Surf. Coat. Technol. 277 (2015) 144 – 150.

DOI: 10.1016/j.surfcoat.2015.07.021

[21] H. Berns, C. Broeckmann, Fracture of hot formed ledeburitic chromium steels, Eng. Fract. Mech. 58 (4) (1997) 311 – 325.

DOI: 10.1016/s0013-7944(97)00118-5

[22] J. Ptačinová, V. Sedlická, M. Hudáková, I. Dlouhý, P. Jurči, Microstructure – Toughness relationships in sub-zero treated and tempered Vanadis 6 steel compared to conventional treatment. Mater. Sci. Eng., A702 (2017) 241 – 258.

DOI: 10.1016/j.msea.2017.07.007

[23] J. Ptačinová, P. Jurči, I. Dlouhý, Fracture toughness of ledeburitic Vanadis 6 steel after sub-zero treatment for 17 H and double tempering. Mater. Tehnol. 51 (2017) 729 – 733.

DOI: 10.17222/mit.2016.118

[24] V.G. Gavriljuk, W. Theisen, V.V. Sirosh, E.V. Polshin, A. Kortmann, G.S. Mogilny, Yu.N. Petrov, Y.V. Tarusin, Low-temperature martensitic transformation in tool steels in relation to their deep cryogenic treatment. Acta Mater. 61 (2013) 1705 – 1715.

DOI: 10.1016/j.actamat.2012.11.045

[25] M. Pašák, Study of the phase transformations kinetics in high alloy systems based on iron. PhD Thesis, Trnava: Faculty of Materials and Technology, Trnava, 2015. (In Czech).

[26] P. Bílek, J. Sobotová, P. Jurči, Evaluation of the Microstructural Changes in Cr-V Ledeburitic Tool Steel Depending on the Austenitization Temperature, Mater. Tehnol. 45 (2011) 489 – 493.

[27] ISO 12135: 2010. Metallic materials – determination of plane strain fracture toughness.

[28] M. Pellizzari, A. Molinari, Deep cryogenic treatment of cold work tool steel, in: J. Bergstrom, G. Fredriksson, M. Johansson, O. Kotik, F. Thuvander (Eds.), Proc. of the 6th Int. Tooling Conf, Karlstad University, Sweden, 2002, 547 – 558.

[29] D. Das, K.K. Ray, A.K. Dutta, Influence of temperature of sub-zero treatments on the wear behaviour of die steel, Wear 267 (2009) 1361 – 1370.

DOI: 10.1016/j.wear.2008.11.029

[30] C.H. Surberg, P. Stratton, K. Lingenhoele, The effect of some heat treatment parameters on the dimensional stability of AISI D2, Cryogenics 48 (2008) 42 – 47.

DOI: 10.1016/j.cryogenics.2007.10.002

[31] K. Amini, A. Akhbarizadeh, S. Javadpour, Investigating the effect of holding duration on the microstructure of 1.2080 tool steel during the deep cryogenic treatment, Vacuum 86 (2012) 1534 – 1540.

DOI: 10.1016/j.vacuum.2012.02.013

[32] K. Amini, A. Akhbarizadeh, S. Javadpour, Effect of deep cryogenic treatment on the formation of nano-sized carbides and the wear behaviour of D2 tool steel, Int. J. Miner. Metall. Mater. 19 (2012) 795 – 799.

DOI: 10.1007/s12613-012-0630-2

[33] A. Akhbarizadeh, S. Javadpour, Investigating the effect of as-quenched vacancies in the final microstructure of 1.2080 tool steel during the deep cryogenic heat treatment, Mater. Lett. 93 (2013) 247 – 250.

DOI: 10.1016/j.matlet.2012.11.081

[34] A. Akhbarizadeh, A. Shafyei, M.A. Golozar, Effects of cryogenic treatment on wear behaviour of D6 tool steel, Mater. Des. 30 (2009) 3259 – 3264.

DOI: 10.1016/j.matdes.2008.11.016

[35] D.N. Collins, Cryogenic treatment of tool steels, Adv. Mater. Process. 12 (1998) 24 – 29.

[36] S. Li, N. Min, L. Deng, X. Wu, Y. Min, H. Wang, Influence of deep cryogenic treatment on internal friction behaviour in the process of tempering, Mater. Sci. Eng. A528 (2011) 1247 – 1250.

DOI: 10.1016/j.msea.2010.10.012

[37] P. Jurči, J. Ptačinová, M. Hudáková, M. Dománková, M. Kusý, M. Sahul, Simultaneous Improvement of Wear Performance and Toughness of Ledeburitic Tool Steels by Sub-zero Treatment. In: Proc. of the 20th Int. Conf. on Metal Materials and Engineering. Copenhagen, Denmark, June 11 – 12, 2018, Ed. Waset, Copenhagen, 1059 – 1066.

DOI: 10.4028/www.scientific.net/kem.647.9

[38] A. Kulmburg, E. Putzgruber, F. Korntheurer, E. Kaiser, Beitrag zum Tiefkühlen von Schnellarbeitsstaehlen, HTM J. Heat Treat. Mater. 47 (1992) 318 – 323 (In German).

[39] A. Molinari, M. Pellizzari, S. Gialanella, G. Straffelini, K.H. Stiasny, Effect of deep cryogenic treatment on mechanical properties of tool steels, J. Mater. Proc. Technol. 118 (2001) 350 – 355.

DOI: 10.1016/s0924-0136(01)00973-6

[40] D.N. Collins, J. Dormer, Deep Cryogenic Treatment of a D2 Cold-Work Tool Steel, Heat Treat. Met. 24 (1997) 71 - 74.

[41] Y.M. Rhyim, S.H. Han, Y.S. Na, J.H. Lee, Effect of deep cryogenic treatment on carbide precipitation and mechanical properties of tool steel, Solid State Phenom. 118 (2006) 9 – 14.

DOI: 10.4028/www.scientific.net/ssp.118.9

[42] S.K. Putatunda, Fracture toughness of a high carbon and high silicon steel, Mater. Sci. Eng. A297 (2001) 31 – 43.

[43] N. Hansen, Hall-Petch relation and boundary strengthening, Scr. Mater. 51 (2004), 801 – 806.

DOI: 10.1016/j.scriptamat.2004.06.002
