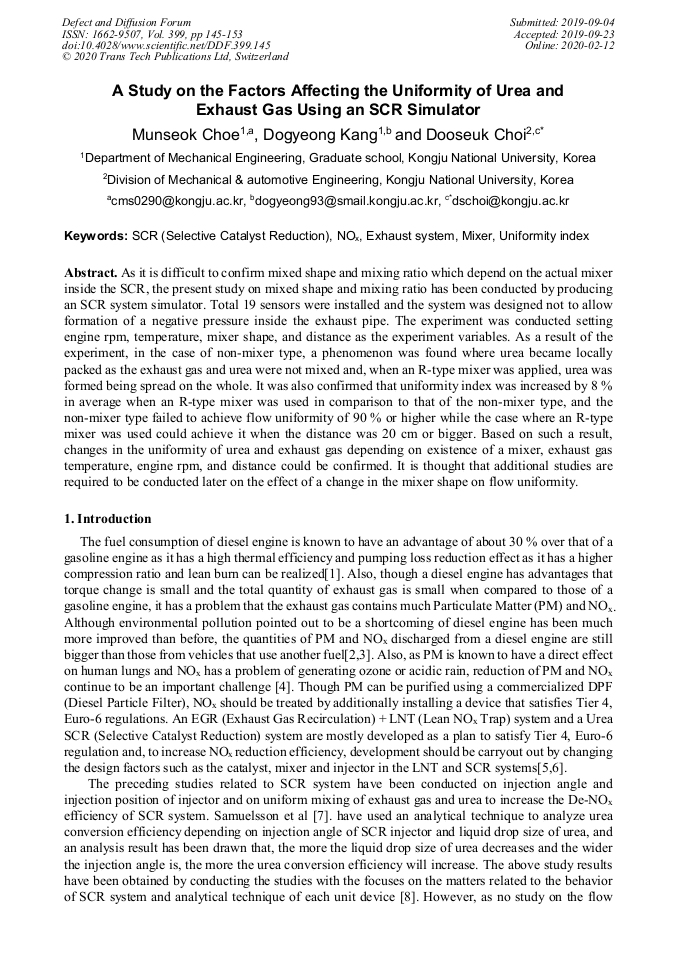

A Study on the Factors Affecting the Uniformity of Urea and Exhaust Gas Using an SCR Simulator

Abstract:

As it is difficult to confirm mixed shape and mixing ratio which depend on the actual mixer inside the SCR, the present study on mixed shape and mixing ratio has been conducted by producing an SCR system simulator. Total 19 sensors were installed and the system was designed not to allow formation of a negative pressure inside the exhaust pipe. The experiment was conducted setting engine rpm, temperature, mixer shape, and distance as the experiment variables. As a result of the experiment, in the case of non-mixer type, a phenomenon was found where urea became locally packed as the exhaust gas and urea were not mixed and, when an R-type mixer was applied, urea was formed being spread on the whole. It was also confirmed that uniformity index was increased by 8 % in average when an R-type mixer was used in comparison to that of the non-mixer type, and the non-mixer type failed to achieve flow uniformity of 90 % or higher while the case where an R-type mixer was used could achieve it when the distance was 20 cm or bigger. Based on such a result, changes in the uniformity of urea and exhaust gas depending on existence of a mixer, exhaust gas temperature, engine rpm, and distance could be confirmed. It is thought that additional studies are required to be conducted later on the effect of a change in the mixer shape on flow uniformity.

• Periodical: Defect and Diffusion Forum (Volume 399)
• Pages: 145-153
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.399.145
• Online since: February 2020
• Authors: Mun Seok Choe, Dogyeong Kang, Dooseuk Choi*
• Keywords: Exhaust System, Mixer, NO_x, SCR (Selective Catalyst Reduction), Uniformity Index

References

[1] Choe, M. S., Choi, D. S., Study of the Optimization of the SCR Catalyst Position in by Exhaust System of using Mixer, Indian Journal of Science and Technology 9(24) (2016) 1-5.

DOI: 10.17485/ijst/2016/v9i24/95995

[2] Choe, M., Kim, K., Choi, D.S., Study on the Flow Effects of an Exhaust System by Mixer Modeling, Contemporary Engineering Sciences 9(19) (2016) 943 - 952.

DOI: 10.12988/ces.2016.6698

[3] Park, K., Hong, C. H., Oh, S., & Moon, S. , Numerical Prediction on the Influence of Mixer on the Performance of Urea-SCR System, International Journal of Mechanical, Aerospace Industrial and Mechatronics Engineering 8(5) (2014) 972-978.

[4] Kim, N. W., Choe, M. S., Choi, D. S., Analysis on flow characteristic according to the shape change of mixer blade in Urea-SCR system, Journal of Engineering and Applied Sciences 13 (Special Issue 2) (2018) 2845 – 2849.

[5] Kim, K. S., Im, S. Y., Choe, M. S., Yoon, T. J., Kang, D. K., & Choi, D. S., Relationship between flame thickness and velocity based on thermodynamic three kernels in a constant volume combustion chamber, Journal of Mechanical Science and Technology 33(5) (2018) 2459-2470.

DOI: 10.1007/s12206-019-0443-6

[6] Kim, K. S., & Choi, D. S., Thermodynamic kernel, IMEP, and response based on three plasma energies, Journal of Mechanical Science and Technology 32(8) (2018) 3983-3994.

DOI: 10.1007/s12206-018-0749-9

[7] Samuelsson, E. M. E. L. I. E., & Holmberg, S. A. R. A., A CFD study of the urea supply, droplet breakup and mixing in a pipe upstream of a SCR catalyst. Doctoral dissertation, MS thesis. Department of Chemical and Biochemical engineering, Chalmers University of Technology (2013).

[8] Choe, M. S., Kim, K. S., & Choi, D. S. Study on Flame Propagation Characteristics According to New Ignition-Source in a Constant Volume Combustion Chamber. Defect and Diffusion Forum, 391 (2019) 142-151.

DOI: 10.4028/www.scientific.net/ddf.391.142
