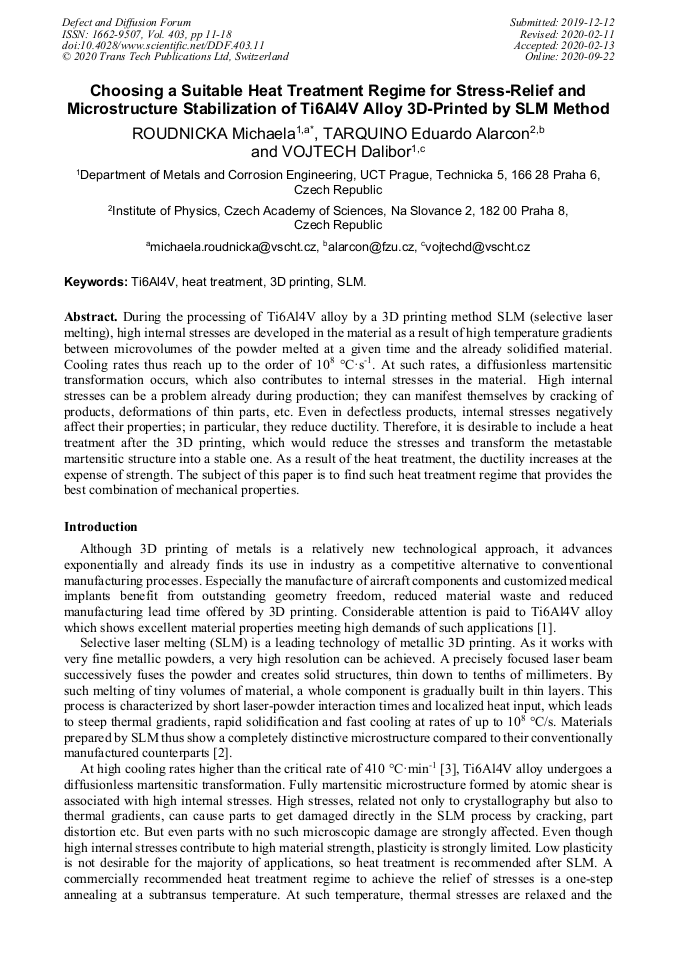

Choosing a Suitable Heat Treatment Regime for Stress-Relief and Microstructure Stabilization of Ti6Al4V Alloy 3D-printed by SLM Method

Abstract:

During the processing of Ti6Al4V alloy by a 3D printing method SLM (selective laser melting), high internal stresses are developed in the material as a result of high temperature gradients between microvolumes of the powder melted at a given time and the already solidified material. Cooling rates thus reach up to the order of 10⁸ °C·s^-1. At such rates, a diffusionless martensitic transformation occurs, which also contributes to internal stresses in the material. High internal stresses can be a problem already during production; they can manifest themselves by cracking of products, deformations of thin parts, etc. Even in defectless products, internal stresses negatively affect their properties; in particular, they reduce ductility. Therefore, it is desirable to include a heat treatment after the 3D printing, which would reduce the stresses and transform the metastable martensitic structure into a stable one. As a result of the heat treatment, the ductility increases at the expense of strength. The subject of this paper is to find such heat treatment regime that provides the best combination of mechanical properties.

• Periodical: Defect and Diffusion Forum (Volume 403)
• Pages: 11-18
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.403.11
• Online since: September 2020
• Authors: Michaela Roudnická*, Eduardo Alarcon Tarquino, Dalibor Vojtech
• Keywords: 3D Printing, Heat Treatment, SLM, Ti6Al4V

References

[1] G. M. Ter Haar and T. H. Becker, Selective Laser Melting Produced Ti-6Al-4V: Post-Process Heat Treatments to Achieve Superior Tensile Properties, Materials 11 (2018) 146.

DOI: 10.3390/ma11010146

[2] L. Thijs, F. Verhaeghe, T. Creaghs, J. V. Humbeeck, J.-P- Kruth, A study of the microstructural evolution during selective laser melting of Ti–6Al–4V, Acta Mater. 58 (2010) 3303-3312.

DOI: 10.1016/j.actamat.2010.02.004

[3] T. Ahmed and H. J. Rack, Phase transformations during cooling in α + β titanium alloys, Mater. Sci. Eng. A 243 (1998) 206-211.

[4] B. Vrancken, L. Thijs, J.-P. Kruth, J. van Humbeeck, Heat treatment of Ti6Al4V produced by Selective Laser Melting: Microstructure and mechanical properties, J. Alloy Compd. 541 (2012) 177-185.

DOI: 10.1016/j.jallcom.2012.07.022

[5] rematitan® CL powered by Dentaurum, material datasheet, Concept Laser GmbH, (2011).

[6] Ti6Al4V ELI-0406 powder for additive manufacturing, material datasheet, Renishaw plc, (2017).

[7] Titanium Ti-6Al-4V, material datasheet, 3T-AM.

[8] EOS Titanium Ti64ELI, material datasheet, EOS GmbH, (2017).

[9] Ti-Alloy TiAl6V4 ELI (Grade 23) / 3.7165 / B348 / F136, material data sheet, SLM Solutions.

[10] M. Fousova and D. Vojtech, Thermal treatment of 3D-printed Titanium alloy, Manufacturing Technology 18 (2018) 227-232.

DOI: 10.21062/ujep/82.2018/a/1213-2489/mt/18/2/227

[11] T. Vilaro, C. Colin, J. D. Bartout, As-Fabricated and Heat-Treated Microstructures of the Ti-6Al-4V Alloy Processed by Selective Laser Melting, Metall. Mater. Trans. A 42 (2011) 3190-3199.

DOI: 10.1007/s11661-011-0731-y

[12] W. Xu, M. Brandt, S. Sun, J. Elambasseril, Q. Liu, K. Latham, K. Xia, M. Qian, Additive manufacturing of strong and ductile Ti–6Al–4V by selective laser melting via in situ martensite decomposition, Acta Mater. 85 (2015) 74-84.

DOI: 10.1016/j.actamat.2014.11.028

[13] G. M. Ter Haar, Selective Laser Melting-produced Ti6Al4V: Influence of annealing strategies on crystallographic microstructure and tensile behavior, Master thesis at the Faculty of Engineering, Stellenbosch University, Stellenbosch, South African Republic, (2017).

[14] E. O. Hall, Proc. Phys. Soc. London, Sect. B 64 (1951) 747.
