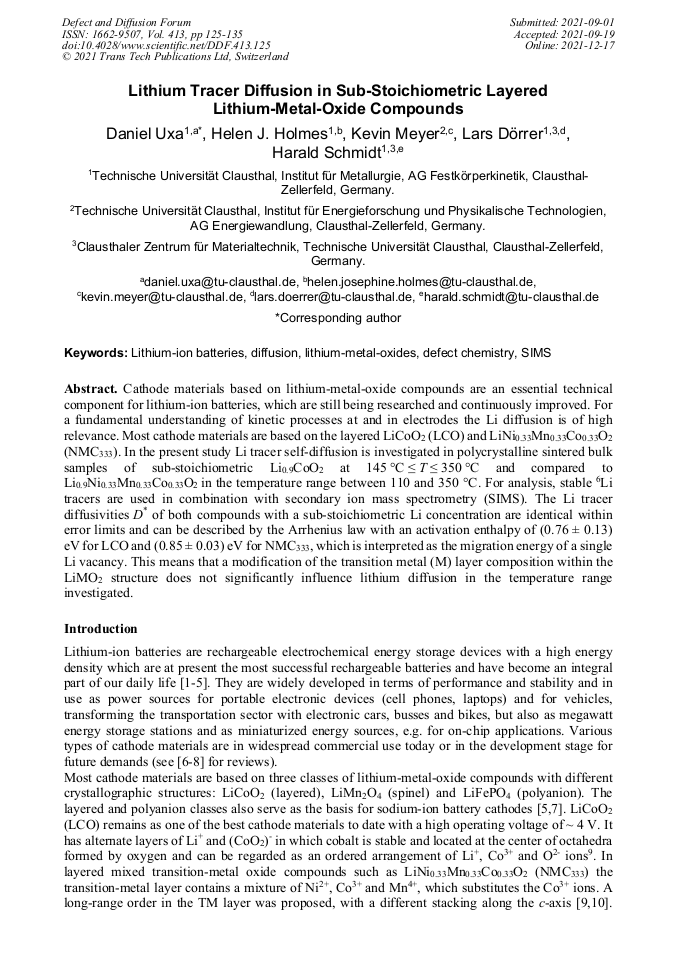

Lithium Tracer Diffusion in Sub-Stoichiometric Layered Lithium-Metal-Oxide Compounds

Abstract:

Cathode materials based on lithium-metal-oxide compounds are an essential technical component for lithium-ion batteries, which are still being researched and continuously improved. For a fundamental understanding of kinetic processes at and in electrodes the Li diffusion is of high relevance. Most cathode materials are based on the layered LiCoO₂ (LCO) and LiNi_0.33Mn_0.33Co_0.33O₂ (NMC₃₃₃). In the present study Li tracer self-diffusion is investigated in polycrystalline sintered bulk samples of sub-stoichiometric Li_0.9CoO₂ at 145 °C ≤ T ≤ 350 °C and compared to Li_0.9Ni_0.33Mn_0.33Co_0.33O₂ in the temperature range between 110 and 350 °C. For analysis, stable ⁶Li tracers are used in combination with secondary ion mass spectrometry (SIMS). The Li tracer diffusivities D^* of both compounds with a sub-stoichiometric Li concentration are identical within error limits and can be described by the Arrhenius law with an activation enthalpy of (0.76 ± 0.13) eV for LCO and (0.85 ± 0.03) eV for NMC₃₃₃, which is interpreted as the migration energy of a single Li vacancy. This means that a modification of the transition metal (M) layer composition within the LiMO₂ structure does not significantly influence lithium diffusion in the temperature range investigated.

• Periodical: Defect and Diffusion Forum (Volume 413)
• Pages: 125-135
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.413.125
• Online since: December 2021
• Authors: Daniel Uxa*, Helen J. Holmes, Kevin Meyer, Lars Dörrer, Harald Schmidt
• Keywords: Defect Chemistry, Diffusion, Lithium-Ion Batteries, Lithium-Metal-Oxides, SIMS
