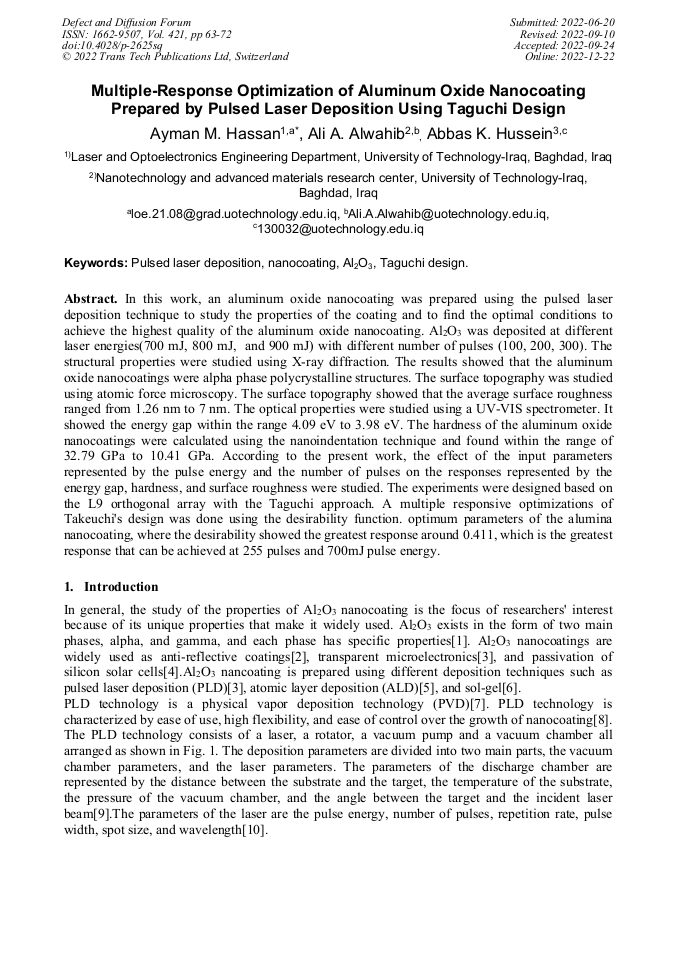

Multiple-Response Optimization of Aluminum Oxide Nanocoating Prepared by Pulsed Laser Deposition Using Taguchi Design

Abstract:

In this work, an aluminum oxide nanocoating was prepared using the pulsed laser deposition technique to study the properties of the coating and to find the optimal conditions to achieve the highest quality of the aluminum oxide nanocoating. The structural properties were studied using X-ray diffraction. The results showed that the aluminum oxide nanocoatings were alpha phase polycrystalline structures. The surface topography was studied using atomic force microscopy. The surface topography showed that the average surface roughness ranged from 1.26 nm to 7 nm. The optical properties were studied using a UV-VIS spectrometer. It showed the energy gap within the range 4.09 eV to 3.98 eV. The hardness of the aluminum oxide nanocoatings were calculated using the nanoindentation technique and found within the range of 32.79 GPa to 10.41 GPa. According to the present work, the effect of the input parameters represented by the pulse energy and the number of pulses on the responses represented by the energy gap, hardness, and surface roughness were studied. The experiments were designed based on the L9 orthogonal array with the Taguchi approach. A multiple responsive optimizations of Takeuchi's design was done using the desirability function.

• Periodical: Defect and Diffusion Forum (Volume 421)
• Pages: 63-72
• DOI: https://doi.org/10.4028/p-2625sq
• Online since: December 2022
• Authors: Ayman M. Hassan, Ali Abdulkhaleq Alwahib*, Abbas Khammas Hussein
• Keywords: Al₂O₃, Nanocoating, Pulse Laser Deposition, Taguchi Design

References

[1] G. Balakrishnan, P. Kuppusami, S. Tripura Sundari, R. Thirumurugesan, V. Ganesan, Structural and optical properties of γ-alumina thin films prepared by pulsed laser deposition, Thin Solid Films, 518 (2010) 3898–3902.

DOI: 10.1016/j.tsf.2009.12.001

[2] C. Yin, MEIPING Z., TINGTING Z., Al 2 O 3 anti-reflection coatings with graded-refractive index profile for laser applications , Opt. Mater. Express, 11 (2021) 875.

DOI: 10.1364/ome.418174

[3] D. A. Mohammed, A. Kadhim, and M. A. Fakhri, The enhancement of the corrosion protection of 304 stainless steel using Al2O3 films by PLD method,, AIP Conf. Proc., 2045 (2018) 0–6.

DOI: 10.1063/1.5080827

[4] J. Benick, A. Richter, M. Hermle, S. W. Glunz, Thermal stability of the Al2O3 passivation on p-type silicon surfaces for solar cell applications, Phys. Status Solidi - Rapid Res. Lett., 3 (2009) 233–235.

DOI: 10.1002/pssr.200903209

[5] R. Zazpe, Armin R., Martin H., Stefan W., Atomic Layer Deposition Al2O3 Coatings Significantly Improve Thermal, Chemical, and Mechanical Stability of Anodic TiO2 Nanotube Layers, Langmuir, 33 (2017) 3208–3216.

DOI: 10.1021/acs.langmuir.7b00187

[6] F. M. O. Hayder A. Sallal a, Alla A. Abdul-Hamead b, Preparation of Al2O3/MgO Nano-Composite Particles for Bio- Applications Hayder, Eng. Technol. J., 3 (2020) 2–5.

DOI: 10.30684/etj.v38i4a.290

[7] K. Abdulkareem, S. Kadhim, and S. Ali, The Structural and Optical Properties of Nanocrystalline Fe3O4 Thin Films Prepared by PLD, Eng. Technol. J.,40 (2022) 334–342.

DOI: 10.30684/etj.v40i2.2235

[8] Kadhim M. J., Sukkar K. A., Abbas A. S., and Obaeed N. H., Investigation Nano coating for Corrosion Protection of Petroleum Pipeline Steel Type A106 Grade B; Theoretical and Practical Study in Iraqi Petroleum Sector, Eng. Technol. J., 35 (2017) 3–4.

DOI: 10.30684/etj.35.10a.11

[9] A. Jw. J. T. Kadhim, Structural and DC Electrical Properties of ( CuI ) Thin Film Prepared by Pulse Laser Deposition, Eng. Technol. J.,34 (2016) (2016).

DOI: 10.30684/etj.34.4b.8

[10] Y. Z. Dawood, S. M. Kadhim, and A. Z. Mohammed, Structure and Optical Properties of Nano PbS Thin Film Deposited by Pulse Laser Deposition, Eng. Technol. J.,5 (2015) 9.

[11] A. Mann, Nanoindentation, Surfaces Interfaces Biomater., (2005) 225–247.

[12] Y. Xiong, J. Wu, C. Deng, and Y. Wang, Machining process parameters optimization for heavy-duty CNC machine tools in sustainable manufacturing, Int. J. Adv. Manuf. Technol., 87 (2016) 1237–1246.

DOI: 10.1007/s00170-013-4881-5

[13] P. Shanmughasundaram, R. Subramanian, Influence of graphite and machining parameters on the surface roughness of Al-fly ash/graphite hybrid composite: A Taguchi approach, J. Mech. Sci. Technol., 27 (2013) 2445–2455.

DOI: 10.1007/s12206-013-0630-9

[14] B. Singarvel, T. Selvaraj, R. Jeyapaul, Multi objective optimization in turning of EN25 steel using taguchi based utility concept coupled with principal component analysis, Procedia Eng.,97 (2014) 158–165.

DOI: 10.1016/j.proeng.2014.12.237

[15] R. Roy, , Sourav K., Tanvir I., Multi-Response Optimization of Surface Grinding Process Parameters of AISI 4140 Alloy Steel Using Response Surface Methodology and Desirability Function under Dry and Wet Conditions, Coatings,12 (2022).

DOI: 10.3390/coatings12010104

[16] J. Kongsakul, N. Witit-anun, S. Chaiyakun, and P. Kaewtrakulpong, Measurement of Aluminum Thin Film Thickness by Fizeau Interferometer Technique, Dept, Physics, Burapa Univ., (2005).

[17] F.T.L. Muniz, M. A. R. Miranda, C. Morilla Dos Santos, and J. M. Sasaki, The Scherrer equation and the dynamical theory of X-ray diffraction, Acta Crystallogr. Sect. A Found. Adv., 72 (2016) 385–390.

DOI: 10.1107/s205327331600365x

[18] K. A. Aadim, N.K. Abbas, A.T. Dahham, Influence the number of laser pulses and annealing temperature and the Structure and optical properties of In2O3: CdO films prepared laser induce plasma, Iraqi J. Sci.,59 (2018) 1567–1576.

DOI: 10.24996/ijs.2018.59.3c.4

[19] I.L. Quintás, Characterization and control of laser ablation plasmas for the synthesis of new materials and as optical nonlinear media, (2017).

[20] C. Outline, Methods for Assessing Surface Cleanliness, 12 (2019).

[21] N.J. Mohammed, H.A. Ahmed, Effect of Laser Fluence on Structural Transformations and Photoluminescence Quenching of Zinc Selenide Nanoparticles Thin Films, 29 (2018).

DOI: 10.23851/mjs.v29i4.441

[22] S.M. Pawar, A.V. Moholkar., I.K. Kim, Effect of laser incident energy on the structural, morphological and optical properties of Cu2ZnSnS4 (CZTS) thin films," Curr. Appl. Phys., 10 (2010) 565–569.

DOI: 10.1016/j.cap.2009.07.023

[23] S. Nagar, Disseratation: Multifunctional magnetic materials prepared by Pulsed Laser Deposition, (2012).

[24] Z. Ghorannevis, M. T. Hosseinnejad, M. Habibi, and P. Golmahdi, Effect of substrate temperature on structural, morphological and optical properties of deposited Al/ZnO films, J. Theor. Appl. Phys.,9 (2015) 33–38.

DOI: 10.1007/s40094-014-0157-1

[25] H. Kim J.S. Horwitz, G. Kushto, A. Pique´, Z.H. Kafafi, C.M. Gilmore., Effect of film thickness on the properties of indium tin oxide thin films, J. Appl. Phys., 88 (2000) 6021–6025.

DOI: 10.1063/1.1318368

[26] H. F. Oleiwi, H. F. Al-Taay, S. K. Yassin Al-Ani, and K. J. Tahir, Structural and optical properties of Al2O3 nanocrystalline: Effect of deposition time, AIP Conf. Proc.,2144 (2019).

DOI: 10.1063/1.5123097

[27] M. R. Joya, J. Barón-Jaimez, and J. Barba-Ortega, Preparation and characterization of Fe 2 O 3 nanoparticles Preparation and characterization of F e 2 O 3 nanoparticles, J. Phys. Conf. Ser,466 (2014) 132–133.

DOI: 10.1088/1742-6596/466/1/012004

[28] M. Ben Rabeh, N. Khedmi, M. A. Fodha, and M. Kanzari, The effect of thickness on optical band gap and N-type conductivity of CuInS2 thin films annealed in air atmosphere, Energy Procedia, 44 (2014) 52–60.

DOI: 10.1016/j.egypro.2013.12.009

[29] E. O. Filatova and A. S. Konashuk, Interpretation of the Changing the Band Gap of Al2O3 Depending on Its Crystalline Form: Connection with Different Local Symmetries, J. Phys. Chem. C, 119 (2015) 20755–20761.

DOI: 10.1021/acs.jpcc.5b06843

[30] I. A. Kariper, Hardness of Thin Films and the Influential Factors, Diam. Carbon Compos. Nanocomposites, 2016 (1–20).

[31] K. Soorya Prakash, P. M. Gopal, S. Karthik, Multi-objective optimization using Taguchi based grey relational analysis in turning of Rock dust reinforced Aluminum MMC, Meas. J. Int. Meas. Confed. 157 (2020) 107664.

DOI: 10.1016/j.measurement.2020.107664
