For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
A Simulation Model for the Analysis of Laser Cutting of Stainless Steel Sheets
p.71
CFD Analysis of Perforated Plates and Open-Cell Materials Aerodynamics
p.81
Copper, Iron and Aluminium Electrochemical Corrosion Investigation during Electrolysis and Temperature Increasing
p.93
Development of Multi-Component B-C-N Diffusion Coating on Wrought AISI M2 High-Speed Steel Substrate
p.107
Phase Transformations and Martensite Stabilization in Ni2.36Mn0.64Ga High-Temperature Shape Memory Alloy
p.117
Contribution to the Improvement of the Wear Resistance of the AISI 1010 Material by the Tribofinishing Process Using the Box-Behnken Experimental Designs
p.127
Experiments on Hydrogen Uptake and Diffusion in LiNb0.15Ta0.85O3 Single Crystals by Infra-Red Spectroscopy
p.136
Study of Softening Temperature Range of Agglomerate Depending on its Structure and Phase Composition
p.144
Drying of Industrial Sanitary Ware at Low Temperature: A Theoretical and Experimental Investigation
p.152

Phase Transformations and Martensite Stabilization in Ni2.36Mn0.64Ga High-Temperature Shape Memory Alloy

Article Preview

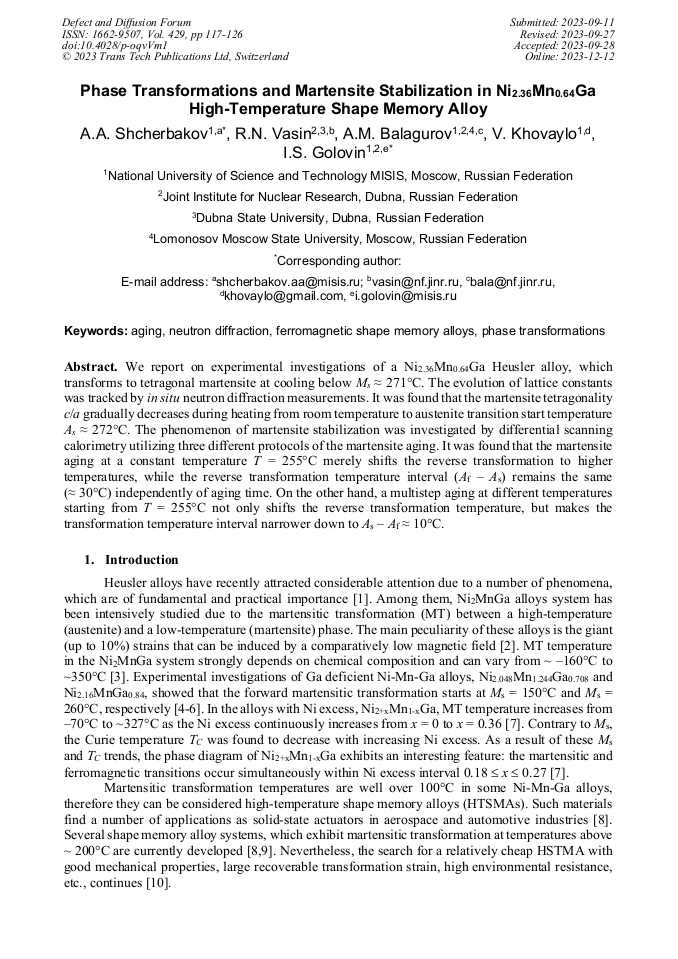

Abstract:

We report on experimental investigations of a Ni2.36Mn0.64Ga Heusler alloy, which transforms to tetragonal martensite at cooling below Ms ≈ 271°С. The evolution of lattice constants was tracked by in situ neutron diffraction measurements. It was found that the martensite tetragonality c/a gradually decreases during heating from room temperature to austenite transition start temperature As ≈ 272°С. The phenomenon of martensite stabilization was investigated by differential scanning calorimetry utilizing three different protocols of the martensite aging. It was found that the martensite aging at a constant temperature T = 255°С merely shifts the reverse transformation to higher temperatures, while the reverse transformation temperature interval (Af – As) remains the same (≈ 30°C) independently of aging time. On the other hand, a multistep aging at different temperatures starting from T = 255°С not only shifts the reverse transformation temperature, but makes the transformation temperature interval narrower down to As – Af ≈ 10°C.

You might also be interested in these eBooks
Advances in Mass and Thermal Transport in Engineering Materials IV View Preview

Info:

Periodical:

Defect and Diffusion Forum (Volume 429)

Pages:

117-126

DOI:

https://doi.org/10.4028/p-oqvVm1

Citation:

Cite this paper

Online since:

December 2023

Authors:

A.A. Shcherbakov, R.A. Vasin, A.M. Balagurov, Vladimir V. Khovaylo, Igor S. Golovin*

Keywords:

Aging, Ferromagnetic Shape Memory Alloys, Neutron Diffraction, Phase Transformations

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] T. Graf, C. Felser, and S.S.P. Parkin, "Simple rules for the understanding of Heusler compounds" Prog. Solid State Chem. 39 (2011) 1.

DOI: 10.1016/j.progsolidstchem.2011.02.001

Google Scholar

[2] A. Sozinov, A.A. Likhachev, N. Lanska, and K. Ullakko, "Giant magnetic-field-induced strain in NiMnGa seven-layered martensitic phase" Appl. Phys. Lett. 80 (2002) 1746.

DOI: 10.1063/1.1458075

Google Scholar

[3] V.A. Chernenko, E. Cesari, V.V. Kokorin, and I.N. Vitenko, "The development of new ferromagnetic shape memory alloys in Ni-Mn-Ga system" Scripta Metal. 33 (1995) 1239.

DOI: 10.1016/0956-716x(95)00370-b

Google Scholar

[4] V.A. Chernenko, V. L'vov, J. Pons, and E. Cesari, "Superelasticity in high-temperature Ni–Mn–Ga alloys" J. Appl. Phys. 93 (2003) 2394.

DOI: 10.1063/1.1539532

Google Scholar

[5] Y.Q. Ma, C.B. Jiang, G. Feng, and H.B. Xu, "Thermal stability of the Ni54Mn25Ga21 Heusler alloy with high temperature transformation" Scripta Mater. 48 (2003) 365.

DOI: 10.1016/s1359-6462(02)00450-5

Google Scholar

[6] H. Xu, Y. Ma, and C. Jiang, "A high-temperature shape-memory alloy Ni54Mn25Ga21" Appl. Phys. Lett. 82 (2003) 3206.

DOI: 10.1063/1.1572540

Google Scholar

[7] V.V. Khovaylo, V.D. Buchelnikov, R. Kainuma, V.V. Koledov, M. Ohtsuka, V.G. Shavrov, T. Takagi, T. Taskaev, and A.N. Vasiliev, "Phase transitions in Ni2+xMn1-xGa with a high Ni excess" Phys. Rev. B 72 (2005) 224408.

DOI: 10.1103/physrevb.73.149901

Google Scholar

[8] J. Ma, I. Karaman, and R.D. Noebe, "High temperature shape memory alloys" Int. Mater. Rev. 55 (2010) 257.

Google Scholar

[9] Y. Yamabe-Mitarai, "TiPd- and TiPt-based high-temperature shape memory alloys: A review on recent advances" Metals 10 (2020) 1531.

DOI: 10.3390/met10111531

Google Scholar

[10] S. Li, D. Cong, W. Xiong, Z. Chen, X. Zhang, Z. Nie, S. Li, R. Li, Y. Wang, Y. Cao, Y. Ren, and Y. Wang, "A low-cost Ni-Mn-Ti-B high-temperature shape memory alloy with extraordinary functional properties" ACS Appl. Mater. Interfaces 13 (2021) 31870.

DOI: 10.1021/acsami.1c07619

Google Scholar

[11] X. Ren and K. Otsuka, "Origin of rubber-like behavior in metal alloys" Nature 389 (1997) 579.

DOI: 10.1038/39277

Google Scholar

[12] K. Otsuka and X. Ren, "Mechanism of martensite aging effects and new aspects" Mater. Sci. Eng. A 312 (2001) 207.

Google Scholar

[13] V. Khovaylo, R. Kainuma, K. Ishida, T. Omori, H. Miki, T. Takagi, and A. Datesman, "New aspects of martensite stabilization in Ni-Mn-Ga high-temperature shape memory alloy" Philos. Mag. 88 (2008) 865.

DOI: 10.1080/14786430801986670

Google Scholar

[14] P.M. Kadletz, Ph. Krooß, Yu.I. Chumlyakov, M.J. Gutmann, W.W. Schmahl, H.J. Maier, and T. Niendorf, "Martensite stabilization in shape memory alloys – Experimental evidence for short-range ordering" Mater. Lett. 159 (2015) 16.

DOI: 10.1016/j.matlet.2015.06.048

Google Scholar

[15] N.A. Río-López, P. Lázpita, D. Salazar, V.I. Petrenko, F. Plazaola, V. Chernenko, J.M. Porro, "Neutron scattering as a powerful tool to investigate magnetic shape memory alloys: a review" Metals 11 (2021) 829.

DOI: 10.3390/met11050829

Google Scholar

[16] А.М. Balagurov, "High resolution Fourier diffraction at the IBR-2 reactor" Neutron News 16 (2005) 8.

DOI: 10.1080/10446830500454346

Google Scholar

[17] А.M. Balagurov, I.S. Golovin, I.A. Bobrikov, V.V. Palacheva, S.V. Sumnikov, and V.B. Zlokazov, "Comparative study of structural phase transitions in bulk and powdered Fe-27Ga alloy by real-time neutron thermodiffractometry" J. Appl. Cryst. 50 (2017) 198.

DOI: 10.1107/s1600576716020045

Google Scholar

[18] S. Banik, R. Ranjan, A. Chakrabarti, S. Bhardwaj, N.P. Lalla, A.M. Awasthi, V. Sathe, D.M. Phase, P.K. Mukhopadhyay, D. Pandey, and S.R. Barman, "Structural studies of Ni2+xMn1-xGa by powder x-ray diffraction and total energy calculations" Phys. Rev B 75 (2007) 104107.

DOI: 10.1103/physrevb.75.104107

Google Scholar

[19] M. Wojdyr, "Fityk: a general-purpose peak fitting program" J. Appl. Cryst. 43 (2010) 1126.

DOI: 10.1107/s0021889810030499

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
