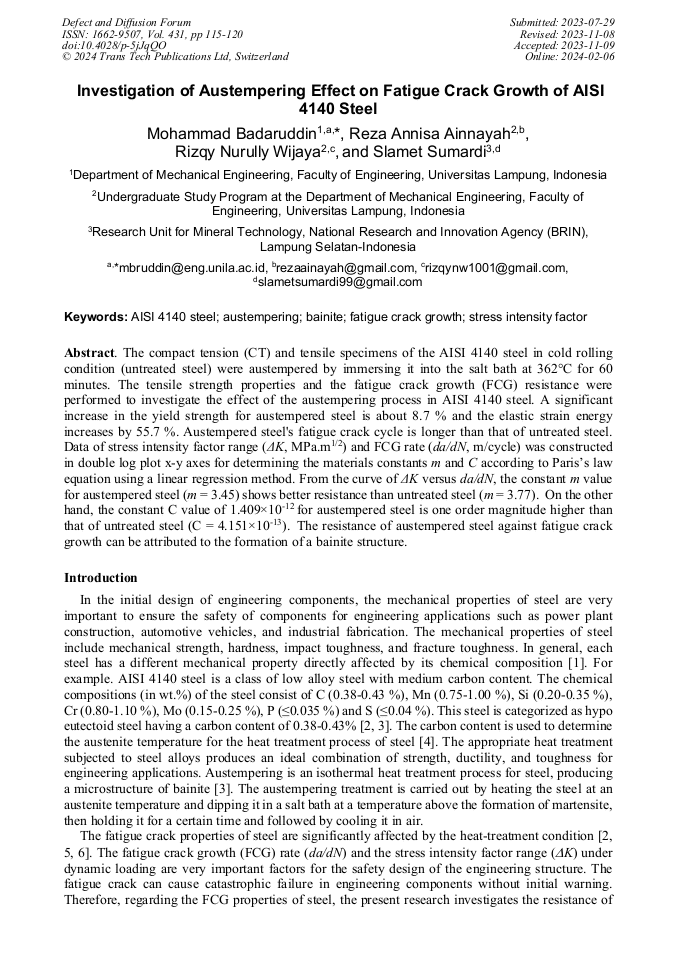

Investigation of Austempering Effect on Fatigue Crack Growth of AISI 4140 Steel

Abstract:

The compact tension (CT) and tensile specimens of the AISI 4140 steel in cold rolling condition (untreated steel) were austempered by immersing it into the salt bath at 362°C for 60 minutes. The tensile strength properties and the fatigue crack growth (FCG) resistance were performed to investigate the effect of the austempering process in AISI 4140 steel. A significant increase in the yield strength for austempered steel is about 8.7 % and the elastic strain energy increases by 55.7 %. Austempered steel's fatigue crack cycle is longer than that of untreated steel. Data of stress intensity factor range (ΔK, MPa.m^1/2) and FCG rate (da/dN, m/cycle) was constructed in double log plot x-y axes for determining the materials constants m and C according to Paris’s law equation using a linear regression method. From the curve of ΔK versus da/dN, the constant m value for austempered steel (m = 3.45) shows better resistance than untreated steel (m = 3.77). On the other hand, the constant C value of 1.409×10^-12 for austempered steel is one order magnitude higher than that of untreated steel (C = 4.151×10^-13). The resistance of austempered steel against fatigue crack growth can be attributed to the formation of a bainite structure.

• Periodical: Defect and Diffusion Forum (Volume 431)
• Pages: 115-120
• DOI: https://doi.org/10.4028/p-5jJqQO
• Online since: February 2024
• Authors: Mohammad Badaruddin*, Reza Annisa Ainnayah, Rizqy Nurully Wijaya, Slamet Sumardi
• Keywords: AISI 4140 Steel, Austempering, Bainite, Fatigue Crack Growth, Intensity Stress Factor

References

[1] M. Badaruddin, R.P. Pratama, Sugiyanto, Harnowo, Effect of single and double quenching-tempering heat treatments on microstructures and tensile strength of AISI 4140 in annealing condition, AIP Conference Proceedings, 2592 (2023).

DOI: 10.1063/5.0115822

[2] M. Badaruddin, Sugiyanto, H. Wardono, Andoko, C.J. Wang, A.K. Rivai, Improvement of low-cycle fatigue resistance in AISI 4140 steel by annealing treatment, International Journal of Fatigue, 125 (2019) 406-417.

DOI: 10.1016/j.ijfatigue.2019.04.020

[3] M. Badaruddin, B. Bakti, B. Prasetyo, Sugiyanto, Effect of austempering temperatures on surface hardness of AISI 4140 steel, IOP Conference Series: Materials Science and Engineering, 1173 (2021) 012027.

DOI: 10.1088/1757-899x/1173/1/012027

[4] L. Feng, F. Hu, W. Zhou, R. Ke, G. Zhang, K. Wu, W. Qiao, Influences of Alloying Elements on Continuous Cooling Phase Transformation and Microstructures of Extremely Fine Pearlite, Metals, 9 (2019) 70.

DOI: 10.3390/met9010070

[5] J. Feng, M. Wettlaufer, Plane-strain fracture toughness of AISI 4140 steel austempered below MS, Materials Science and Engineering: A, 743 (2019) 494-499.

DOI: 10.1016/j.msea.2018.11.122

[6] Heat treatment, in: W.F. Gale, T.C. Totemeier (Eds.) Smithells Metals Reference Book (Eighth Edition), Butterworth-Heinemann, Oxford, 2004, pp.29-83.

[7] M. Badaruddin, Fatik Siklus Rendah dan Perambatan Retak Fatik, Deepublish, Yogyakarta, 2023.

[8] S. Bakhshi, A. Mirak, The effect of low temperature transformation time on microstructural & textural evolution, mechanical properties and fracture behavior of a low alloy, medium carbon, super strength AISI 4340 steel, Materials Science and Engineering: A, 831 (2022) 142247.

DOI: 10.1016/j.msea.2021.142247

[9] R. Dalwatkar, N. Prabhu, R.K.P. Singh, Effect of austempering temperature and time on mechanical properties of SAE 9260 steel, AIP Conference Proceedings, 1957 (2018).

DOI: 10.1063/1.5034329

[10] V. Ramasagara Nagarajan, S.K. Putatunda, Influence of dissolved hydrogen on the fatigue crack growth behaviour of AISI 4140 steel, International Journal of Fatigue, 62 (2014) 236-248.

DOI: 10.1016/j.ijfatigue.2013.04.018

[11] M. Guan, H. Yu, Fatigue crack growth behaviors in hot-rolled low carbon steels: A comparison between ferrite–pearlite and ferrite–bainite microstructures, Materials Science and Engineering: A, 559 (2013) 875-881.

DOI: 10.1016/j.msea.2012.09.036

[12] Z. Wu, M. Yang, K. Zhao, Fatigue Crack Initiation and Propagation at High Temperature of New-Generation Bearing Steel, Metals, 11 (2021) 25.

DOI: 10.3390/met11010025

[13] D. Birenis, Y. Ogawa, H. Matsunaga, O. Takakuwa, J. Yamabe, Ø. Prytz, A. Thøgersen, Hydrogen-assisted fatigue crack propagation in a pure BCC iron. Part II: Accelerated regime manifested by quasi-cleavage fracture at relatively high stress intensity range values, MATEC Web Conf., 165 (2018) 03010.

DOI: 10.1051/matecconf/201816503010
