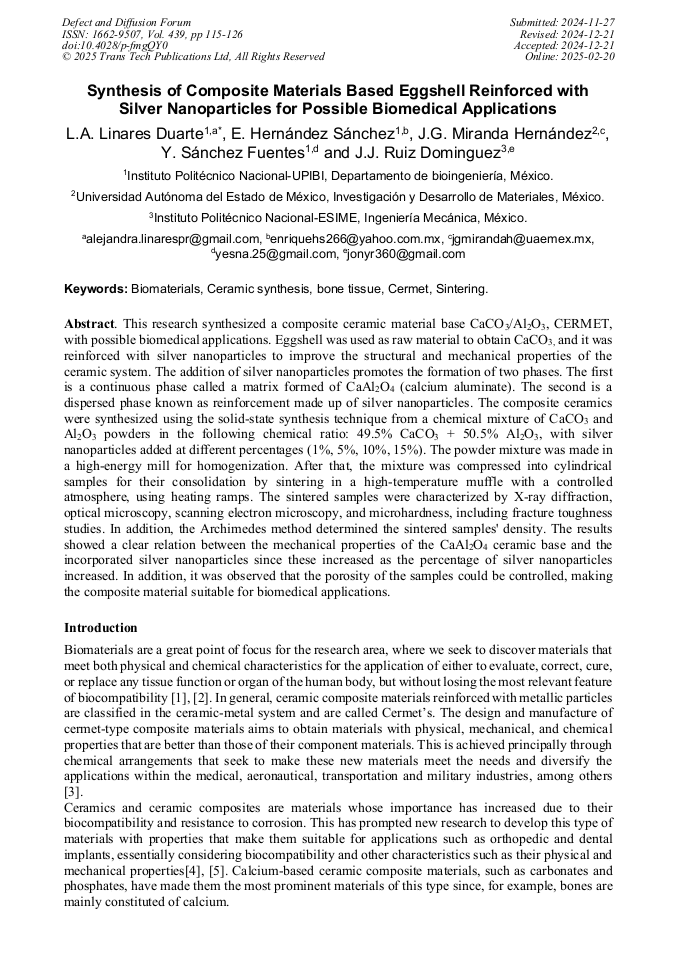

Synthesis of Composite Materials Based Eggshell Reinforced with Silver Nanoparticles for Possible Biomedical Applications

Abstract:

This research synthesized a composite ceramic material base CaCO₃/Al₂O₃, CERMET, with possible biomedical applications. Eggshell was used as raw material to obtain CaCO_3, and it was reinforced with silver nanoparticles to improve the structural and mechanical properties of the ceramic system. The addition of silver nanoparticles promotes the formation of two phases. The first is a continuous phase called a matrix formed of CaAl₂O₄ (calcium aluminate). The second is a dispersed phase known as reinforcement made up of silver nanoparticles. The composite ceramics were synthesized using the solid-state synthesis technique from a chemical mixture of CaCO₃ and Al₂O₃ powders in the following chemical ratio: 49.5% CaCO₃ + 50.5% Al₂O₃, with silver nanoparticles added at different percentages (1%, 5%, 10%, 15%). The powder mixture was made in a high-energy mill for homogenization. After that, the mixture was compressed into cylindrical samples for their consolidation by sintering in a high-temperature muffle with a controlled atmosphere, using heating ramps. The sintered samples were characterized by X-ray diffraction, optical microscopy, scanning electron microscopy, and microhardness, including fracture toughness studies. In addition, the Archimedes method determined the sintered samples' density. The results showed a clear relation between the mechanical properties of the CaAl₂O₄ ceramic base and the incorporated silver nanoparticles since these increased as the percentage of silver nanoparticles increased. In addition, it was observed that the porosity of the samples could be controlled, making the composite material suitable for biomedical applications.

• Periodical: Defect and Diffusion Forum (Volume 439)
• Pages: 115-126
• DOI: https://doi.org/10.4028/p-fmgQY0
• Online since: February 2025
• Authors: Alejandra Linares Duarte*, Enrique Hernández Sánchez, José Guadalupe Miranda Hernández, Yesenia Sánchez Fuentes, Jonathan Jorge Ruíz Domínguez
• Keywords: Biomaterials, Bone Tissue, Ceramic Synthesis, Cermet, Sintering

References

[1] E. Marin, F. Boschetto, and G. Pezzotti, Biomaterials, and biocompatibility: An historical overview, J.Biomed Mater Res A. 108-8 (2020) 1617–1633

DOI: 10.1002/jbm.a.36930

[2] F. Aguilar, Biocompatibility of new Calcium Aluminate Cement (EndoBinder), J Endod. 38-3 (2012) 367–371

DOI: 10.1016/j.joen.2011.11.002

[3] A. Aramian, Z. Sadeghian, M. Narimani, N. Razavi, and F. Berto, A review on the microstructure and properties of TiC and Ti(C,N) based cermets, Int J Refract Metals Hard Mater. 115 (2023)106.

DOI: 10.1016/j.ijrmhm.2023.106320

[4] A. Saens, Biomateriales, Tecnología en marcha. 34-3(2004) 34–45.

[5] A. C. Santo Rosa, Análisis y simulación numérica del proceso de biodegradación por hidrolisis de biopolímeros en aplicaciones biomédicas. Universidad de Sevilla (2013).

[6] J. G. Miranda Hernandez, M. Ortega Aviles, H. Herrera Hernandez, C. O. Gonzales Moran, G. Hernandez Pacheco, and E. Rocha Rangel, Refractory Ceramics Synthesis by Solid-State Reaction Between CaCO3 (Mollusk Shell) and Al2O3 Powder, Ceramics-Silikáty. 62-4 (2018) 355–363.

DOI: 10.13168/cs.2018.0031

[7] S. G. Gómez de Saravia, S. E. Rastelli, M. Ortega-Avilés, C. O. González-Morán, E. Rocha-Rangel, and J. G. Miranda-Hernández, Physical, mechanical properties, and antimicrobial analysis of a novel CaO·Al2O3 compound reinforced with Al or Ag particles, J Mech Behav Biomed Mater. 97 (2019) 385–395.

DOI: 10.1016/j.jmbbm.2019.05.041

[8] J. G. Miranda-Hernández, C. O. González-Morán, H. Herrera-Hernández, E. H. Sánchez, J. de J. A. Flores-Cuautle, and M. Ortega-Avilés, Sea snail shells for synthesis of ceramic compounds reinforced with metallic oxide: Microstructural, mechanical, and electrical behavior, Mater Today Commun. 28(2021).

DOI: 10.1016/j.mtcomm.2021.102656

[9] I. Halikia, L. Zoumpoulakis, E. Christodoulou, and D. Prattis, Kinetic study of the thermal decomposition of calcium carbonate by isotermal methods of analysis, The European Journal of mineral Processing and Enviromental Protection. 1-2 (2001) 89–102.

[10] J. M. Rivas Mercury, A. H. De Aza, and P. Pena, Synthesis of CaAl2O4 from powders: Particle size effect, J Eur Ceram Soc. 25-14 (2005) 3269–3279.

DOI: 10.1016/j.jeurceramsoc.2004.06.021

[11] V. K. Pandey, B. P. Patel, and S. Guruprasad, Role of ceramic particulate reinforcements on mechanical properties and fracture behavior of aluminum - based composites, Materials Science and Engineering. 745 (2019) 252–264.

DOI: 10.1016/j.msea.2018.12.030

[12] ASTM International, C-1329-03 Standard Test Method for Vickers Indentation Hardness of Advanced Ceramics. Washington, DC. (2024)

[13] ASTM International, "E-384, Standart Test Method For Microindentacion Hardness of Materials," Washington USA,DC (2024),.

[14] J. G. Miranda-Hernández, J. Vargas-Hernández, H. Casarrubias-Vargas, C. O. González-Morán, E. Refugio-García, and J. de J. A. Flores Cuautle, Synthesis, and effect of CaTiO3 formation in CaO·Al2O3 by solid-state reaction from CaCO3·Al2O3 and Ti, Mater Chem Phys. 232 (2019) 57–64.

DOI: 10.1016/j.matchemphys.2019.04.050

[15] J. G. Miranda, Síntesis y Caracterización Mecánica de Materiales Funcionales Oxido-Metal-Nitruro, PhD Thesis , UAM, Ciudad de México, México (2011).

[16] M.A. Taha, A.H. Nassar, and M.F. Zawrah, Improvement of wetability, sinterability, mechanical and electrical properties of Al2O3-Ni nanocomposites prepared by mechanical alloying, Ceram Int.43-4 (2017) 3576–3582.

DOI: 10.1016/j.ceramint.2016.11.194

[17] A. Diaz, J. M. Perez, and J. Ribera, Sustitos oseos, Rev. S.and Traum. y Ort. 26-1, (2008) 2–13.

[18] A. Reddi, S. Weintroub, and Muthukuraman N., Biological principles of bone induction, Orthop Clin North Am. 395(2002) 81–98.

[19] I.R. Oliveira, V.C. Pandolfelli, and M. Jacobovitz, Chemical, physical, and mechanical properties of a novel calcium aluminate endodontic cement, Int Endod J, 43-12(2010) 1069–1076.

DOI: 10.1111/j.1365-2591.2010.01770.x

[20] S.M. Naga, A.M. Hassan, H.F. El-Maghraby, and M. Awaad, Characterization of physico- mechanical properties of Alumina/YAG/Ceria composites, Ceram Int. 45-2 (2019) 1634–1640.

DOI: 10.1016/j.ceramint.2018.10.040
