Hydro-Mass Exchange Processes in the Model of Steel Ladle during Bottom Purging

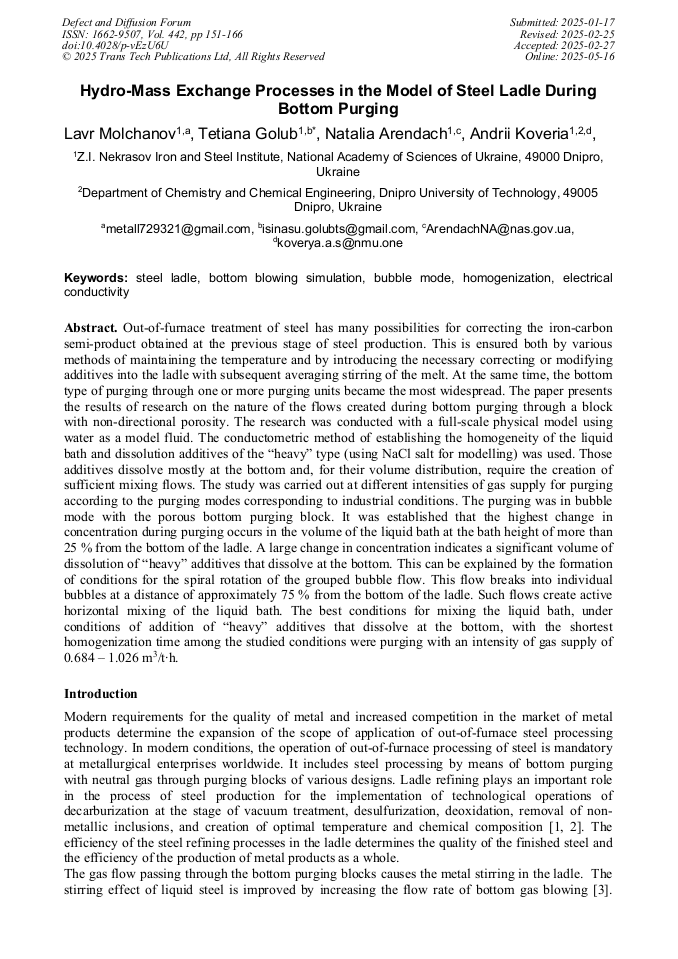

Abstract:

Out-of-furnace treatment of steel has many possibilities for correcting the iron-carbon semi-product obtained at the previous stage of steel production. This is ensured both by various methods of maintaining the temperature and by introducing the necessary correcting or modifying additives into the ladle with subsequent averaging stirring of the melt. At the same time, the bottom type of purging through one or more purging units became the most widespread. The paper presents the results of research on the nature of the flows created during bottom purging through a block with non-directional porosity. The research was conducted with the help of a full-scale physical model using water as a model fluid and using the conductometric method of establishing the homogeneity of the liquid bath and dissolution additives of the “heavy” type (using NaCl salt for modelling). Those additives dissolve mostly at the bottom and, for their volume distribution, require the creation of sufficient mixing flows. The study was carried out at different intensities of gas supply for purging according to the purging modes corresponding to industrial conditions. It was established that during purging in the bubbling mode through a block with non-directional porosity, the largest change in concentration during purging occurs in the volume of the liquid bath at the level of more than 25% from the bottom of the ladle. A large change in concentration indicates a significant volume of dissolution of “heavy” additives that dissolve at the bottom. This can be explained by the formation of conditions for the spiral rotation of the grouped bubble flow that breaks into individual bubbles at a distance of approx. 75% from the bottom of the ladle. Such flows create active horizontal mixing of the liquid bath. The best conditions for mixing the liquid bath, under conditions of addition of “heavy” additives that dissolve at the bottom, with the shortest homogenization time among the studied conditions were purging with an intensity of gas supply of 0.684-1.026 m³/t steel per h.

• Periodical: Defect and Diffusion Forum (Volume 442)
• Pages: 151-166
• DOI: https://doi.org/10.4028/p-vEzU6U
• Online since: May 2025
• Authors: Lavr Molchanov, Tetiana Golub*, Natalia Arendach, Andrii Koveria
• Keywords: Bottom Blowing Simulation, Bubble Mode, Electrical Conductivity, Homogenization, Steel Ladle

References

[1] Y. Liu, M. Ersson, H. Liu, P. G. Jönsson, Y. Gan, A review of physical and numerical approaches for the study of gas stirring in ladle metallurgy, Metallurgical and Materials Transactions B, 50 (2019) 555–577

DOI: 10.1007/s11663-018-1446-x

[2] D. Mazumdar, R.I.L Guthrie, The physical and mathematical modeling of gas stirred ladle systems, ISIJ Int. 35 (1995) 1-20

DOI: 10.2355/isijinternational.35.1

[3] D. H. Zhang, M. G. Shen, Q. H. Qi, J. W. Kuang, Study on amplitude of the surface of liquid steel in bottom-blowing ladle with immersed tube, Advanced Materials Research. 734–737 (2013) 1511–1515. Trans Tech Publications, Ltd

DOI: 10.4028/www.scientific.net/amr.734-737.1511

[4] V.P. Моvchan, M.M. Berezhnyy, Fundamentals of metallurgy. Dnipropetrovk, 2001, 336. (in Russian)

[5] A.M. Amaro-Villeda, M.A. Ramirez-Argaez, A.N. Conejo, Effect of slag properties on mixing phenomena in gas-stirred ladles by physical modeling. ISIJ Int. 54 (2014) 1–8

DOI: 10.2355/isijinternational.54.1

[6] S.P. Patil, D. Satish, M. Peranandhanathan, D. Mazumdar, Mixing models for slag covered, argon stirred ladles, ISIJ Int. 50 (2010) 1117–1124

DOI: 10.2355/isijinternational.50.1117

[7] D. Mazumdar, H.B. Kim, R.I.L. Guthrie, Modelling criteria for flow simulation in gas stirred ladles: experimental study, Ironmak. Steelmak., 27 (2000) 302–309

DOI: 10.1179/030192300677598

[8] L. E. Jardón-Pérez, D. R. González-Morales, G. Trápaga, C. González-Rivera, M.A. Ramírez-Argáez, Effect of differentiated injection ratio, gas flow rate, and slag thickness on mixing time and open eye area in gas-stirred ladle assisted by physical modeling, Metals, 9 (2019) 555-569

DOI: 10.3390/met9050555

[9] K. Krishnapisharody, N.B. Ballal, P.K. Sinha, M.K. Sardar, K.N. Jha, Water model experiments on mixing phenomena in a VOD ladle, ISIJ Int., 39 (1999) 419–25

DOI: 10.2355/isijinternational.39.419

[10] J. Mandal, S. Patil, M. Madan, D. Mazumdar, Mixing time and correlation for ladles stirred with dual porous plugs, Metall. Mater. Trans. B, 36B (2005) 479–487

DOI: 10.1007/S11663-005-0039-7

[11] N. Mazumdar, A. Mahadevan, M. Madan, D. Mazumdar, Impact of ladle design on bath mixing, ISIJ Int., 45 (2005) 1940–1942

DOI: 10.2355/isijinternational.45.1940

[12] Z.Q. Liu, L.M Li, B.K. Li, Modeling of gas-steel-slag three-phase flow in ladle. Metallurgy: Part I. Physical Modeling, ISIJ Int., 57 (2017) 1971–1979

DOI: 10.2355/isijinternational.ISIJINT-2016-710

[13] V. Singh, J. Kumar, C. Bhanu, S.K. Ajmani, S.K. Dash, Optimization of the bottom tuyeres configuration for the BOF vessel using physical and mathematical modeling, ISIJ Int., 47(11) (2007) 1605-1612

DOI: 10.2355/isijinternational.47.1605

[14] L. Molchanov, T. Golub, G. Kononenko, A. Koveria, T. Kimstach, Physical modelling of additives dissolution features in the bath of an induction furnace crucible, La Metallurgia Italiana, 115(2) (2024) 52-60.

[15] T. Golub, L. Molchanov, S. Semykin, A. Koveria, Modelling the process of oxidising impurities in a metal bath using coherent nozzle, Acta Metallurgica Slovaca, 29(2) (2023) 63–66

DOI: 10.36547/ams.29.2.1733

[16] T. Stišovic, K. Koch, Bottom blowing investigations on a cold model reactor to optimise mixing behaviour in metallurgical processes, Steel Research International, 73(9) (2002) 373–377.

DOI: 10.1002/srin.200200002

[17] H. Tang, J. Liu, S. Zhang, X. Guo, J. Zhang, A novel dual plugs gas blowing mode for efficient ladle metallurgy, Ironmaking & Steelmaking, 46(5) (2019) 405-415

DOI: 10.1080/03019233.2019.1576270

[18] T. Golub, L. Molchanov, A. Koveria, L. Kieush, Study on a two-phase low-temperature model of the features of metal tapping in basic oxygen furnace, Acta Metallurgica Slovaca, 28(3) (2022) 151-156

DOI: 10.36547/ams.28.3.1566

[19] H.Y. Tang, X.C. Guo, G.H. Wu, Y. Wang, Effect of gas blown modes on mixing phenomena in a bottom stirring ladle with dual plugs, ISIJ Int., 56 (2016) 2161–2170

DOI: 10.2355/ISIJINTERNATIONAL.ISIJINT-2016-360

[20] S.-H. Cho, C. W. Kim, J. W. Han, B. D. You, D. S. Kim, Effect of melt depth and nozzle type on the mixing behavior in bottom-blown steelmaking ladle, A water model approach, Materials Science Forum, 510–511 (2006) 494–497. https://doi.org/10.4028/ www.scientific.net/msf.510-511.494

DOI: 10.4028/www.scientific.net/msf.510-511.494

[21] D. Mazumdar and J. W. Evans, Macroscopic models for gas stirred ladles, ISIJ International, 44(3) (2004) 447–461

DOI: 10.2355/isijinternational.44.447

[22] Y. Liu, M. Ersson, H. Liu, P. G. Jönsson & Y. Gan, A review of physical and numerical approaches for the study of gas stirring in ladle metallurgy, Metall. Mater. Trans. B, 50 (2019) 555–577

DOI: 10.1007/s11663-018-1446-x

[23] X. Li, S. Hu, D. Wang, T. Qu, G. Wu, P. Zhang, Q. Quan, X. Zhou, Z. Zhang, Inclusion removements in a bottom-stirring ladle with novel slot-porous matched dual plugs, Metals, 12 (2022) 162

DOI: 10.3390/met12010162

[24] M. Lv, S.Р. Chen, H.M. Guo, Y.-j. Hao & X.-d. Xing, Effect of different bottom blowing elements on stirring characteristics of molten bath in converter, J. Iron Steel Res. Int., 31 (2024) 368–376

DOI: 10.1007/s42243-023-01082-5

[25] X. Gao, K. Liu and B. Yang, Mixing effect for the bath with bottom regiment arrangements in the steelmaking converter, Metall. Res. Technol., 120(6) (2023) 610-622

DOI: 10.1051/metal/2023077

[26] R. Tiwari. B. Girard, C. Labrecque, M.M. Isac, R.I.L. Guthrie, CFD Predictions for mixing times in an elliptical ladle using single- and dual-plug configurations, Processes, 11 (2023) 1665

DOI: 10.3390/pr11061665

[27] Y. Liu, H. Bai, H. Liu, M. Ersson, P.G. Jönsson, Y. Gan, Physical and numerical modeling on the mixing condition in a 50-t ladle, Metals, 9 (2019) 1136

DOI: 10.3390/met9111136

[28] Z. Li, J. Qiu, Y. Chen, Ch. Li, F. He, K. Zhao, X. Lu, R. Liu, D. Ju, Ch. Zheng, Z. Zhu, Physical and numerical simulation for optimization of bottom blowing arrangement of 160-ton ladle, Metallurgical Research and Technology, 122(1) (2025) 118. https://

DOI: 10.1051/metal/2024111

[29] C.M. Fan, W.S. Hwang, Study of optimal Ca-Si injection position in gas stirred ladle based on water model experiment and flow simulation, Ironmak. Steelmak., 29 (2002) 415–426.

DOI: 10.1179/030192302225004638

[30] D.Yu. Kabakov, S.Ye. Samohvalov, V.P. Pipuk, O.A. Filatova, Hydrodynamic and heat transfer in steel melt modeling at electric arc heating in the ladle furnace unit, Bulletin of MSTU, 3 (2013) 33-37 (in Russian).

[31] Z. Li, W. Ouyang, Z. Wang, R. Zheng, Y. Bao, C. Gu, Physical simulation study on flow field characteristics of molten steel in 70-t ladle bottom argon blowing process, Metals, 13 (2023) 639

DOI: 10.3390/met13040639

[32] R. Cheng, L. Zhang, Y. Yin, J. Zhang, Effect of side blowing on fluid flow and mixing phenomenon in gas-stirred ladle, Metals, 11 (2021) 369

DOI: 10.3390/met11020369

[33] W. Lou, M. Zhu, Numerical simulations of inclusion behavior and mixing phenomena in gas-stirred ladles with different arrangement of tuyeres, ISIJ International, 54(1) (2014) 9–18

DOI: 10.2355/isijinternational.54.9

[34] Z. Liu, L. Li, B. Li Modeling of gas-steel-slag three-phase flow in ladle metallurgy: Part I. Physical modeling, ISIJ Int., 57 (2017) 1971–1979

DOI: 10.2355/isijinternational.ISIJINT-2016-710

[35] L. Li, C. Chen, X. Tao, H. Qi, T. Liu, Q. Yan, F. Deng, A. Allayev, W. Lin, J. Wang, Effect of salt solution tracer dosage on the transport and mixing of tracer in a water model of asymmetrical gas-stirred ladle with a moderate gas flow rate, Symmetry, 16 (2024) 619

DOI: 10.3390/sym16050619

[36] L.O.Z. Falsetti, D.N. Ferreira Muche, M.R.B. Andreeta, M.H. Moreira, V.C. Pandolfelli, Bubble generation in refractory porous plugs: The role of the ceramic surface composition, Int. J Ceramic Eng. Sci., 4 (2022) 199–210

DOI: 10.1002/ces2.10132

[37] M. Ross, Matter under extreme temperature and pressure conditions, Rep. Prog. Phys., 48(1) (1985)

DOI: 10.1088/0034-4885/48/1/001

[38] F. Tan, H. Cao, G. Lin et al. Mathematical modeling of the fluid hydrodynamics and refining effects in a gas-stirred ladle with pulsed bottom blowing, Metall. Mater. Trans. B, 55 (2024) 4624–4633

DOI: 10.1007/s11663-024-03244-6

[39] A.N. Conejo, W. Feng, Ladle eye formation due to bottom gas injection: A reassessment of experimental data, Metall. Mater. Trans. B, 53 (2022) 999–1017

DOI: 10.1007/s11663-021-02355-8

[40] U. Singh, R. Anapagaddi, S. Mangal et al. Multiphase modeling of bottom-stirred ladle for prediction of slag–steel interface and estimation of desulfurization behavior, Metall. Mater. Trans. B, 47 (2016) 1804–1816

DOI: 10.1007/s11663-016-0620-2

[41] K. Yonezawa, K. Schwerdtfeger, Correlation for area of spout eyes in ladle metallurgy (Comments on "Spout eye area correlation in ladle metallurgy" by Subagyo, Brooks and Irons), ISIJ International, 44 (1) (2004) 217-219. https://doi.org/10.2355/isijinternational. 44.217

DOI: 10.2355/isijinternational.44.217

[42] T. Merder, S. Kozłowski, J. Pieprzyca et al., Physical modeling of two-phase liquid–gas processes occurring in the refining ladle for Fe–Si alloy refining process, Sci. Rep., 14 (2024)17565

DOI: 10.1038/s41598-024-68501-9
