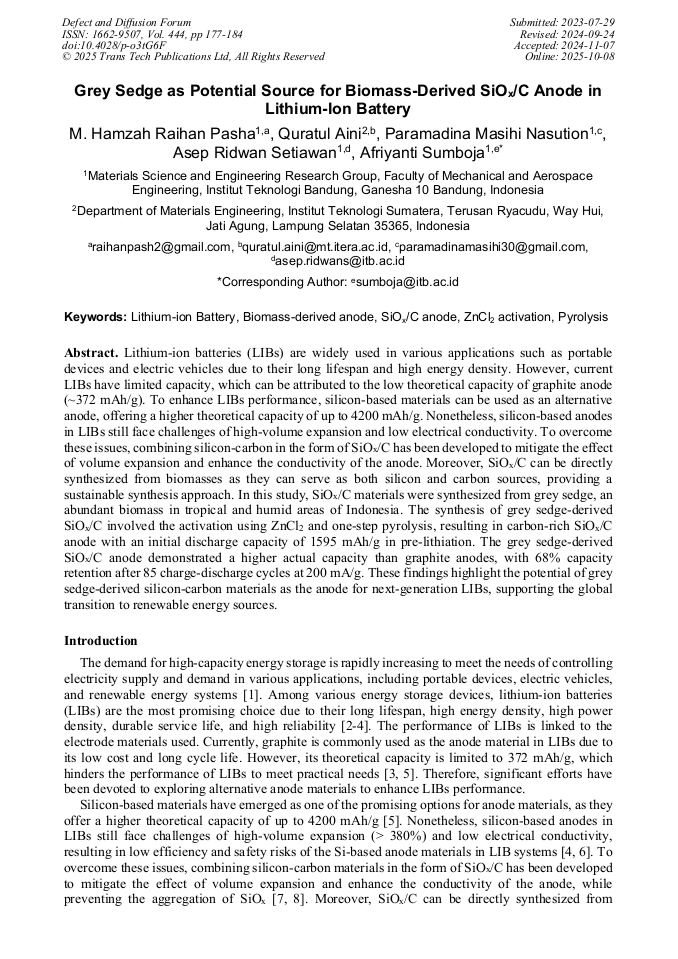

Grey Sedge as Potential Source for Biomass-Derived SiO_x/C Anode in Lithium-Ion Battery

Abstract:

Lithium-ion batteries (LIBs) are widely used in various applications such as portable devices and electric vehicles due to their long lifespan and high energy density. However, current LIBs have limited capacity, which can be attributed to the low theoretical capacity of graphite anode (~372 mAh/g). To enhance LIBs performance, silicon-based materials can be used as an alternative anode, offering a higher theoretical capacity of up to 4200 mAh/g. Nonetheless, silicon-based anodes in LIBs still face challenges of high-volume expansion and low electrical conductivity. To overcome these issues, combining silicon-carbon in the form of SiO_x/C has been developed to mitigate the effect of volume expansion and enhance the conductivity of the anode. Moreover, SiO_x/C can be directly synthesized from biomasses as they can serve as both silicon and carbon sources, providing a sustainable synthesis approach. In this study, SiO_x/C materials were synthesized from grey sedge, an abundant biomass in tropical and humid areas of Indonesia. The synthesis of grey sedge-derived SiO_x/C involved the activation using ZnCl₂ and one-step pyrolysis, resulting in carbon-rich SiO_x/C anode with an initial discharge capacity of 1595 mAh/g in pre-lithiation. The grey sedge-derived SiO_x/C anode demonstrated a higher actual capacity than graphite anodes, with 68% capacity retention after 85 charge-discharge cycles at 200 mA/g. These findings highlight the potential of grey sedge-derived silicon-carbon materials as the anode for next-generation LIBs, supporting the global transition to renewable energy sources.

• Periodical: Defect and Diffusion Forum (Volume 444)
• Pages: 177-184
• DOI: https://doi.org/10.4028/p-o3tG6F
• Online since: October 2025
• Authors: M. Hamzah Raihan Pasha, Quratul Aini, Paramadina Masihi Nasution, Asep Ridwan Setiawan, Afriyanti Sumboja*
• Keywords: Biomass-Derived Anode, Lithium-Ion Battery, Pyrolysis, SiO_x/C Anode, ZnCl₂ Activation

References

[1] A. Z. Al Shaqsi, K. Sopian, and A. Al-Hinai, "Review of energy storage services, applications, limitations, and benefits," Energy Rep., vol. 6, pp.288-306, 2020/12/01/, 2020.

DOI: 10.1016/j.egyr.2020.07.028

[2] D. Choi, N. Shamim, A. Crawford, Q. Huang, C. K. Vartanian, V. V. Viswanathan, M. D. Paiss, M. J. E. Alam, D. M. Reed, and V. L. Sprenkle, "Li-ion battery technology for grid application," J. Power Sources, vol. 511, p.230419, 2021.

DOI: 10.1016/j.jpowsour.2021.230419

[3] A. Casimir, H. Zhang, O. Ogoke, J. C. Amine, J. Lu, and G. Wu, "Silicon-based anodes for lithium-ion batteries: Effectiveness of materials synthesis and electrode preparation," Nano Energy, vol. 27, pp.359-376, 2016.

DOI: 10.1016/j.nanoen.2016.07.023

[4] M. S. Al Ja'farawy, D. N. Hikmah, U. Riyadi, A. Purwanto, and H. Widiyandari, "A Review: The Development of SiO2/C Anode Materials for Lithium-Ion Batteries," J. Electron. Mater., vol. 50, no. 12, pp.6667-6687, 2021.

DOI: 10.1007/s11664-021-09187-x

[5] T. Chen, J. Wu, Q. Zhang, and X. Su, "Recent advancement of SiOx based anodes for lithium-ion batteries," J. Power Sources, vol. 363, pp.126-144, 2017/09/30/, 2017.

DOI: 10.1016/j.jpowsour.2017.07.073

[6] M. Jiao, Y. Wang, C. Ye, C. Wang, W. Zhang, and C. Liang, "High-capacity SiO (0≤x≤2) as promising anode materials for next-generation lithium-ion batteries," J. Alloys Compd., vol. 842, p.155774, 2020.

DOI: 10.1016/j.jallcom.2020.155774

[7] Y. Chen, H. Liu, B. Jiang, Y. Zhao, X. Meng, and T. Ma, "Hierarchical porous architectures derived from low-cost biomass equisetum arvense as a promising anode material for lithium-ion batteries," J. Mol. Struct., vol. 1221, p.128794, 2020.

DOI: 10.1016/j.molstruc.2020.128794

[8] Y. Ren, and M. Li, "Facile synthesis of SiOx@C composite nanorods as anodes for lithium ion batteries with excellent electrochemical performance," J. Power Sources, vol. 306, pp.459-466, 2016/02/29/, 2016.

DOI: 10.1016/j.jpowsour.2015.12.064

[9] M. Broadley, P. Brown, I. Cakmak, J. F. Ma, Z. Rengel, and F. Zhao, "Beneficial Elements," Marschner's Mineral Nutrition of Higher Plants, pp.249-269, 2012.

DOI: 10.1016/b978-0-12-384905-2.00008-x

[10] I. Kovalenko, B. Zdyrko, A. Magasinski, B. Hertzberg, Z. Milicev, R. Burtovyy, I. Luzinov, and G. Yushin, "A Major Constituent of Brown Algae for Use in High-Capacity Li-Ion Batteries," Science, vol. 334, no. 6052, pp.75-79, 2011/10/07, 2011.

DOI: 10.1126/science.1209150

[11] Z. Gao, Y. Zhang, N. Song, and X. Li, "Biomass-derived renewable carbon materials for electrochemical energy storage," Mater. Res. Lett., vol. 5, no. 2, pp.69-88, 2017/03/04, 2017.

DOI: 10.1080/21663831.2016.1250834

[12] Y. Ju, J. A. Tang, K. Zhu, Y. Meng, C. Wang, G. Chen, Y. Wei, and Y. Gao, "SiOx/C composite from rice husks as an anode material for lithium-ion batteries," Electrochim. Acta, vol. 191, pp.411-416, 2016.

DOI: 10.1016/j.electacta.2016.01.095

[13] W. Chen, H. Liu, S. Kuang, H. Huang, T. Tang, M. Zheng, Y. Fang, and X. Yu, "In-situ low-temperature strategy from waste sugarcane leaves towards micro/meso-porous carbon network embedded nano Si-SiOx@C boosting high performances for lithium-ion batteries," Carbon, vol. 179, pp.377-386, 2021.

DOI: 10.1016/j.carbon.2021.04.043

[14] H. Xu, S. Zhang, W. He, X. Zhang, G. Yang, J. Zhang, X. Shi, and L. Wang, "SiO2–carbon nanocomposite anodes with a 3D interconnected network and porous structure from bamboo leaves," RSC Adv., vol. 6, no. 3, pp.1930-1937, 2016.

DOI: 10.1039/c5ra19961a

[15] M. Janyszek-Sołtysiak, M. Grzelak, P. Gajewski, A. Jagodziński, E. Gaweł, and D. Wronska-Pilarek, "Mineral Contents in Aboveground Biomass of Sedges (Carex L., Cyperaceae)," Energies, vol. 14, p.8007, 11/30, 2021.

DOI: 10.3390/en14238007

[16] B. Prakoso, Y. Ma, R. Stephanie, N. H. Hawari, V. Suendo, H. Judawisastra, Y. Zong, Z. Liu, and A. Sumboja, "Facile synthesis of battery waste-derived graphene for transparent and conductive film application by an electrochemical exfoliation method," RSC Adv., vol. 10, no. 17, pp.10322-10328, 2020.

DOI: 10.1039/d0ra01100b

[17] Z. Li, H. Zhao, J. Wang, T. Zhang, B. Fu, Z. Zhang, and X. Tao, "Rational structure design to realize high-performance SiOx@C anode material for lithium ion batteries," Nano Res., vol. 13, no. 2, pp.527-532, 2020.

DOI: 10.1007/s12274-020-2644-9

[18] J. Song, S. Guo, L. Kou, K. Kajiyoshi, J. Su, W. Huang, Y. Li, and P. Zheng, "Controllable synthesis Honeycomb‐like structure SiOx/C composites as anode for high-performance lithium-ion batteries," Vacuum, vol. 186, p.110044, 2021.

DOI: 10.1016/j.vacuum.2021.110044

[19] I. Yakub, M. Mohammad, and Z. Yaakob, "Effects of Zinc Chloride Impregnation on the Characteristics of Activated Carbon Produced from Physic Nut Seed Hull," Adv. Mater. Res., vol. 626, pp.751-755, 2012.

DOI: 10.4028/www.scientific.net/amr.626.751

[20] X. Du, W. Zhao, S. Ma, M. Ma, T. Qi, Y. Wang, and C. Hua, "Effect of ZnCl2 impregnation concentration on the microstructure and electrical performance of ramie-based activated carbon hollow fiber," Ionics, vol. 22, no. 4, pp.545-553, 2015.

DOI: 10.1007/s11581-015-1571-3

[21] B. Li, J. Hu, H. Xiong, and Y. Xiao, "Application and Properties of Microporous Carbons Activated by ZnCl(2): Adsorption Behavior and Activation Mechanism," ACS Omega, vol. 5, no. 16, pp.9398-9407, Apr 28, 2020.

DOI: 10.1021/acsomega.0c00461

[22] Q. Aini, Y. Irmawati, J. Karunawan, M. H. R. Pasha, A. Alni, F. Iskandar, and A. Sumboja, "Para Grass-Derived Porous Carbon-Rich SiOx/C as a Stable Anode for Lithium-Ion Batteries," Energy Fuels, 2023/07/24, 2023.

DOI: 10.1021/acs.energyfuels.3c01678

[23] Y. Chen, Y. Kang, Y. Zhao, L. Wang, J. Liu, Y. Li, Z. Liang, X. He, X. Li, N. Tavajohi, and B. Li, "A review of lithium-ion battery safety concerns: The issues, strategies, and testing standards," J. Energy Chem., vol. 59, pp.83-99, 2021.

DOI: 10.1016/j.jechem.2020.10.017

[24] K. W. Schroder, H. Celio, L. J. Webb, and K. J. Stevenson, "Examining Solid Electrolyte Interphase Formation on Crystalline Silicon Electrodes: Influence of Electrochemical Preparation and Ambient Exposure Conditions," J. Phys. Chem. C, vol. 116, no. 37, pp.19737-19747, 2012/09/20, 2012.

DOI: 10.1021/jp307372m

[25] K. W. Schroder, A. G. Dylla, S. J. Harris, L. J. Webb, and K. J. Stevenson, "Role of Surface Oxides in the Formation of Solid–Electrolyte Interphases at Silicon Electrodes for Lithium-Ion Batteries," ACS Appl Mater Interfaces, vol. 6, no. 23, pp.21510-21524, 2014/12/10, 2014.

DOI: 10.1021/am506517j

[26] X. Gao, Y. Gao, Q. Li, Y. Wang, D. Zhao, G. Xu, Z. Zhong, and F. Su, "Scalable synthesis of high-performance anode material SiOx/C for lithium-ion batteries by employing the Rochow reaction process," J. Alloys Compd., vol. 902, p.163668, 2022.

DOI: 10.1016/j.jallcom.2022.163668
