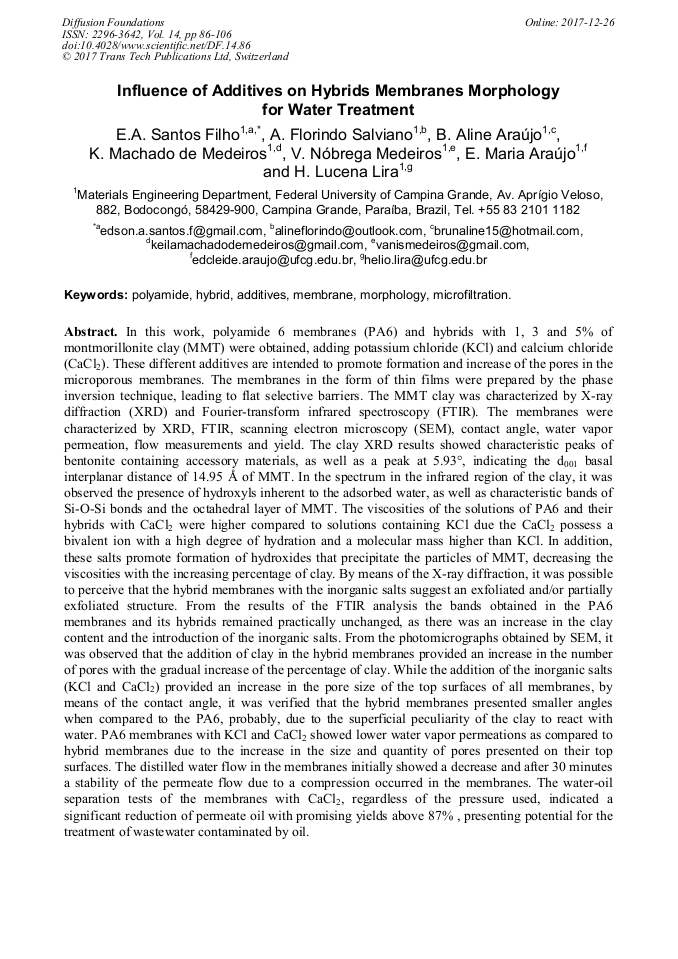

Influence of Additives on Hybrids Membranes Morphology for Water Treatment

Abstract:

In this work, polyamide 6 membranes (PA6) and hybrids with 1, 3 and 5% of montmorillonite clay (MMT) were obtained, adding potassium chloride (KCl) and calcium chloride (CaCl₂). These different additives are intended to promote formation and increase of the pores in the microporous membranes. The membranes in the form of thin films were prepared by the phase inversion technique, leading to flat selective barriers. The MMT clay was characterized by X-ray diffraction (XRD) and Fourier-transform infrared spectroscopy (FTIR). The membranes were characterized by XRD, FTIR, scanning electron microscopy (SEM), contact angle, water vapor permeation, flow measurements and yield. The clay XRD results showed characteristic peaks of bentonite containing accessory materials, as well as a peak at 5.93°, indicating the d₀₀₁ basal interplanar distance of 14.95 Å of MMT. In the spectrum in the infrared region of the clay, it was observed the presence of hydroxyls inherent to the adsorbed water, as well as characteristic bands of Si-O-Si bonds and the octahedral layer of MMT. The viscosities of the solutions of PA6 and their hybrids with CaCl₂ were higher compared to solutions containing KCl due the CaCl₂ possess a bivalent ion with a high degree of hydration and a molecular mass higher than KCl. In addition, these salts promote formation of hydroxides that precipitate the particles of MMT, decreasing the viscosities with the increasing percentage of clay. By means of the X-ray diffraction, it was possible to perceive that the hybrid membranes with the inorganic salts suggest an exfoliated and/or partially exfoliated structure. From the results of the FTIR analysis the bands obtained in the PA6 membranes and its hybrids remained practically unchanged, as there was an increase in the clay content and the introduction of the inorganic salts. From the photomicrographs obtained by SEM, it was observed that the addition of clay in the hybrid membranes provided an increase in the number of pores with the gradual increase of the percentage of clay. While the addition of the inorganic salts (KCl and CaCl₂) provided an increase in the pore size of the top surfaces of all membranes, by means of the contact angle, it was verified that the hybrid membranes presented smaller angles when compared to the PA6, probably, due to the superficial peculiarity of the clay to react with water. PA6 membranes with KCl and CaCl₂ showed lower water vapor permeations as compared to hybrid membranes due to the increase in the size and quantity of pores presented on their top surfaces. The distilled water flow in the membranes initially showed a decrease and after 30 minutes a stability of the permeate flow due to a compression occurred in the membranes. The water-oil separation tests of the membranes with CaCl₂, regardless of the pressure used, indicated a significant reduction of permeate oil with promising yields above 87% , presenting potential for the treatment of wastewater contaminated by oil.
