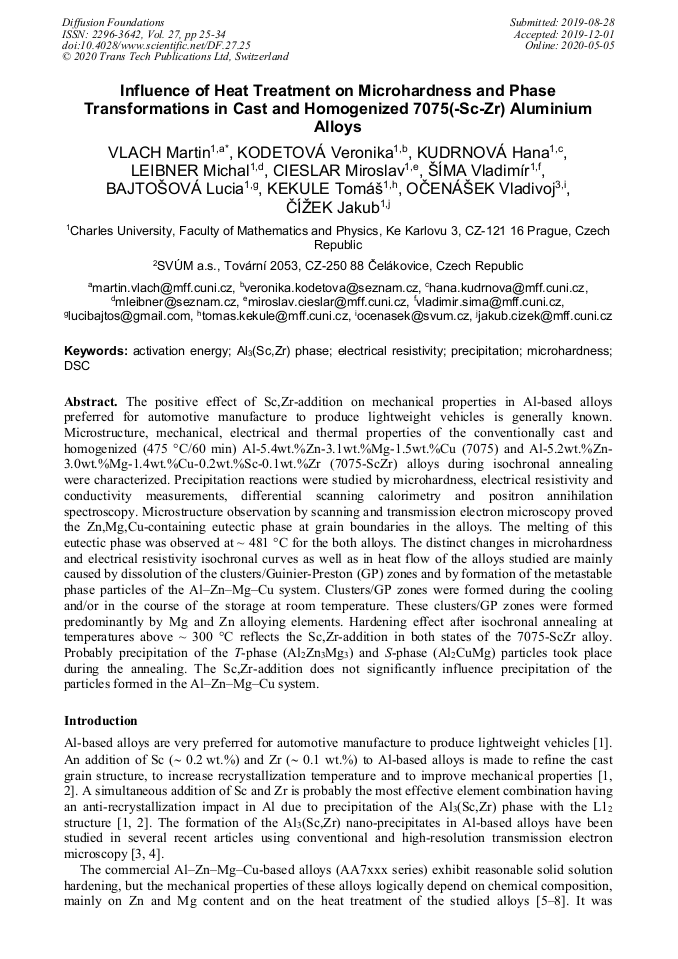

Influence of Heat Treatment on Microhardness and Phase Transformations in Cast and Homogenized 7075(-Sc-Zr) Aluminium Alloys

Abstract:

The positive effect of Sc,Zr-addition on mechanical properties in Al-based alloys preferred for automotive manufacture to produce lightweight vehicles is generally known. Microstructure, mechanical, electrical and thermal properties of the conventionally cast and homogenized (475 °C/60 min) Al-5.4wt.%Zn-3.1wt.%Mg-1.5wt.%Cu (7075) and Al-5.2wt.%Zn-3.0wt.%Mg-1.4wt.%Cu-0.2wt.%Sc-0.1wt.%Zr (7075-ScZr) alloys during isochronal annealing were characterized. Precipitation reactions were studied by microhardness, electrical resistivity and conductivity measurements, differential scanning calorimetry and positron annihilation spectroscopy. Microstructure observation by scanning and transmission electron microscopy proved the Zn,Mg,Cu-containing eutectic phase at grain boundaries in the alloys. The melting of this eutectic phase was observed at ~ 481 °C for the both alloys. The distinct changes in microhardness and electrical resistivity isochronal curves as well as in heat flow of the alloys studied are mainly caused by dissolution of the clusters/Guinier-Preston (GP) zones and by formation of the metastable phase particles of the Al–Zn–Mg–Cu system. Clusters/GP zones were formed during the cooling and/or in the course of the storage at room temperature. These clusters/GP zones were formed predominantly by Mg and Zn alloying elements. Hardening effect after isochronal annealing at temperatures above ~ 300 °C reflects the Sc,Zr-addition in both states of the 7075-ScZr alloy. Probably precipitation of the T-phase (Al₂Zn₃Mg₃) and S-phase (Al₂CuMg) particles took place during the annealing. The Sc,Zr-addition does not significantly influence precipitation of the particles formed in the Al–Zn–Mg–Cu system.

• Periodical: Diffusion Foundations (Volume 27)
• Pages: 25-34
• DOI: https://doi.org/10.4028/www.scientific.net/DF.27.25
• Online since: May 2020
• Authors: Martin Vlach*, Veronika Kodetová, Hana Kudrnová, Michal Leibner, Miroslav Cieslar, Vladimír Šíma, Lucia Bajtošová, Tomáš Kekule, Vladivoj Očenášek, Jakub Čížek
• Keywords: Activation Energy, Al₃( Sc,Zr) Phase, DSC, Electrical Resistivity, Microhardness, Precipitation

References

[1] L. S. Toropova, D. G. Eskin, M. L. Kharakterova and T. V. Dobatkina, in: Advanced Aluminium Alloys Containing Scandium – Structure and Properties, Gordon and Breach Science Publisher, The Netherlands (1998).

DOI: 10.4324/9781315097541

[2] M. Vlach, I. Stulíková, B. Smola, T. Kekule, H. Kudrnova, V. Kodetova, V. Ocenasek, J. Malek and V. Neubert: Kovové Materiály-Metallic Materials 53 (2015) 5, p.295.

DOI: 10.4028/www.scientific.net/ddf.354.93

[3] N. Q. Vo, D. C. Dunand and D. N. Seidman: Mater. Sci. Eng. A 677 (2016), p.485.

[4] Ch. Booth-Morrison, D. C. Dunand and D. N. Seidman: Acta Mater. 59 (2011), p.7029.

[5] K. R. Prasanta, M. M. Ghosh and K. S. Ghosh: Mater. Characterization 104 (2015), p.49.

[6] N. Afify, A. Gaber and G. Abbady: Mater. Sci. App. 2 (2011) 5, p.427.

[7] K. S. Ghosh, N. Gao and M. J. Starink: Mater. Sci. Eng. A 552 (2012), p.164.

[8] K. S. Ghosh and N. Gao: Trans. Non. Met. Soc. China 21 (2011) 6, p.1199.

[9] C. Antonione, F. Marino and G. Riontino: Mater. Chem. Phys. 20 (1988), p.13.

[10] S. Abis and G. Riontino: Mater. Lett. 5 (1987) 11–12, p.442.

[11] M. Vlach, V. Kodetová, B. Smola, J. Čížek, T. Kekule, M. Cieslar, H. Kudrnova, L. Bajtošová, M. Leibner, I. Procházka: Kovové Materiály-Metallic Materials 56 (2018) 6, p.367.

DOI: 10.4149/km_2018_6_367

[12] F. Bečvář, J. Čížek, I. Procházka, J. Janotová: Nucl. Inst. Methods Phys. Res. A 539 (2005), p.372.

[13] J. Čížek, M. Vlček, I. Procházka: Nucl. Inst. Meth. in Phys. Research A 623 (2010), p.982.

[14] M. Vlach, J. Čížek, O. Melikhova, I. Stulíková, B. Smola, T. Kekule, H. Kudrnová, R. Gemma, V. Neubert : Metall. Mater. Trans. A 46 (2015), p.1556.

[15] V. Kodetova, M. Vlach, J. Cizek, M. Cieslar, L. Bajtosova, H. Kudrnova, M. Leibner: Acta Phys. Pol. (a) (2020), in press.

DOI: 10.1016/j.matdes.2020.108821

[16] G. Dlubek, R. Krause, O. Brommer: J. Mater. Sci. 21 (1986), p.853.

[17] T. M. Hall, A. N. Goland, C. L. Snead: Phys. Rev. B 10 (1974), p.3062.

[18] M. Liu, J. Čížek, C. S. T. Chang, J. Banhart: Acta Mater. 91 (2015), p.355.

[19] M. Vlach, J. Čížek, B. Smola, O. Melikhova, M. Vlček,V. Kodetová, H. Kudrnová, P. Hruška: Mater. Characterization 129 (2017), p.1.

DOI: 10.1016/j.matchar.2017.04.017

[20] M. J. Starink: Thermochim. Acta 404 (2003), p.163.

[21] C. Antonione, F. Marino, G. Riontino, S. Abis, E. Russo: Mater. Chem. Phys. 20 (1988), p.13.
