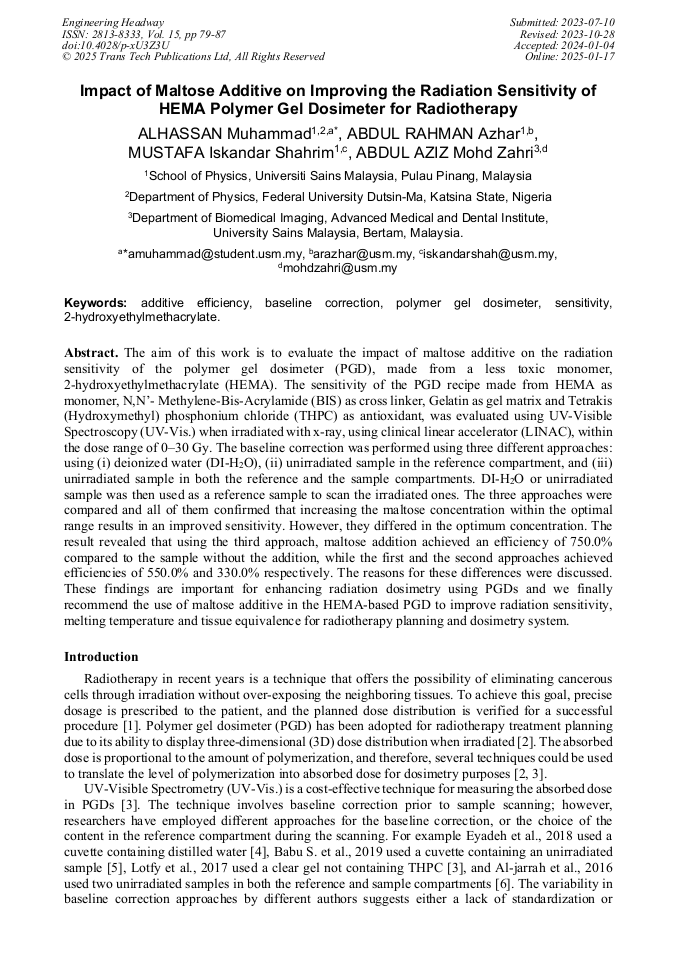

Impact of Maltose Additive on Improving the Radiation Sensitivity of HEMA Polymer Gel Dosimeter for Radiotherapy

Abstract:

The aim of this work is to evaluate the impact of maltose additive on the radiation sensitivity of the polymer gel dosimeter (PGD), made from a less toxic monomer, 2-hydroxyethylmethacrylate (HEMA). The sensitivity of the PGD recipe made from HEMA as monomer, N,N’- Methylene-Bis-Acrylamide (BIS) as cross linker, Gelatin as gel matrix and Tetrakis (Hydroxymethyl) phosphonium chloride (THPC) as antioxidant, was evaluated using UV-Visible Spectroscopy (UV-Vis.) when irradiated with x-ray, using clinical linear accelerator (LINAC), within the dose range of 0–30 Gy. The baseline correction was performed using three different approaches: using (i) deionized water (DI-H₂O), (ii) unirradiated sample in the reference compartment, and (iii) unirradiated sample in both the reference and the sample compartments. DI-H₂O or unirradiated sample was then used as a reference sample to scan the irradiated ones. The three approaches were compared and all of them confirmed that increasing the maltose concentration within the optimal range results in an improved sensitivity. However, they differed in the optimum concentration. The result revealed that using the third approach, maltose addition achieved an efficiency of 750.0% compared to the sample without the addition, while the first and the second approaches achieved efficiencies of 550.0% and 330.0% respectively. The reasons for these differences were discussed. These findings are important for enhancing radiation dosimetry using PGDs and we finally recommend the use of maltose additive in the HEMA-based PGD to improve radiation sensitivity, melting temperature and tissue equivalence for radiotherapy planning and dosimetry system.

• Periodical: Engineering Headway (Volume 15)
• Pages: 79-87
• DOI: https://doi.org/10.4028/p-xU3Z3U
• Online since: January 2025
• Authors: Alhassan Muhammad*, Abdul Rahman Azhar, Iskandar Shahrim Mustafa, Abdul Aziz Mohd Zahri
• Keywords: 2-hydroxyethylmethacrylate, Additive Efficiency, Baseline Correction, Polymer Gel Dosimeter, Sensitivity

References

[1] M. Kozicki, A. Berg, P. Maras, M. Jaszczak, M. Dudek, Clinical radiotherapy application of N-vinylpyrrolidone-containing 3D polymer gel dosimeters with remote external MR-reading, Phys. Medica. 69 (2019) 134–146.

DOI: 10.1016/j.ejmp.2019.11.014

[2] A.S. Mustaqim, N.Z. Yahaya, N.N.A. Razak, H. Zin, The dose enhancement of MAGAT gel dosimeter doped with zinc oxide at 6 MV photon beam, Radiat. Phys. Chem. 172 (2020) 108739.

DOI: 10.1016/j.radphyschem.2020.108739

[3] S. Lotfy, A.A. Basfar, B. Moftah, A.A. Al-Moussa, Comparative study of nuclear magnetic resonance and UV–visible spectroscopy dose-response of polymer gel based on N-(Isobutoxymethyl) acrylamide, Nucl. Instruments Methods Phys. Res. Sect. B Beam Interact. with Mater. Atoms. 413 (2017) 42–50.

DOI: 10.1016/j.nimb.2017.09.033

[4] M.M. Eyadeh, K.A. Rabaeh, T.F. Hailat, F.M. Aldweri, Evaluation of ferrous Methylthymol blue gelatin gel dosimeters using nuclear magnetic resonance and optical techniques, Radiat. Meas. 108 (2018) 26–33.

DOI: 10.1016/j.radmeas.2017.11.004

[5] E.S. Babu S, B.S. T. Peace, M. Rafic K, W.M. Raj E, S. Christopher J, P. Ravindran B, Escalation of optical transmittance and determination of diffusion co-efficient in low-bloom strength gelatin-based Fricke gel dosimeters, Radiat. Phys. Chem. 156 (2019) 300–306.

DOI: 10.1016/j.radphyschem.2018.10.001

[6] A.M. Al-jarrah, A. Abdul Rahman, I. Shahrim, N.N.A.N.A. Razak, B. Ababneh, E.T. Tousi, Effect of inorganic salts and glucose additives on dose–response, melting point and mass density of genipin gel dosimeters, Phys. Medica. 32 (2016) 36–41.

DOI: 10.1016/j.ejmp.2015.09.003

[7] Z.A. Nezhad, G. Geraily, W. Parwaie, S. Zohari, A novel investigation of the effect of different concentrations of methacrylic acid on the dose response of MAGAT gel dosimeter in intraoperative radiotherapy, Radiat. Phys. Chem. 179 (2021) 109214.

DOI: 10.1016/j.radphyschem.2020.109214

[8] Y. De Deene, Essential characteristics of polymer gel dosimeters, J. Phys. Conf. Ser. 3 (2004) 34–57.

DOI: 10.1088/1742-6596/3/1/006

[9] B. Farhood, G. Geraily, S. Mohammad, M. Abtahi, A systematic review of clinical applications of polymer gel dosimeters in radiotherapy, Appl Radiat Isot. 143 (2019) 47–59.

DOI: 10.1016/j.apradiso.2018.08.018

[10] A. Aliasgharzadeh, V. Anaraki, D. Khoramian, M. Ghorbani, B. Farhood, The impact of various amounts of fabricating components on the response of PASSAG polymer gel dosimeter: An optimization study, Radiat. Phys. Chem. 190 (2022) 109804.

DOI: 10.1016/j.radphyschem.2021.109804

[11] D. Chacón, M. Strumia, M. Valente, F. Mattea, Effect of inorganic salts and matrix crosslinking on the dose response of polymer gel dosimeters based on acrylamide, Radiat. Meas. 117 (2018) 7–18.

DOI: 10.1016/j.radmeas.2018.07.004

[12] K.A. Rabaeh, M.S. Al-Ajaleen, M.H. Abuzayed, F.M. Aldweri, M.M. Eyadeh, High dose sensitivity of N-(isobutoxymethyl)acrylamide polymer gel dosimeters with improved monomer solubility using acetone co-solvent, Nucl. Instruments Methods Phys. Res. Sect. B Beam Interact. with Mater. Atoms, 442 (2019) 67–72.

DOI: 10.1016/j.nimb.2019.01.029

[13] B. Berndt, P.S. Skyt, L. Holloway, R. Hill, A. Sankar, Y. De Deene, Do saccharide doped PAGAT dosimeters increase accuracy?, J. Phys. Conf. Ser. 573 (2015) 012029.

DOI: 10.1088/1742-6596/573/1/012029

[14] M. Yoshioka, S. Hayashi, S. Usui, K. Haneda, T. Kondo, H. Numasaki, T. Teshima, T. Tominaga, Improved dose sensitivity of normoxic polyacrylamide gelatin gel dosimeter with sucrose, J. Phys. Conf. Ser. 250 (2010) 012016.

DOI: 10.1088/1742-6596/250/1/012016

[15] M. Hassan, A. Ur Rehman, M.M. Waheed, M.N. Anjum, Dose of radiation enhancement, using silver nanoparticles in a human tissue equivalent gel dosimeter, J. Pak. Med. Assoc. 66 (2016) 45–48.

[16] B. Farhood, G. Geraily, S.M.M. Abtahi, A systematic review of clinical applications of polymer gel dosimeters in radiotherapy, Appl. Radiat. Isot. 143 (2019) 47–59.

DOI: 10.1016/j.apradiso.2018.08.018
