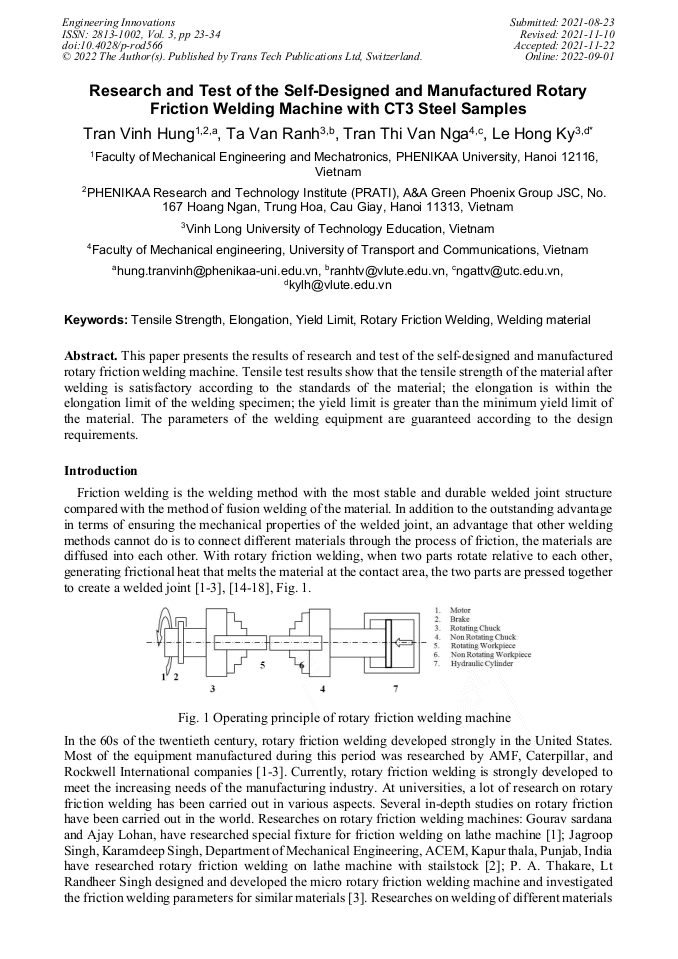

Research and Test of the Self-Designed and Manufactured Rotary Friction Welding Machine with CT3 Steel Samples

Abstract:

This paper presents the results of research and test of the self-designed and manufactured rotary friction welding machine. Tensile test results show that the tensile strength of the material after welding is satisfactory according to the standards of the material; the elongation is within the elongation limit of the welding specimen; the yield limit is greater than the minimum yield limit of the material. The parameters of the welding equipment are guaranteed according to the design requirements.

• Periodical: Engineering Innovations (Volume 3)
• Pages: 23-34
• DOI: https://doi.org/10.4028/p-rod566
• Online since: September 2022
• Authors: Tran Vinh Hung, Ta Van Ranh, Tran Thi Van Nga, Le Hong Ky*
• Keywords: Hardness, Heat Treatment, High Tempering, Mechanical Properties, Relative Elongation, Strength, Turbine, Turbocharger, Yield Strength
