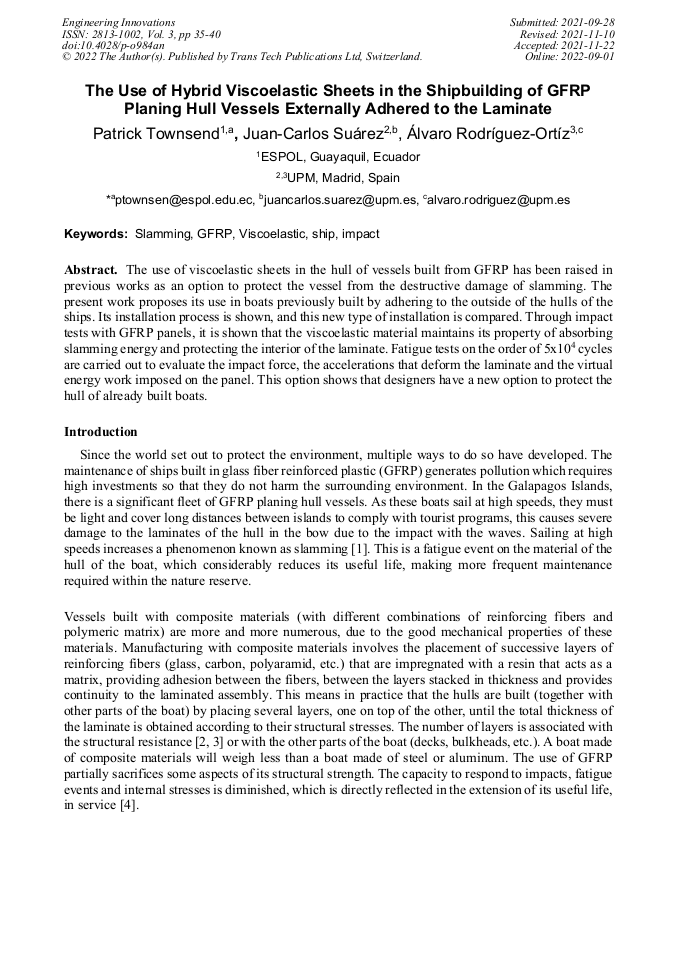

The Use of Hybrid Viscoelastic Sheets in the Shipbuilding of GFRP Planing Hull Vessels Externally Adhered to the Laminate

Abstract:

The use of viscoelastic sheets in the hull of vessels built from GFRP has been raised in previous works as an option to protect the vessel from the destructive damage of slamming. The present work proposes its use in boats previously built by adhering to the outside of the hulls of the ships. Its installation process is shown, and this new type of installation is compared. Through impact tests with GFRP panels, it is shown that the viscoelastic material maintains its property of absorbing slamming energy and protecting the interior of the laminate. Fatigue tests on the order of 5x10⁴ cycles are carried out to evaluate the impact force, the accelerations that deform the laminate and the virtual energy work imposed on the panel. This option shows that designers have a new option to protect the hull of already built boats.

• Periodical: Engineering Innovations (Volume 3)
• Pages: 35-40
• DOI: https://doi.org/10.4028/p-o984an
• Online since: September 2022
• Authors: Patrick Roger Townsend Valencia*, Juan Carlos Suárez, Alvaro Rodríguez-Ortìz
• Keywords: GFRP, Impact, Ship, Slamming, Viscoelastic

References

[1] Kapfenberg, G., Veer, A., Whipping loads due to aft body slamming. 24th Symposium on Naval Hydrodynamics, Japan. pp.336-337 (2002).

[2] Qin, Z., Batra, R., Local slamming impact of sandwich composite hulls. International Journal of Solids and Structures. Vol 46, pp.2011-2035. (2009).

DOI: 10.1016/j.ijsolstr.2008.04.019

[3] Baucoma, J., Zikryb, M., Low-velocity impact damage progression in woven E-glass composite systems Composites Part A. Applied Science and Manufacturing, Vol 36, section 5, p.658–664. (2005).

DOI: 10.1016/j.compositesa.2004.07.008

[4] Belingardini, G., Bador, V., Low velocity impact tests of laminate glass-fiber-epoxy matrix composite material plates International Journal of Impact Engineering, Vol 27, section 2, pp.213-219. (2002).

DOI: 10.1016/s0734-743x(01)00040-9

[5] Blake, J., Shenoi, R., Strength modelling in stiffened FRP structures with viscoelastic inserts for ocean structures. University of Southampton, UK Ocean Engineering, Vol 29, p.849–869. (2002).

DOI: 10.1016/s0029-8018(01)00057-9

[6] Suárez, J.C., The effect of slamming impact on out-of-autoclave cured prepregs of GFRP composite panels for hulls. Science Direct, Procedia Engineering, Vol 167, p.252 – 26. (2016).

DOI: 10.1016/j.proeng.2016.11.695

[7] Townsend, P. Suárez, J.C. Reduction of slamming damage in the hull of high-speed crafts manufactured from composite materials using viscoelastic layers, Ocean Engineering, Vol 159, pp.253-267. (2018).

DOI: 10.1016/j.oceaneng.2018.04.029

[8] Dominguez F., Carral. L., The Hybrid Joints between an FRP Panel and a Steel Panel through Tubular Reinforcements: A Methodology for Interlaminar Stress Calculations. Applied Physics., 10(11), 3962; https://doi.org/10.3390/app10113962. (2020).

DOI: 10.3390/app10113962
