Numerical Investigation of the Adhesive Damage Used for the Repair of A5083 H11 Aluminum Structures by Composites Patches

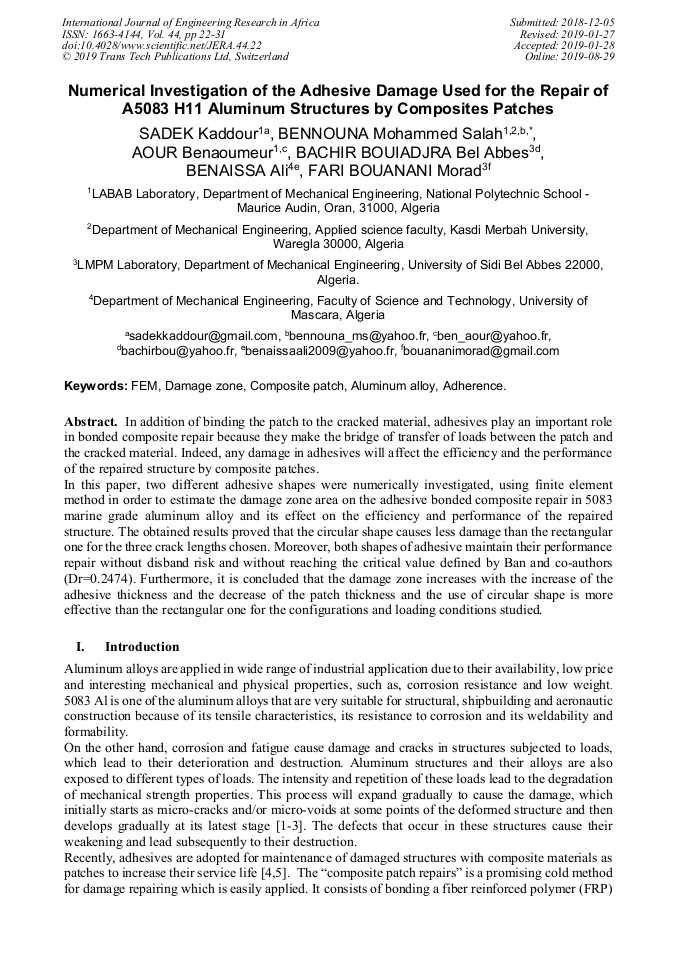

Article Preview

Abstract:

In addition of binding the patch to the cracked material, adhesives play an important role in bonded composite repair because they make the bridge of transfer of loads between the patch and the cracked material. Indeed, any damage in adhesives will affect the efficiency and the performance of the repaired structure by composite patches.In this paper, two different adhesive shapes were numerically investigated, using finite element method in order to estimate the damage zone area on the adhesive bonded composite repair in 5083 marine grade aluminum alloy and its effect on the efficiency and performance of the repaired structure. The obtained results proved that the circular shape causes less damage than the rectangular one for the three crack lengths chosen. Moreover, both shapes of adhesive maintain their performance repair without disband risk and without reaching the critical value defined by Ban and co-authors (Dr=0.2474). Furthermore, it is concluded that the damage zone increases with the increase of the adhesive thickness and the decrease of the patch thickness and the use of circular shape is more effective than the rectangular one for the configurations and loading conditions studied.

You might also be interested in these eBooks

International Journal of Engineering Research in Africa Vol. 44

Info:

Periodical:

International Journal of Engineering Research in Africa (Volume 44)

Pages:

22-31

DOI:

https://doi.org/10.4028/www.scientific.net/JERA.44.22

Citation:

Cite this paper

Online since:

August 2019

Authors:

Sadek Kaddour, Mohammed Salah Bennouna*, Benaoumeur Aour, Bel Abbès Bachir Bouiadjra, Ali Benaissa, Morad Fari Bouanani

Keywords:

A5083, Adherence, Composite Patch, Damage Zone, FEA Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] S.K. Thakur, M.Gupta, Improving mechanical performance of Al by using Ti as reinforcement, Compos part A Appl. Sci. Manuf. 38 (2007) 1010–1018.

DOI: 10.1016/j.compositesa.2006.06.014

[2] J. Lemaıtre, J.L. Chaboche,,Mécanique des Matériaux Solides, Dunod,,Paris, (1985).

[3] L. Hollaway, J.G. Teng, Strengthening and Rehabilitation of Civil infrastructures Using Fibre-reinforced Polymer (FRP) Composites., Woodhead Publishing Limited, Cambridge, England, (2008).

DOI: 10.1533/9781845694890

[4] A.A. Baker., R. Jones., Bonded repair of aircraft structures, Dordrecht: Martinus Nijhoff. (1988).

[5] M.R. Lena., J.C. Klug., C.T. Sun., Composite patches as reinforcements and crack arrestors in aircraft structures, J. Aircraft, 35(2) (1998) 318-323.

DOI: 10.2514/2.2302

[6] T. Achour., B. Bachir Bouiadjra ., B. Serier., Numerical analysis of the performances of the Bonded composite patch for reducing stress concentration and repairing cracks at notch, Comput. Mater. Sci. 28 (2003) 41-48.

DOI: 10.1016/s0927-0256(03)00054-5

[7] J. Harald., L. Grave, T. Andreas Echtermeyer, Strain fields in adhesively bonded patch repairs of damaged Metallic beams, Polym. Test. 48 (2015) 50-58.

DOI: 10.1016/j.polymertesting.2015.09.013

[8] V.M. Karbhari, Rehabilitation of Metallic Civil Infrastructure Using Fiber Reinforced Polymer (FRP) Composites: Types Properties and Testing Methods, 1st Edition, Woodhead Publishing, (2014).

DOI: 10.1016/b978-0-85709-653-1.50019-6

[9] J.M.C. Cadei, T.J. Stratford, L.C. Hollaway, W.J. Duckett, Strengthening metallic structures using externally bonded fibre-reinforced composites. CIRIA C595 Technical Report, (2004).

DOI: 10.1533/9781845690649.7.693

[10] S.J. Groth., A method to predict fracture in an adhesively bonded joint, Int. J. Adhes. Adhes. A5 (1985) 19-22.

[11] A.A. Baker, R.J. Chester, Recent advances in bonded composite repair technology for metallic aircraft components, Proceeding of the International Conference on Ad Comp Materials, 45-9, (1993).

[12] R. Jones., W.K. Chiu, Composite repairs to cracks in thick metallic components, Compos. Struct. 44(1) (1999) 17-29.

DOI: 10.1016/s0263-8223(98)00108-1

[13] H. Beloufa, D. Ouinas, M. Tarfaoui, N. Benderdouche, Effect of stacking sequence of the bonded composite patch on repair performance, Struct. Eng. Mech., 57(2) (2016) 295-313.

DOI: 10.12989/sem.2016.57.2.295

[14] M. Fari Bouanani, F. Benyahia , A. Albedah , A. Aid , B. Bachir Bouiadjra, M. Belhouari, T. Achour , Analysis of the adhesive failure in bonded composite repair of aircraft structures using modified damage zone theory, Mater. Design A50 (2013) 433-439.

DOI: 10.1016/j.matdes.2013.03.017

[15] C.S. Ban, Y.H. Lee, J.H. Choi, J.H. Kweon, Strength prediction of adhesive joints using the modified damage zone theory, Compos. Struct. 86 (2008) 96-100.

DOI: 10.1016/j.compstruct.2008.03.016

[16] A. Sheppard, D. Kelly, L. Tong, A damage zone model for the failure analysis of adhesively bonded joints, Int. J. Adhes. Adhes. 18 (1998) 385-400.

DOI: 10.1016/s0143-7496(98)00024-4

[17] I. Nour Chafak, M. Fari Bouanani, B. Bachir Bouiadjra, B. Serier, Analysis of the adhesive damage between composite and metallic adherends: Application to the repair of aircraft structures, Adv. Mater. Res. 5(1) (2016) 11-20.

DOI: 10.12989/amr.2016.5.1.011

[18] K. Sadek, B. Aour, B.B. Bouiadjra, M. Fari Bouanani, F. Khelil, Analysis of Crack Propagation by Bonded Composite for Different Patch Shapes Repairs in Marine Structures: A Numerical Analysis, Int. J. Eng. Res. Afr. 35 (2018) 175-184.

DOI: 10.4028/www.scientific.net/jera.35.175

[19] D. Ouinas, B.B. Bouiadjra, B. Serier, The effects of disbands on the stress intensity factor of aluminum panels repaired using composite materials, Compos. Struct. 78 (2007) 278-84.

DOI: 10.1016/j.compstruct.2005.10.012

[20] D. Ouinas, B.B. Bouiadjra, T. Achour, N. Benderdouche, Influence of disbond on notch crack behaviour in single bonded lap joints, Mater. Design, 31(9) (2010) 4356-4362.

DOI: 10.1016/j.matdes.2010.03.048

[21] B.B. Bouiadjra, W. Oudad, A. Albedah, F. Benyahia, M. Belhouari., Effects of the adhesive disband on the performances of bonded composite repairs in aircraft structures, Mater. Design 37 (2012) 89-95.

DOI: 10.1016/j.matdes.2011.12.028

[22] D. Ouinas, B.B. Bouiadjra, S. Himouri, N. Benderdouche, Progressive edge cracked aluminium plate repaired with adhesively bonded composite patch under full width disband, Compos. B Eng. 43 (2012) 805-811.

DOI: 10.1016/j.compositesb.2011.08.022
