Design and Performance Analysis of Fuzzy Sliding Mode Controller for Maximum Power Point Tracking Photovoltaic Water Pumping System (Case Study: Bahir Dar University Health Science College, Bahir Dar, Ethiopia)

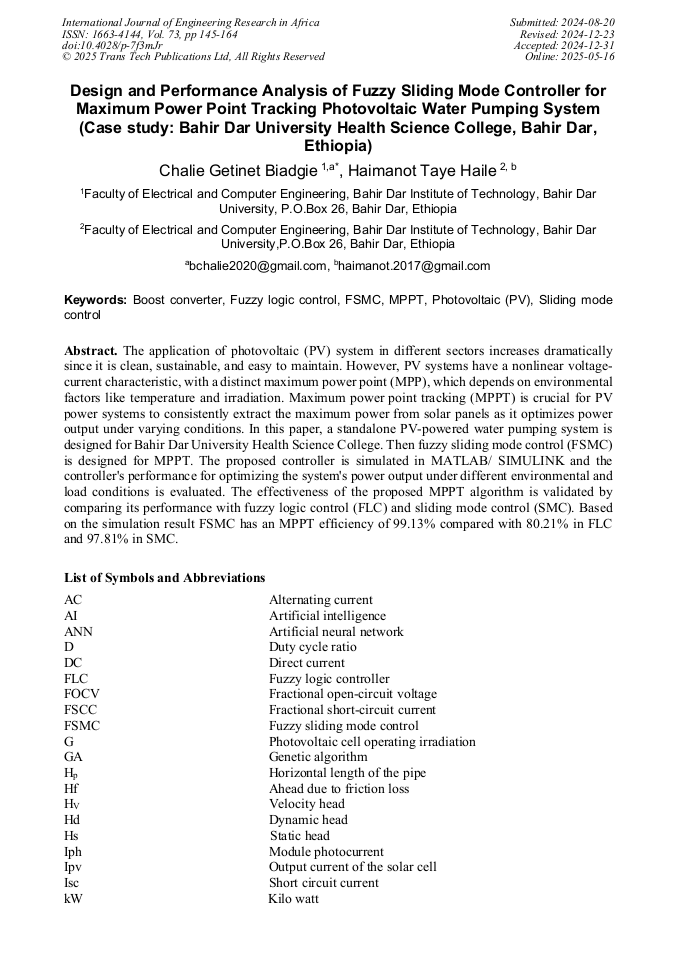

Article Preview

Abstract:

The application of photovoltaic (PV) system in different sectors increases dramatically since it is clean, sustainable, and easy to maintain. However, PV systems have a nonlinear voltage-current characteristic, with a distinct maximum power point (MPP), which depends on environmental factors like temperature and irradiation. Maximum power point tracking (MPPT) is crucial for PV power systems to consistently extract the maximum power from solar panels as it optimizes power output under varying conditions. In this paper, a standalone PV-powered water pumping system is designed for Bahir Dar University Health Science College. Then fuzzy sliding mode control (FSMC) is designed for MPPT. The proposed controller is simulated in MATLAB/ SIMULINK and the controller's performance for optimizing the system's power output under different environmental and load conditions is evaluated. The effectiveness of the proposed MPPT algorithm is validated by comparing its performance with fuzzy logic control (FLC) and sliding mode control (SMC). Based on the simulation result FSMC has an MPPT efficiency of 99.13% compared with 80.21% in FLC and 97.81% in SMC.

You might also be interested in these eBooks
International Journal of Engineering Research in Africa Vol. 73 View Preview

Info:

Periodical:

International Journal of Engineering Research in Africa (Volume 73)

Pages:

145-164

DOI:

https://doi.org/10.4028/p-7f3mJr

Citation:

Cite this paper

Online since:

May 2025

Authors:

Chalie Getinet Biadgie*, Haimanot Taye Haile

Keywords:

Boost Converter, FSMC, Fuzzy Logic Control, MPPT, Photovoltaic (PV), Sliding Mode Control

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2025 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
