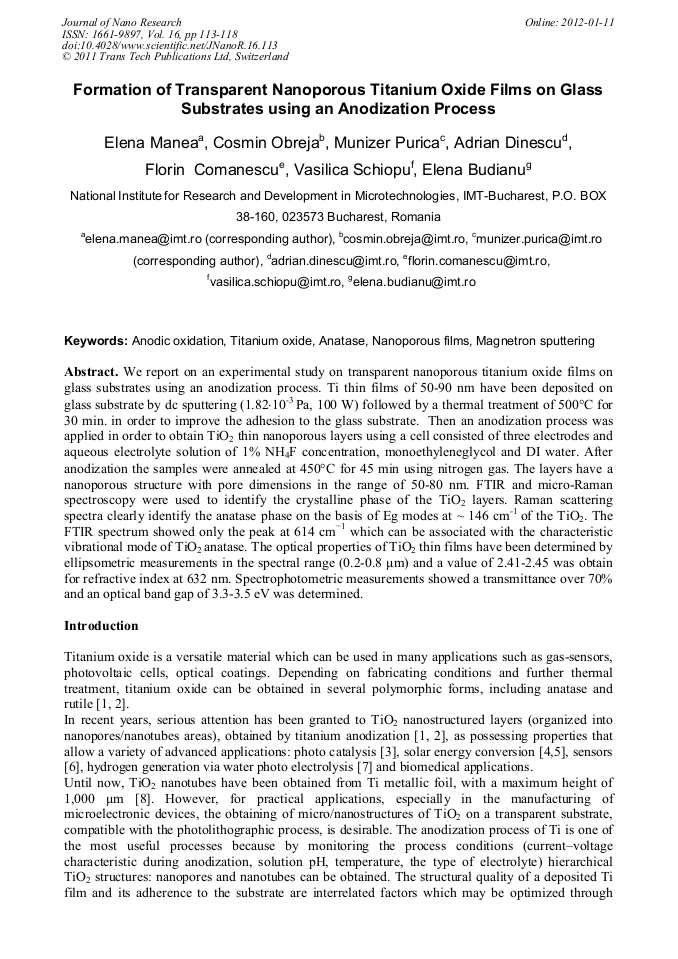

Formation of Transparent Nanoporous Titanium Oxide Films on Glass Substrates Using an Anodization Process

Abstract:

We report on an experimental study on transparent nanoporous titanium oxide films on glass substrates using an anodization process. Ti thin films of 50-90 nm have been deposited on glass substrate by dc sputtering (1.8210-3 Pa, 100 W) followed by a thermal treatment of 500°C for 30 min. in order to improve the adhesion to the glass substrate. Then an anodization process was applied in order to obtain TiO2 thin nanoporous layers using a cell consisted of three electrodes and aqueous electrolyte solution of 1% NH4F concentration, monoethyleneglycol and DI water. After anodization the samples were annealed at 450°C for 45 min using nitrogen gas. The layers have a nanoporous structure with pore dimensions in the range of 50-80 nm. FTIR and micro-Raman spectroscopy were used to identify the crystalline phase of the TiO2 layers. Raman scattering spectra clearly identify the anatase phase on the basis of Eg modes at ~ 146 cm-1 of the TiO2. The FTIR spectrum showed only the peak at 614 cm−1 which can be associated with the characteristic vibrational mode of TiO2 anatase. The optical properties of TiO2 thin films have been determined by ellipsometric measurements in the spectral range (0.2-0.8 μm) and a value of 2.41-2.45 was obtain for refractive index at 632 nm. Spectrophotometric measurements showed a transmittance over 70% and an optical band gap of 3.3-3.5 eV was determined.

• Periodical: Journal of Nano Research (Volume 16)
• Pages: 113-118
• DOI: https://doi.org/10.4028/www.scientific.net/JNanoR.16.113
• Online since: January 2012
• Authors: Elena Manea, Cosmin Obreja, Munizer Purica, Adrian Dinescu, Florin Comanescu, Vasilica Schiopu, Elena Budianu
• Keywords: Anatase, Anodic Oxidation, Magnetron Sputtering, Nanoporous Films, Titanium Oxide

References

[1] C.A. Grimes, G.K. Mor, TiO2 Nanotube Arrays: Synthesis, Properties, and Applications, Springer, New York, (2009).

[2] K. Shankar, J.I. Basham, N.K. Allam, O.K. Varghese, G.K. Mor, X. Feng, M. Paulose, J.A. Seabold, K. -S. Choi, C.A. Grimes, Recent Advances in the Use of TiO2 Nanotube and Nanowire Arrays for Oxidative Photoelectrochemistry, Phys. Chem. C 113 (2009).

DOI: 10.1021/jp809385x

[3] Z. Liu, X. Zhang, S. Nishimoto, M. Jin, D.A. Tryk, T. Murakami, A. Fujishima, Spontaneous spinal epidural hematoma: analysis of 23 cases, J. Phys. Chem. C 112 (2008) 253- 260.

[4] B. O'Reagan, M. Grätzel, A low-cost high efficiency solar cell based on dye-sensitized colloidal TiO2 films, Nature 353 (1991), 737-740.

DOI: 10.1038/353737a0

[5] K. Shankar, J. Bandara, M. Paulose, H. Wietasch, O.K. Varghese, G.K. Mor, T.J. LaTemp, M. Thelakkat, C.A. Grimes, Highly Efficient Solar Cells using TiO2 Nanotube Arrays Sensitized with a Donor-Antenna Dye, Nano Letters. 8 (2008) 1654-1659.

DOI: 10.1021/nl080421v

[6] Y. Li, X. Yu, Q. Yang, Fabrication of TiO2 nanotube thin films and their gas sensing properties, J. Sensors 2009 (2009) Article ID 402174, 19 pages.

[7] K. Shankar, G.K. Mor, H.E. Prakasam, S. Yoriya, M. Paulose, O.K. Varghese, C.A. Grimes, Highly-ordered TiO2 nanotube arrays up to 220 µm in length: use in water photoelectrolysis and dye-sensitized solar cells, Nanotechnology 18 (2007).

DOI: 10.1088/0957-4484/18/6/065707

[8] E.H. Prakasam, K. Shankar, M. Paulose, O.K. Varghese, C.A. Grimes, A New Benchmark for TiO2 Nanotube Array Growth by Anodization, J. Phys. Chem. C 111 (2007) 7235-7241.

DOI: 10.1021/jp070273h

[9] K. Yasuda, J.M. Macak, S. Berger, A. Ghicov and P. Schmuki, Mechanistic Aspects of the Self-Organization Process for Oxide Nanotube Formation on Valve Metals, J. Electrochem. Soc. 154 (2007) 472-478.

DOI: 10.1149/1.2749091

[10] G.A. Crawford, N. Chawla, Porous hierarchical TiO2 nanostructures: Processing and microstructure relationships, Acta Materialia 57 (2009) 854-867.

DOI: 10.1016/j.actamat.2008.10.032

[11] J.M. Macak, H. Tsuchiya, S. Berger, S. Bauer, S. Fujimoto, P. Schmuki, On wafer TiO2 nanotube-layer formation by anodization of Ti-films on Si, Chim Fiz Lett 428 (2006) 421-425.

DOI: 10.1016/j.cplett.2006.07.062
