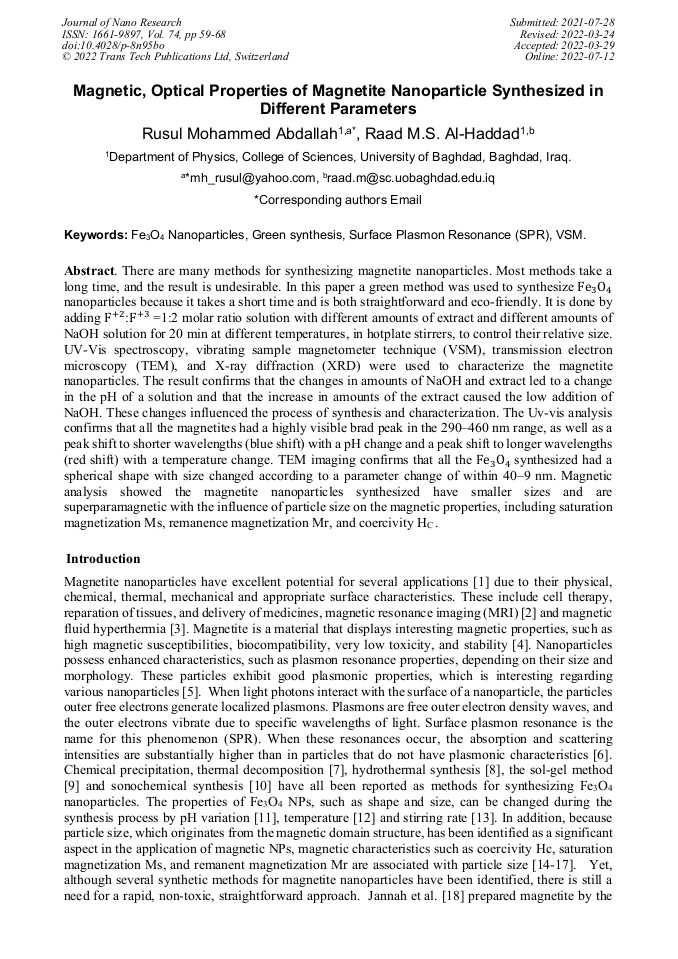

Magnetic, Optical Properties of Magnetite Nanoparticle Synthesized in Different Parameters

Abstract:

There are many methods for synthesizing magnetite nanoparticles. Most methods take a long time, and the result is undesirable. In this paper a green method was used to synthesize nanoparticles because it takes a short time and is both straightforward and eco-friendly. It is done by adding : =1:2 molar ratio solution with different amounts of extract and different amounts of NaOH solution for 20 min at different temperatures, in hotplate stirrers, to control their relative size. UV-Vis spectroscopy, vibrating sample magnetometer technique (VSM), transmission electron microscopy (TEM), and X-ray diffraction (XRD) were used to characterize the magnetite nanoparticles. The result confirms that the changes in amounts of NaOH and extract led to a change in the pH of a solution and that the increase in amounts of the extract caused the low addition of NaOH. These changes influenced the process of synthesis and characterization. The Uv-vis analysis confirms that the surface plasmon resonance had a highly visible brad peak in the 290–460 nm range, as well as a peak shift to shorter wavelengths (blue shift) with a pH change and a peak shift to longer wavelengths (red shift) with a temperature change. TEM imaging confirms that all the synthesized had a spherical shape with size changed according to a parameter change of within 40–9 nm. Magnetic analysis showed the magnetite nanoparticles synthesized have smaller sizes and are superparamagnetic with the influence of particle size on the magnetic properties, including Hc, Ms, and Mr.

• Periodical: Journal of Nano Research (Volume 74)
• Pages: 59-68
• DOI: https://doi.org/10.4028/p-8n95bo
• Online since: July 2022
• Authors: Rusul Mohammed Abdallah, Raad M.S. Al-Haddad
• Keywords: Fe₃O₄ Nanoparticles, Green Synthesis, Surface Plasmon Resonance (SPR), VSM

References

[1] R.A. Aobaid, H.S. Hussain, Design of a Magnetic-Sensor Based on Fe3O4 Nanofluid Infiltration, Al-Nahrain J. Sci. 23 (2020) 45–48.

DOI: 10.22401/anjs.23.3.06

[2] M.A. Dheyab, A.A. Aziz, MS Jameel, O.A. Noqta, B. Mehrdel, Synthesis and coating methods of biocompatible iron oxide/gold nanoparticle and nanocomposite for biomedical applications, Chinese J. Phys. 64 (2020) 305–325.

DOI: 10.1016/j.cjph.2019.11.014

[3] H. Nosrati, M. Salehiabar, M. Fridoni, M.-A. Abdollahifar, H.K. Manjili, S. Davaran, H. Danafar, New insight about biocompatibility and biodegradability of iron oxide magnetic nanoparticles: stereological and in vivo MRI monitor, Sci. Rep. 9 (2019) 1–10.

DOI: 10.1038/s41598-019-43650-4

[4] V.B. Barbeta, R.D.F. Jardim, P.K. Kiyohara, F.B. Effenberger, L.M. Rossi, Magnetic properties of Fe3O4 nanoparticles coated with oleic and dodecanoic acids, J. Appl. Phys. 107 (2010) 73913.

DOI: 10.1063/1.3311611

[5] R.K. Ismail, R.M.S. Al-Haddad, T.H. Mubarak, Time effect on the red shift of surface plasmonic resonance core-shell SiO2: Gold nanoparticles (AuNPs), in: AIP Conf. Proc., AIP Publishing LLC, 2019: p.20095.

DOI: 10.1063/1.5138581

[6] A. Hojjati-Najafabadi, S. Salmanpour, F. Sen, P.N. Asrami, M. Mahdavian, M.A. Khalilzadeh, A Tramadol Drug Electrochemical Sensor Amplified by Biosynthesized Au Nanoparticle Using Mentha aquatic Extract and Ionic Liquid, Top. Catal. (2021) 1–8.

DOI: 10.1007/s11244-021-01498-x

[7] C. Toyos-Rodríguez, J. Calleja-García, L. Torres-Sánchez, A. López, A.M. Abu-Dief, A. Costa, L. Elbaile, R.D. Crespo, J.S. Garitaonandia, E. Lastra, A Simple and Reliable Synthesis of Superparamagnetic Magnetite Nanoparticles by Thermal Decomposition of Fe (acac) 3, J. Nanomater. 2019 (2019).

DOI: 10.1155/2019/2464010

[8] K. Hedayati, M. Goodarzi, D. Ghanbari, Hydrothermal synthesis of Fe3O4 nanoparticles and flame resistance magnetic poly styrene nanocomposite, J. Nanostructures. 7 (2017) 32–39.

[9] R.S. Riley, E.S. Day, Gold nanoparticle‐mediated photothermal therapy: applications and opportunities for multimodal cancer treatment, Wiley Interdiscip. Rev. Nanomedicine Nanobiotechnology. 9 (2017) e1449.

DOI: 10.1002/wnan.1449

[10] J. Balachandramohan, S.Anandan, T.Sivasankar. A simple approach for the sonochemical synthesis of Fe3O4- guargum nanocomposite and its catalytic reduction of p-nitroaniline. Ultrason Sonochem. 40 (2018): 1-10.

DOI: 10.1016/j.ultsonch.2017.06.012

[11] A.H.M. Yusoff, MN Salimi, M.F. Jamlos, Synthesis and characterization of biocompatible Fe3O4 nanoparticles at different pH, in: AIP Conf. Proc., AIP Publishing LLC, 2017: p.20010.

DOI: 10.1063/1.4981832

[12] C. Nayek, K. Manna, G. Bhattacharjee, P. Murugavel, I. Obaidat, Investigating size-and temperature- dependent coercivity and saturation magnetization in PEG coated Fe3O4 nanoparticles, Magnetochemistry. 3 (2017) 19.

DOI: 10.3390/magnetochemistry3020019

[13] C.-W. Lin, J.-M. Chen, Y.-J. Lin, L.-W. Chao, S.-Y. Wei, C.-H. Wu, C.-C. Jeng, L.-M. Wang, K.-L. Chen, Magneto-Optical Characteristics of Streptavidin-Coated Fe 3 O 4@ Au Core-Shell Nanoparticles for Potential Applications on Biomedical Assays, Sci. Rep. 9 (2019) 1–8.

DOI: 10.1038/s41598-019-52773-7

[14] A.K. Singh, O.N. Srivastava, K. Singh, Shape and size-dependent magnetic properties of Fe3O4 nanoparticles synthesized using piperidine, Nanoscale Res. Lett. 12 (2017) 1–7.

DOI: 10.1186/s11671-017-2039-3

[15] A. Hojjati-Najafabadi, F. Davar, Z. Enteshari, M. Hosseini-Koupaei, Antibacterial and photocatalytic behaviour of green synthesis of Zn0. 95Ag0. 05O nanoparticles using herbal medicine extract, Ceram. Int. 47 (2021) 31617–31624.

DOI: 10.1016/j.ceramint.2021.08.042

[16] A.H. Najafabadi, A. Ghasemi, R. Mozaffarinia, Synthesis and evaluation of microstructural and magnetic properties of Cr 3+ substitution barium hexaferrite nanoparticles (BaFe 10.5− x Al 1.5 Cr x O 19), J. Clust. Sci. 27 (2016) 965–978.

DOI: 10.1007/s10876-015-0963-x

[17] A. Cheraghi, F. Davar, M. Homayoonfal, A. Hojjati-Najafabadi, Effect of lemon juice on microstructure, phase changes, and magnetic performance of CoFe2O4 nanoparticles and their use on release of anti-cancer drugs, Ceram. Int. (2021).

DOI: 10.1016/j.ceramint.2021.04.028

[18] NR. Jannah, D. Onggo, Synthesis of Fe3O4 nanoparticles for colour removal of printing ink solution, in: J. Phys. Conf. Ser., IOP Publishing, 2019: p.12040.

DOI: 10.1088/1742-6596/1245/1/012040

[19] Q. Li, C.W. Kartikowati, S. Horie, T. Ogi, T. Iwaki, K. Okuyama, Correlation between particle size/domain structure and magnetic properties of highly crystalline Fe 3 O 4 nanoparticles, Sci. Rep. 7 (2017) 1–7.

DOI: 10.1038/s41598-017-09897-5

[20] Y.P. Yew, K. Shameli, M. Miyake, NBBA Khairudin, S.E.B. Mohamad, T. Naiki, K.X. Lee, Green biosynthesis of superparamagnetic magnetite Fe3O4 nanoparticles and biomedical applications in targeted anticancer drug delivery system: A review, Arab. J. Chem. 13 (2020) 2287–2308.

DOI: 10.1016/j.arabjc.2018.04.013

[21] S. Venkateswarlu, BN. Kumar, B. Prathima, Y. SubbaRao, N.V.V. Jyothi, A novel green synthesis of Fe3O4 magnetic nanorods using Punica Granatum rind extract and its application for removal of Pb (II) from aqueous environment, Arab. J. Chem. 12 (2019) 588–596.

DOI: 10.1016/j.arabjc.2014.09.006

[22] Y.P. Yew, K. Shameli, M. Miyake, N. Kuwano, NBBA Khairudin, S.E.B. Mohamad, K.X. Lee, Green synthesis of magnetite (Fe3O4) nanoparticles using seaweed (Kappaphycus alvarezii) extract, Nanoscale Res. Lett. 11 (2016) 1–7.

DOI: 10.1186/s11671-016-1498-2

[23] H.M. Asoufi, T.M. Al-Antary, A.M. Awwad, Magnetite (Fe3O4) nanoparticles synthesis and anti green peach aphid activity (myzuspersicae sulzer), J. Chem. Biochem. 6 (2018) 9–16.

DOI: 10.15640/jcb.v6n1a2

[24] H.R. Humud, Copper nanoparticles prepared by pulsed exploding wire, Iraqi J. Phys. 13 (2015) 128–138.

DOI: 10.30723/ijp.v13i26.293

[25] S. Honary, P. Ebrahimi, H. Asgari-rad, F. Mohamadpour, Optimization of Iron Oxide Nanoparticle Preparation for Biomedical Applications by Using Box-Behenken Design, Int. J. Nanosci. Nanotechnol. 10 (2014) 257–261.

[26] R.M. Abdallah, R.M.S. Al-Haddad, Optical and Morphology Properties of the Magnetite (Fe3O4) Nanoparticles Prepared by Green Method, in: J. Phys. Conf. Ser., IOP Publishing, 2021: p.12022.

[27] A.H Fathallah, H.S. Akbar, F.M.N. Al-Deen, Preparation and Characterization of Superparamagnetic Iron Oxide Nanoparticles (Fe3O4) for Biological Applications, Tikrit J. Pure Sci. 26 (2021) 83–91.

DOI: 10.25130/tjps.v26i1.103

[28] A. Ruíz-Baltazar, R. Esparza, G. Rosas, R. Pérez, Effect of the surfactant on the growth and oxidation of iron nanoparticles, J. Nanomater. 2015 (2015).

DOI: 10.1155/2015/240948

[29] E.A. Kwizera, E. Chaffin, Y. Wang, X. Huang, Synthesis and properties of magnetic-optical core–shell nanoparticles, RSC Adv. 7 (2017) 17137–17153.

DOI: 10.1039/c7ra01224a

[30] M. Mahdavi, M. Bin Ahmad, M.J. Haron, F. Namvar, B. Nadi, M.Z.A. Rahman, J. Amin, Synthesis, surface modification and characterization of biocompatible magnetic iron oxide nanoparticles for biomedical applications, Molecules. 18 (2013) 7533–7548.

DOI: 10.3390/molecules18077533

[31] NR. Putra, D.N. Rizkiyah, AS Zaini, M.A.C. Yunus, S. Machmudah, Z. binti Idham, M.S. Hazwan Ruslan, Effect of particle size on yield extract and antioxidant activity of peanut skin using modified supercritical carbon dioxide and soxhlet extraction, J. Food Process. Preserv. 42 (2018) e13689.

DOI: 10.1111/jfpp.13689

[32] S. Upadhyay, K. Parekh, B. Pandey, Influence of crystallite size on the magnetic properties of Fe3O4 nanoparticles, J. Alloys Compd. 678 (2016) 478–485.

DOI: 10.1016/j.jallcom.2016.03.279

[33] B. Constant-Mandiola, H. Aguilar-Bolados, J. Geshev, R. Quíjada, Study of the Influence of Magnetite Nanoparticles Supported on Thermally Reduced Graphene Oxide as Filler on the Mechanical and Magnetic Properties of Polypropylene and Polylactic Acid Nanocomposites, Polymers (Basel). 13 (2021) 1635.

DOI: 10.3390/polym13101635

[34] S. Shukla, P.K. Deheri, R. V Ramanujan, Magnetic nanostructures: Synthesis, properties, and applications, in: Springer Handb. Nanomater., Springer, 2013: p.473–514.

DOI: 10.1007/978-3-642-20595-8_12

[35] J.D. Agudelo-Giraldo, F.N. Jiménez-García, E. Restrepo-Parra, The Influence of Thickness on the Magnetic Properties of Nanocrystalline Thin Films: A Computational Approach, Computation. 9 (2021) 45.

DOI: 10.3390/computation9040045

[36] C. Prasad, G. Yuvaraja, P. Venkateswarlu, Biogenic synthesis of Fe3O4 magnetic nanoparticles using Pisum sativum peels extract and its effect on magnetic and Methyl orange dye degradation studies, J. Magn. Magn. Mater. 424 (2017) 376–381.

DOI: 10.1016/j.jmmm.2016.10.084
