Influence of Laser Power and Transition Zone Distance on the Tensile Behaviour of a Bimetallic Specimen Manufactured by Selective Laser Melting

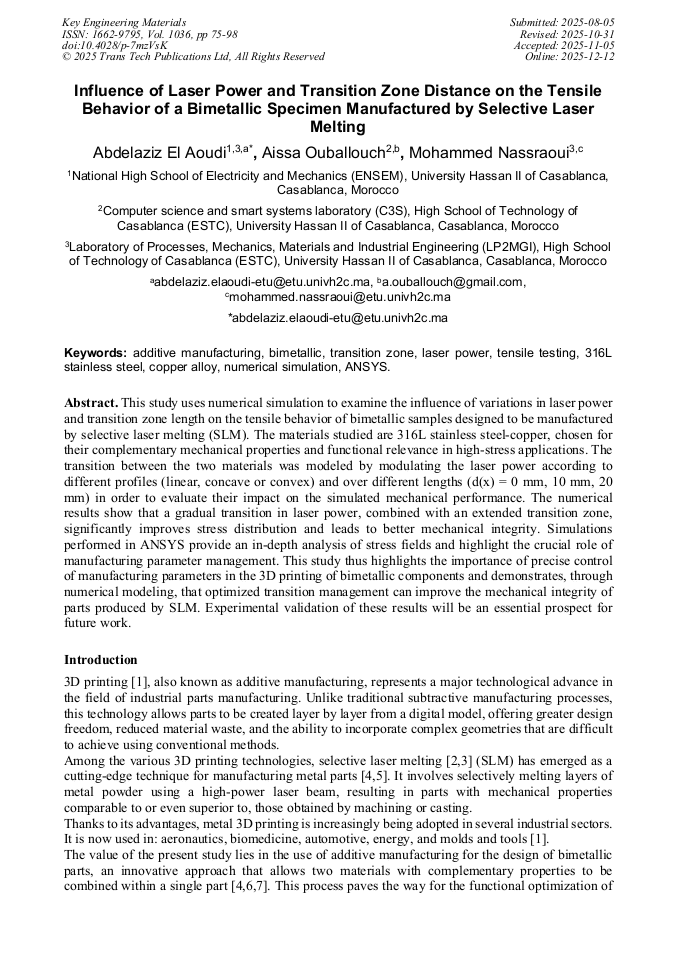

Article Preview

Abstract:

This study uses numerical simulation to examine the influence of variations in laser power and transition zone length on the tensile behavior of bimetallic samples designed to be manufactured by selective laser melting (SLM). The materials studied are 316L stainless steel-copper, chosen for their complementary mechanical properties and functional relevance in high-stress applications. The transition between the two materials was modeled by modulating the laser power according to different profiles (linear, concave or convex) and over different lengths (d(x) = 0 mm, 10 mm, 20 mm) in order to evaluate their impact on the simulated mechanical performance. The numerical results show that a gradual transition in laser power, combined with an extended transition zone, significantly improves stress distribution and leads to better mechanical integrity. Simulations performed in ANSYS provide an in-depth analysis of stress fields and highlight the crucial role of manufacturing parameter management. This study thus highlights the importance of precise control of manufacturing parameters in the 3D printing of bimetallic components and demonstrates, through numerical modeling, that optimized transition management can improve the mechanical integrity of parts produced by SLM. Experimental validation of these results will be an essential prospect for future work.

You might also be interested in these eBooks
Processing of Structural Metals, Fracture Mechanics and Failure Analysis View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1036)

Pages:

75-98

DOI:

https://doi.org/10.4028/p-7mzVsK

Citation:

Cite this paper

Online since:

December 2025

Authors:

Abdelaziz El Aoudi*, Aissa Ouballouch, Mohammed Nassraoui

Keywords:

316L Stainless Steel, Additive Manufacturing, ANSYS, Bimetallic, Copper Alloy, Laser Power, Numerical Simulation, Tensile Testing, Transition Zone

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2025 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
