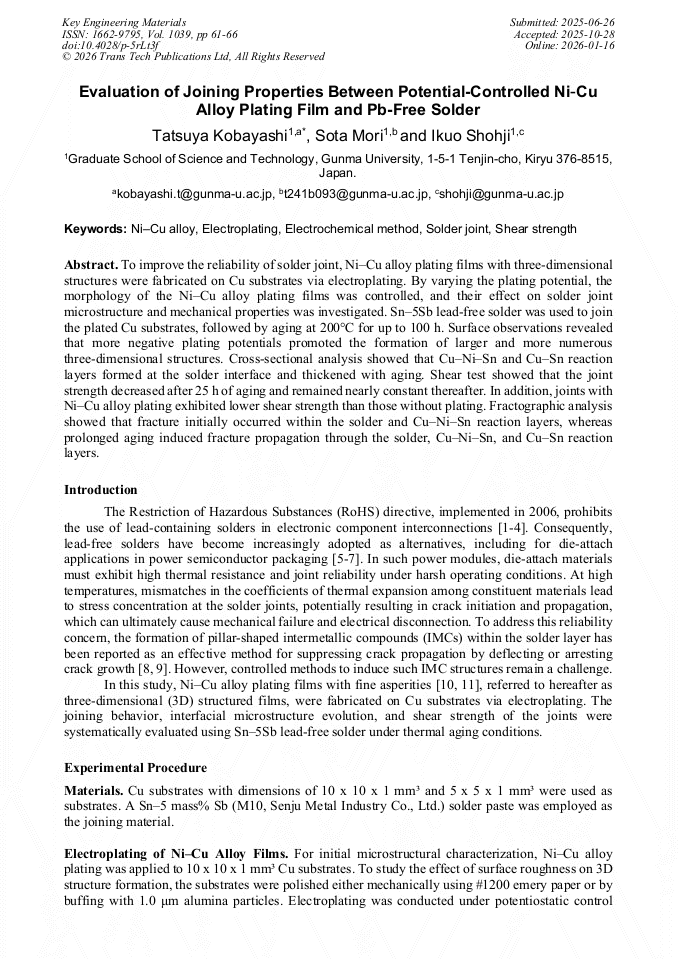

Evaluation of Joining Properties between Potential-Controlled Ni–Cu Alloy Plating Film and Pb-Free Solder

Abstract:

To improve the reliability of solder joint, Ni–Cu alloy plating films with three-dimensional structures were fabricated on Cu substrates via electroplating. By varying the plating potential, the morphology of the Ni–Cu alloy plating films was controlled, and their effect on solder joint microstructure and mechanical properties was investigated. Sn–5Sb lead-free solder was used to join the plated Cu substrates, followed by aging at 200°C for up to 100 h. Surface observations revealed that more negative plating potentials promoted the formation of larger and more numerous three-dimensional structures. Cross-sectional analysis showed that Cu–Ni–Sn and Cu–Sn reaction layers formed at the solder interface and thickened with aging. Shear test showed that the joint strength decreased after 25 h of aging and remained nearly constant thereafter. In addition, joints with Ni–Cu alloy plating exhibited lower shear strength than those without plating. Fractographic analysis showed that fracture initially occurred within the solder and Cu–Ni–Sn reaction layers, whereas prolonged aging induced fracture propagation through the solder, Cu–Ni–Sn, and Cu–Sn reaction layers.

• Periodical: Key Engineering Materials (Volume 1039)
• Pages: 61-66
• DOI: https://doi.org/10.4028/p-5rLt3f
• Online since: January 2026
• Authors: Tatsuya Kobayashi, Sota Mori*, Ikuo Shohji
• Keywords: Electrochemical Method, Electroplating, Ni-Cu Alloy, Shear Strength, Solder Joint

References

[1] D. Chen, M. Osterman, C. Handwerker, S. Hamasha, Criteria for solder alloy adoption, Journal of Surface Mount Technology, 37 (2024) 2-7.

DOI: 10.37665/smt.v37i1.41

[2] X. Liu, G. Lu, Z. Ji, F. Wei, C. Yao, J. Wang, Effect of Ni-coated carbon nanotubes additions on the eutectic Sn–0.7Cu lead-free composite solder, metals 12 (2022) 1196.

DOI: 10.3390/met12071196

[3] R. Mayappan, A. Salleh, Intermetallic growth activation energy improvement in graphene doped Sn–3.5Ag solder, Mater. Lett. 310 (2022) 131480.

DOI: 10.1016/j.matlet.2021.131480

[4] H. Ma, J.C. Suhling, A review of mechanical properties of lead-free solders for electronic packaging, Journal of Materials Science, 44 (2009) 1141-1158.

DOI: 10.1007/s10853-008-3125-9

[5] T. Kobayashi, R. Goto, I. Shohji, Fabrication and characterization of zinc-coated aluminum particle joining materials via zincate treatment, Journal of Materials Science, 59 (2024) 20812-20823.

DOI: 10.1007/s10853-024-10421-0

[6] M. Calabretta, A. Sitta, S.M. Oliveri, G. Sequenzia, Power semiconductor devices and packages: Solder mechanical characterization and lifetime prediction, IEEE Access, 9 (2021) 22859-22867.

DOI: 10.1109/access.2021.3056281

[7] Y. Yamada, Y. Takaku, Y. Yagi, Y. Nishibe, I. Ohnuma, Y. Sutou, R. Kainuma, K. Ishida, Pb-free high temperature solders for power device packaging, Microelectronics Reliability, 46 (2004) 1932-1937.

DOI: 10.1016/j.microrel.2006.07.083

[8] Y. Nakata, M. Kurasawa, T. Hashimoto, K. Miki, I. Shohji, A study on reliability of pillar-shaped intermetallic compounds dispersed lead-free solder joint, Materials Science Forum, 941 (2018) 2087-2092.

DOI: 10.1109/eptc.2015.7412284

[9] Y. Nakata, T. Hashimoto, M. Kurasawa, Y. Hayashi, I. Shohji, Formation mechanism of pillar-shaped intermetallic compounds dispersed lead-free solder joint, IOP Conf. Series: Materials Science and Engineering, 257 (2017) 012014.

DOI: 10.1088/1757-899x/257/1/012014

[10] T. Kobayashi, A. Kubo, I. Shohji, Formation of Cu–Ni alloy plating film for improving adhesion between metal and resin, Materials Transactions, 63 (2022) 800-804.

DOI: 10.2320/matertrans.mt-mc2022002

[11] M. Ganesan, C.C. Liu, S. Pandiyarajan, C.T. Lee, H.C. Chuang, Post-supercritical CO2 electrodeposition approach for Ni–Cu alloy fabrication: An innovative eco-friendly strategy for high-performance corrosion resistance with durability, Appl. Surf. Sci., 577 (2022) 151955.

DOI: 10.1016/j.apsusc.2021.151955

[12] T. Kobayashi, I. Shohji, Joining process of dissimilar materials using three-dimensional electrodeposited Ni-Cu film, Materials and Manufacturing Processes, 36 (2021) 1076-1083.

DOI: 10.1080/10426914.2021.1885708

[13] G.B. Darband, N. Lotfi, A. Aliabadi, S. Hyun, S. Shanmugam, Hydrazine-assisted electrochemical hydrogen production by efficient and self-supported electrodeposited Ni–Cu–P@Ni–Cu nano-micro dendrite catalyst, Electrochimica Acta, 382 (2021) 138335.

DOI: 10.1016/j.electacta.2021.138335

[14] J.M. Lee, J.S. Ko, Cu–Ni alloy electrodeposition on microstructured surfaces, Journal of Materials Science, 50 (2015) 393-402.

DOI: 10.1007/s10853-014-8598-0
