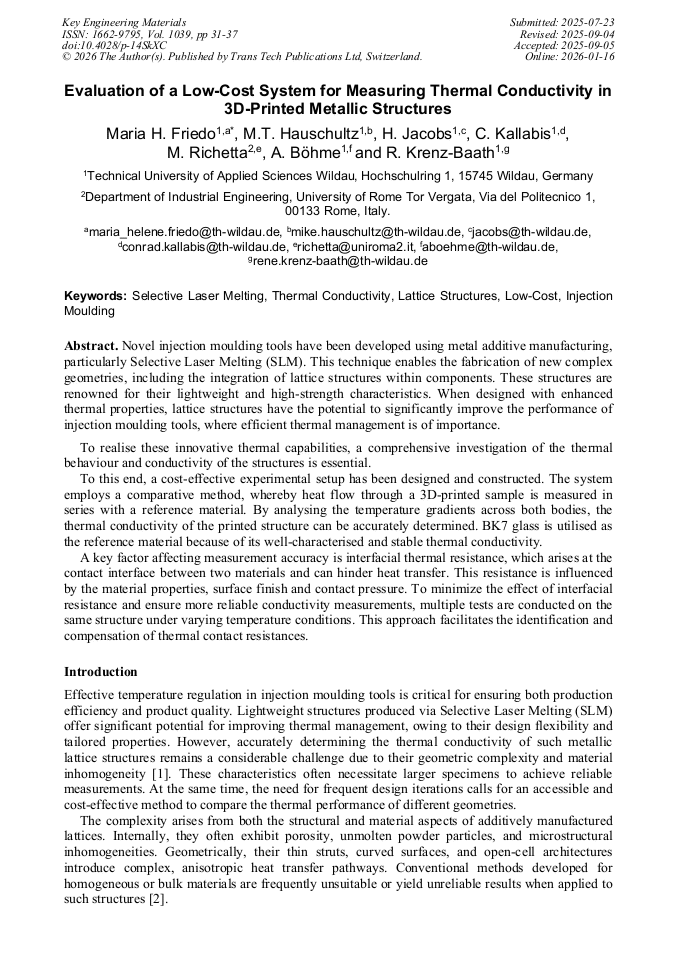

Evaluation of a Low-Cost System for Measuring Thermal Conductivity in 3D-Printed Metallic Structures

Abstract:

Novel injection moulding tools have been developed using metal additive manufacturing, particularly Selective Laser Melting (SLM). These technique enables the fabrication of new complex geometries, including the integration of lattice structures within components. These structures are renowned for their lightweight and high-strength characteristics. When designed with enhanced thermal properties, lattice structures have the potential to significantly improve the performance of injection moulding tools, where efficient thermal management is of importance. To realise these innovative thermal capabilities, a comprehensive investigation of the thermal behaviour and conductivity of the structures is essential. To this end, a cost-effective experimental setup has been designed and constructed. The system employs a comparative method, whereby heat flow through a 3D-printed sample is measured in series with a reference material. By analysing the temperature gradients across both bodies, the thermal conductivity of the printed structure can be accurately determined. BK7 glass is utilised as the reference material, due to its well-characterised and stable thermal conductivity. A key factor affecting measurement accuracy is interfacial thermal resistance, which arises at the contact interface between two materials and can hinder heat transfer. This resistance is influenced b the material properties, surface finish and contact pressure. To minimize the effect of interfacial resistance and ensure more reliable conductivity measurements, multiple tests are conducted on the same structure under varying temperature conditions. This approach facilitates the identification and compensation of thermal contact resistances.

• Periodical: Key Engineering Materials (Volume 1039)
• Pages: 31-37
• DOI: https://doi.org/10.4028/p-14SkXC
• Online since: January 2026
• Authors: Maria Helene Friedo*, Mike Thomas Hauschultz, Hannes Jacobs, Conrad Kallabis, Maria Richetta, Andrea Böhme, René Krenz-Baath
• Keywords: Injection Moulding, Lattice Structures, Low-Cost, Selective Laser Melting, Thermal Conductivity
