Evolution of Inclusions in Physically Simulated Heat-Affected Zones of a Weld Metal Used with a 500 MPa Offshore Steel

Abstract:

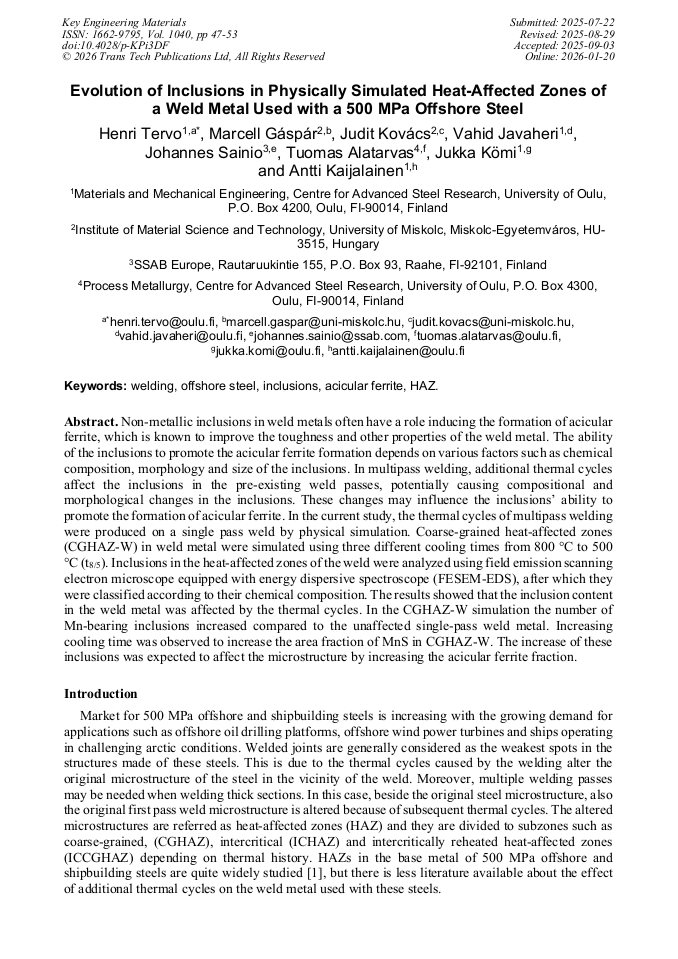

Non-metallic inclusions in weld metals often have a role inducing the formation of acicular ferrite, which is known to improve the toughness and other properties of the weld metal. The ability of the inclusions to promote the acicular ferrite formation depends on various factors such as chemical composition, morphology and size of the inclusions. In multipass welding, additional thermal cycles affect the inclusions in the pre-existing weld passes, potentially causing compositional and morphological changes in the inclusions. These changes may influence the inclusions’ ability to promote the formation of acicular ferrite. In the current study, the thermal cycles of multipass welding were produced on a single pass weld by physical simulation. Coarse-grained heat-affected zones (CGHAZ-W) in weld metal were simulated using three different cooling times from 800 °C to 500 °C (t_8/5). Inclusions in the heat-affected zones of the weld were analyzed using field emission scanning electron microscope equipped with energy dispersive spectroscope (FESEM-EDS), after which they were classified according to their chemical composition. The results showed that the inclusion content in the weld metal was affected by the thermal cycles. In the CGHAZ-W simulation the number of Mn-bearing inclusions increased compared to the unaffected single-pass weld metal. Increasing cooling time was observed to increase the area fraction of MnS in CGHAZ-W. The increase of these inclusions was expected to affect the microstructure by increasing the acicular ferrite fraction.

• Periodical: Key Engineering Materials (Volume 1040)
• Pages: 47-53
• DOI: https://doi.org/10.4028/p-KPi3DF
• Online since: January 2026
• Authors: Henri Tervo*, Marcell Gáspár, Judit Kovács, Vahid Javaheri, Johannes Sainio, Tuomas Alatarvas, Jukka Kömi, Antti Kaijalainen
• Keywords: Acicular Ferrite, HAZ, Inclusions, Offshore Steel, Welding

References

[1] H. Tervo et al., "Low-temperature toughness properties of 500 MPa offshore steels and their simulated coarse-grained heat-affected zones," Materials Science and Engineering: A, vol. 773, Jan. 2020.

DOI: 10.1016/j.msea.2019.138719

[2] M. Gáspár, A. Balogh, and I. Sas, "Physical simulation aided process optimisation aimed sufficient HAZ toughness for quenched and tempered AHSS," in IIW International Conference High-Strength Materials - Challenges and Applications, Helsinki, Finland: IIW, 2015.

[3] S. Afkhami et al., "Thermomechanical simulation of the heat-affected zones in welded ultra-high strength steels: Microstructure and mechanical properties," Mater Des, vol. 213, p.110336, Jan. 2022.

DOI: 10.1016/j.matdes.2021.110336

[4] M. S. Węglowski, M. Zeman, and M. Lomozik, "Physical Simulation of Weldability of Weldox 1300 Steel," Materials Science Forum, vol. 762, p.551–555, Jul. 2013.

DOI: 10.4028/www.scientific.net/MSF.762.551

[5] M. Mičian, J. Winczek, D. Harmaniak, R. Koňár, M. Gucwa, and J. Moravec, "Physical Simulation of Individual Heat-Affected Zones in S960MC Steel," Archives of Metallurgy and Materials, vol. 66, no. 1, p.81–89, Sep. 2020.

DOI: 10.24425/amm.2021.134762

[6] R. O. Laitinen, D. A. Porter, L. P. Karjalainen, P. Leiviskä, and J. Kömi, "Physical Simulation for Evaluating Heat-Affected Zone Toughness of High and Ultra-High Strength Steels," Materials Science Forum, vol. 762, p.711–716, Jul. 2013.

DOI: 10.4028/www.scientific.net/MSF.762.711

[7] R. Celin, J. Burja, and G. Kosec, "A comparison of as-welded and simulated heat affected zone (HAZ) microstructures," Materiali in tehnologije, vol. 50, no. 3, p.455–460, Jun. 2016.

DOI: 10.17222/mit.2016.006

[8] L. Lan, C. Qiu, D. Zhao, X. Gao, and L. Du, "Microstructural characteristics and toughness of the simulated coarse grained heat affected zone of high strength low carbon bainitic steel," Materials Science and Engineering: A, vol. 529, no. 1, p.192–200, 2011.

DOI: 10.1016/j.msea.2011.09.017

[9] H. Terasaki, Y. Miyahara, M. Ohata, K. Moriguchi, Y. Tomio, and K. Hayashi, "Visualization of Microstructural Factor Resisting the Cleavage-Crack Propagation in the Simulated Heat-Affected Zone of Bainitic Steel," Metallurgical and Materials Transactions A, vol. 46, no. 12, p.5489–5493, 2015.

DOI: 10.1007/s11661-015-3167-y

[10] Z. Shi et al., "Effect of nitrogen on the microstructures and mechanical properties in simulated CGHAZ of vanadium microalloyed steel varied with different heat inputs," Materials Science and Engineering: A, vol. 649, p.270–281, Jan. 2016.

DOI: 10.1016/j.msea.2015.09.056

[11] A. Lambert-Perlade, A. F. Gourgues, J. Besson, T. Sturel, and A. Pineau, "Mechanisms and modeling of cleavage fracture in simulated heat-affected zone microstructures of a high-strength low alloy steel," Metall Mater Trans A Phys Metall Mater Sci, vol. 35, no. 13, p.1039–1053, 2004.

DOI: 10.1007/s11661-004-1007-6

[12] Q. Ding, T. Wang, Z. Shi, Q. Wang, Q. Wang, and F. Zhang, "Effect of welding heat input on the microstructure and toughness in simulated CGHAZ of 800 MPa-Grade steel for hydropower penstocks," Metals (Basel), vol. 7, no. 4, Apr. 2017.

DOI: 10.3390/met7040115

[13] J. Wang, Y. F. Shen, W. Y. Xue, N. Jia, and R. D. K. Misra, "The significant impact of introducing nanosize precipitates and decreased effective grain size on retention of high toughness of simulated heat affected zone (HAZ)," Materials Science and Engineering: A, vol. 803, Jan. 2021.

DOI: 10.1016/j.msea.2020.140484

[14] X. Wang, C. Wang, J. Kang, G. Wang, D. Misra, and G. Yuan, "Relationship Between Impact Toughness and Microstructure for the As-Rolled and Simulated HAZ of Low-Carbon Steel Containing Ti-Ca Oxide Particles," Metall Mater Trans A Phys Metall Mater Sci, vol. 51, no. 6, p.2927–2938, Jun. 2020.

DOI: 10.1007/s11661-020-05753-w

[15] G. Huang, X. L. Wan, and K. M. Wu, "Effect of Cr Content on Microstructure and Impact Toughness in the Simulated Coarse-Grained Heat-Affected Zone of High-Strength Low-Alloy Steels," Steel Res Int, vol. 87, no. 11, p.1426–1434, Nov. 2016.

DOI: 10.1002/srin.201500424

[16] H. Tervo et al., "Physical simulation of heat-affected zones in a weld metal used with 500 MPa offshore steel," in Proceedings of SIMS EUROSIM 2024, E. Juuso, J. Ruuska, G. Mirlekar, and L. Eriksson, Eds., Linköping Electronic Conference Proceedings, Jan. 2025, p.236–241.

DOI: 10.3384/ecp212.033

[17] M. Gáspár, J. Kovács, J. Sainio, H. Tervo, V. Javaheri, and A. Kaijalainen, "Physical simulation-based analysis of multipass welding in S500 shipbuilding steel," Welding in the World, Dec. 2024.

DOI: 10.1007/s40194-024-01908-0

[18] Y. Kang, G. Park, S. Jeong, and C. Lee, "Correlation Between Microstructure and Low-Temperature Impact Toughness of Simulated Reheated Zones in the Multi-pass Weld Metal of High-Strength Steel," Metallurgical and Materials Transactions A, vol. 49, no. 1, p.177–186, Jan. 2018.

DOI: 10.1007/s11661-017-4384-3

[19] S. Nellikode et al., "Effect of microstructural heterogeneities on variability in low-temperature impact toughness in multi-pass weld metal of 420 MPa offshore engineering steel," Welding in the World, vol. 67, no. 7, p.1679–1693, Jul. 2023.

DOI: 10.1007/s40194-023-01521-7

[20] Z. Xiong, S. Liu, X. Wang, C. Shang, X. Li, and R. D. K. Misra, "The contribution of intragranular acicular ferrite microstructural constituent on impact toughness and impeding crack initiation and propagation in the heat-affected zone (HAZ) of low-carbon steels," Materials Science and Engineering: A, vol. 636, p.117–123, Jun. 2015.

DOI: 10.1016/j.msea.2015.03.090

[21] Z. Shi, T. Pan, Y. Li, X. Luo, and F. Chai, "Mechanism of BN-Promoting Acicular Ferrite Nucleation to Improve Heat-Affected Zone Toughness of V-N-Ti Microalloyed Offshore Steel," Materials, vol. 15, no. 4, Feb. 2022.

DOI: 10.3390/ma15041420

[22] H. Homma, S. Ohkita, S. Matsuda, and K. Yamamoto, "Improvement of HAZ in HSLA steel by Introducing finely dispersed Ti-Oxide," Welding Research Supplement, p.301–309, 1987.

[23] H. Tervo et al., "Characterization of coarse-grained heat-affected zones in al and ti-deoxidized offshore steels," Metals (Basel), vol. 10, no. 8, p.1–18, Aug. 2020.

DOI: 10.3390/met10081096

[24] H. Tervo et al., "Comparison of impact toughness in simulated coarse-grained heat-affected zone of al-deoxidized and ti-deoxidized offshore steels," Metals (Basel), vol. 11, no. 11, Nov. 2021.

DOI: 10.3390/met11111783

[25] D. Loder, S. K. Michelic, and C. Bernhard, "Acicular Ferrite Formation and Its Influencing Factors-A Review," Journal of Materials Science Research, vol. 6, no. 1, p.24, Dec. 2016.

DOI: 10.5539/jmsr.v6n1p24

[26] D. S. Sarma, A. V. Karasev, and P. G. Jönsson, "On the Role of Non-metallic Inclusions in the Nucleation of Acicular Ferrite in Steels," ISIJ International, vol. 49, no. 7, p.1063–1074, 2009.

DOI: 10.2355/isijinternational.49.1063

[27] T. Alatarvas, "Evolution of inclusion population in calcium treated ultra-high strength steels : novel applications of sample data treatment," Dissertation, University of Oulu, 2018.

[28] M. Ali, T. Alatarvas, and J. Kömi, "Impact of niobium addition and non-metallic inclusions' characteristics on the microstructure and mechanical properties of low-carbon CrNiMnMoB ultrahigh-strength steel: A comprehensive investigation," Journal of Materials Research and Technology, vol. 30, p.6133–6153, May 2024.

DOI: 10.1016/j.jmrt.2024.05.002
