Degradation Behaviour of Sn-Ag-Cu Lead-Free Solder Joint with Electrolytic Ni Plated Electrode due to Electromigration

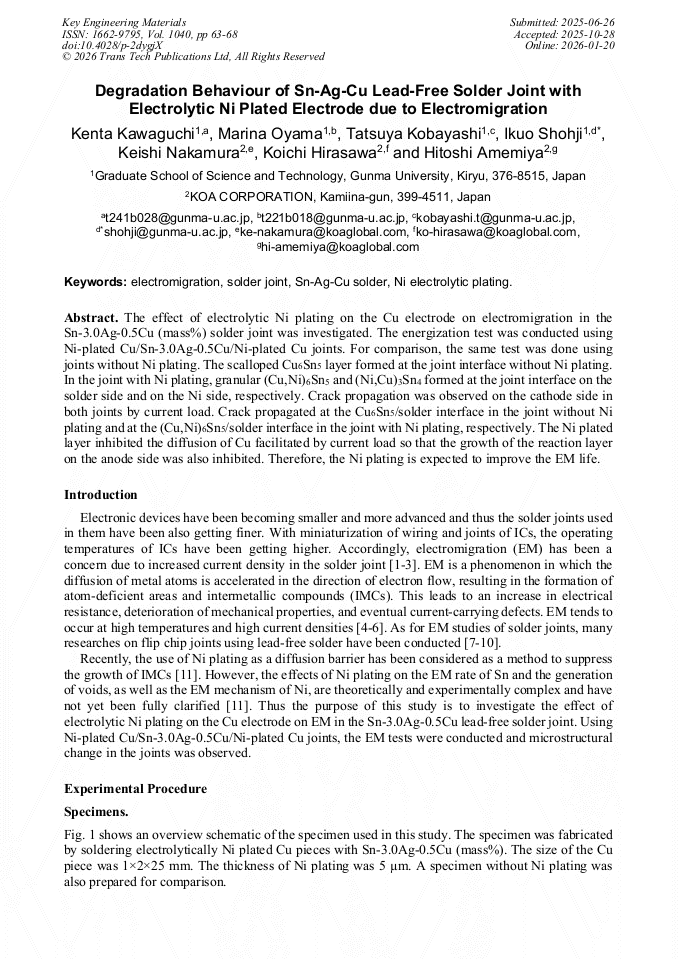

Article Preview

Abstract:

The effect of electrolytic Ni plating on the Cu electrode on electromigration in the Sn-3.0Ag-0.5Cu (mass%) solder joint was investigated. The energization test was conducted using Ni-plated Cu/Sn-3.0Ag-0.5Cu/Ni-plated Cu joints. For comparison, the same test was done using joints without Ni plating. The scalloped Cu6Sn5 layer formed at the joint interface without Ni plating. In the joint with Ni plating, granular (Cu,Ni)6Sn5 and (Ni,Cu)3Sn4 formed at the joint interface on the solder side and on the Ni side, respectively. Crack propagation was observed on the cathode side in both joints by current load. Crack propagated at the Cu6Sn5/solder interface in the joint without Ni plating and at the (Cu,Ni)6Sn5/solder interface in the joint with Ni plating, respectively. The Ni plated layer inhibited the diffusion of Cu facilitated by current load so that the growth of the reaction layer on the anode side was also inhibited. Therefore, the Ni plating is expected to improve the EM life.

You might also be interested in these eBooks
13th International Conference on Processing and Manufacturing of Advanced Materials Processing, Fabrication, Properties, Applications (THERMEC) View Preview
Welding and Soldering Processes View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1040)

Pages:

63-68

DOI:

https://doi.org/10.4028/p-2dygjX

Citation:

Cite this paper

Online since:

January 2026

Authors:

Kenta Kawaguchi*, Marina Oyama, Tatsuya Kobayashi, Ikuo Shohji, Keishi Nakamura, Koichi Hirasawa, Hitoshi Amemiya

Keywords:

Electromigration, Ni Electrolytic Plating, Sn-Ag-Cu Solder, Solder Joint

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. Brandeburg, S. Yeh, Electromigration studies of flip chip bump solder joints, Proc. of surface mount international conference and exposition, (1998) 337-43.

Google Scholar

[2] W. J. Choi, E. C. C Yeh, K. N. Tu, Mean-time-to-failure study of flip-chip solder joints on Cu/Ni(V)/Al thin-film under-bump-metallization, J. Appl. Phys. 94 (2003) 5665-5671.

DOI: 10.1063/1.1616993

Google Scholar

[3] K. Yamanaka, Studies on solder bump electromigration in Cu/Sn-3Ag-0.5Cu/Cu system, Microelectron. Reliab. 47 (2007) 1280-1287.

DOI: 10.1016/j.microrel.2006.09.028

Google Scholar

[4] W. C. Liu, S. W. Chen, C. M. Chen, The Al/Ni interfacial reactions under the influence of electric current, J. Electron. Mater. 27 (1998) 5-8.

Google Scholar

[5] S. W. Chen, C. M. Chen, W. C. Liu, Electric current effects upon the Sn/Cu and Sn/Ni interfacial reactions, J. Electron. Mater. 27 (1998) 1193-1198.

DOI: 10.1007/s11664-998-0068-5

Google Scholar

[6] G. C. Xu, F. Guo, W. R. Zhu, Electromigration in eutectic SnAg solder reaction couples with various ambient temperatures and current densities, International Journal of Minerals, Metallurgy and Materials 16 (2009) 685-690.

Google Scholar

[7] T. Y. Lee, K. N. Tu, D. R. Frear, Electromigration of eutectic SnPb and SnAg3.8Cu0.7 flip chip solder bumps and under-bump metallization, J. Appl. Phys. 90 (2001) 4502-4508.

DOI: 10.1063/1.1400096

Google Scholar

[8] Y. C. Hsu, T. L. Shao, C. J. Yang, C. Chen, Electromigration study in SnAg3.8Cu0.7 solder joints on Ti/Cr–Cu/Cu under-bump-metallization, J. Electron. Mater. 32 (2003) 1222-1227.

DOI: 10.1007/s11664-003-0015-4

Google Scholar

[9] T. L. Shao, K. C. Lin, C. Chen, Electromigration studies of flip chip Sn95/Sb5 solder bumps Cr/Cr–Cu/Cu under-bump metallization. J. Electron. Mater. 32 (2003) 1278-1283.

DOI: 10.1007/s11664-003-0023-4

Google Scholar

[10] K. N. Chiang, C. C. Lee, K. M. Chen, Current crowding-induced electromigration in SnAg3.0Cu0.5 microbumps, Appl. Phys. Lett. 88 (2006) 072102.

Google Scholar

[11] H. Madanipour, Y. Kim, C. Kim, D. Mishra, P. Thompson, Study of electromigration in Sn-Ag-Cu micro solder joint with Ni interfacial layer, Journal of Alloys and Compounds 862 (2021) 158043.

DOI: 10.1016/j.jallcom.2020.158043

Google Scholar

[12] K. Lee, K. S. Kim, Y. Tsukada, K. Suganuma, K. Yamanaka, S. Kuritani, M. Ueshima, Influence of crystallographic orientation of Sn-Ag-Cu on electromigration in flip-chip joint, Microelectronics Reliability 51 (2011) 2290-2297.

DOI: 10.1016/j.microrel.2011.05.003

Google Scholar

[13] J. Y. Park, T. Lee, W. Seo, S. Yoo, Y. H. Kim, Electromigration reliability of Sn–3.0Ag–0.5Cu/Cu–Zn solder joints, Journal of Materials Science: Materials in Electronics 30 (2019) 7645-7653.

DOI: 10.1007/s10854-019-01080-y

Google Scholar

[14] K. Yamanaka, Electromigration in Solder Joints, Journal of The Japan Institute of Electronics Packaging 23 (2020) 219-223.

DOI: 10.5104/jiep.23.219

Google Scholar

[15] P. S. Ho, T. Kwok, Electromigration in Metals, Reprots on Progress in Physics 52 (1989) 301-348.

Google Scholar

[16] L-Y. Gao, H. Zhang, C-F. Li, J. Guo, Z-Q. Liu, Mechanism of improved electromigration reliability using Fe-Ni UBM in wafer level package, Journal of Materials Science & Technology 34 (2018) 1305-1314.

Google Scholar
