Development of AMC Welding Wire and Inline Hot Rolling for Enhanced Properties of DED-Arc/Wire-Manufactured Parts

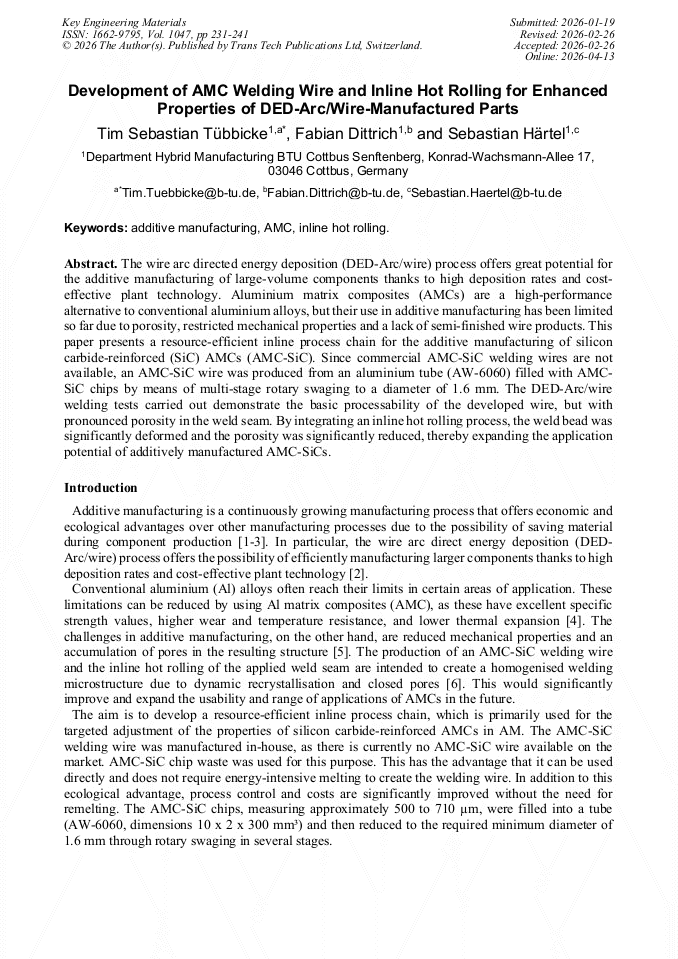

Article Preview
View Pdf By email

Abstract:

The wire arc directed energy deposition (DED-Arc/wire) process offers great potential for the additive manufacturing of large-volume components thanks to high deposition rates and cost-effective plant technology. Aluminium matrix composites (AMCs) are a high-performance alternative to conventional aluminium alloys, but their use in additive manufacturing has been limited so far due to porosity, restricted mechanical properties and a lack of semi-finished wire products. This paper presents a resource-efficient inline process chain for the additive manufacturing of silicon carbide-reinforced (SiC) AMCs (AMC-SiC). Since commercial AMC-SiC welding wires are not available, an AMC-SiC wire was produced from an aluminium tube (AW-6060) filled with AMC-SiC chips by means of multi-stage rotary swaging to a diameter of 1.6 mm. The DED-Arc/wire welding tests carried out demonstrate the basic processability of the developed wire, but with pronounced porosity in the weld seam. By integrating an inline hot rolling process, the weld bead was significantly deformed and the porosity was significantly reduced, thereby expanding the application potential of additively manufactured AMC-SiCs.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

231-241

Online since:

April 2026

Authors:

Tim Sebastian Tübbicke*, Fabian Dittrich, Sebastian Härtel

Keywords:

Additive Manufacturing, AMC, Inline Hot Rolling

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] V. Pawlik, 'Wie schätzen Sie die Entwicklungen auf dem Markt der Additiven Fertigung in den nächsten 24 Monaten ein?', statista. Accessed: Dec. 03, 2025. [Online]. Available: https://de.statista.com/statistik/daten/studie/1618955/umfrage/entwicklungen-additive-fertigung/.

Google Scholar

[2] S. C. A. Costello, C. R. Cunningham, F. Xu, A. Shokrani, V. Dhokia, and S. T. Newman, 'The state-of-the-art of wire arc directed energy deposition (WA-DED) as an additive manufacturing process for large metallic component manufacture', Int. J. Comput. Integr. Manuf., vol. 36, no. 3, p.469–510, Mar. 2023.

DOI: 10.1080/0951192X.2022.2162597

Google Scholar

[3] 'D Printing Trend Report 2024 Market growth, ecosystem maturation and technological innovations in 3D printing', Protolabs, Maple Plain, USA, 2024. Accessed: Dec. 04, 2025. [Online]. Available: www.protolabs.com/media/ktnlshtk/pl_3dp-trend-report-2024_en-2-1.pdf.

Google Scholar

[4] S. T. Mavhungu, E. T. Akinlabi, M. A. Onitiri, and F. M. Varachia, 'Aluminum Matrix Composites for Industrial Use: Advances and Trends', Procedia Manuf., vol. 7, p.178–182, 2017.

DOI: 10.1016/j.promfg.2016.12.045

Google Scholar

[5] M. Dadkhah, M. H. Mosallanejad, L. Iuliano, and A. Saboori, 'A Comprehensive Overview on the Latest Progress in the Additive Manufacturing of Metal Matrix Composites: Potential, Challenges, and Feasible Solutions', Acta Metall. Sin. Engl. Lett., vol. 34, no. 9, p.1173–1200, Sep. 2021.

DOI: 10.1007/s40195-021-01249-7

Google Scholar

[6] J. Huang et al., 'Hybrid in-situ hot rolling and wire arc additive manufacturing of Al-Si alloy: Microstructure, mechanical properties and strengthening mechanism', J. Manuf. Process., vol. 127, p.328–339, Oct. 2024.

DOI: 10.1016/j.jmapro.2024.07.110

Google Scholar

[7] A. Emdadi, S. Härtel, and A. Schmidt, 'A holistic approach for near-net-shape processing of iron aluminides by means of Laser Directed Energy Deposition with cored wires', presented at the 77th IIW Annual assembly and international conference on welding and joining, Rhodes, Jul. 2024, p.6.

Google Scholar

[8] X. Xi, B. Chen, C. Tan, X. Song, and J. Feng, 'Microstructure and mechanical properties of SiC reinforced AlSi10Mg composites fabricated by laser metal deposition', J. Manuf. Process., vol. 58, p.763–774, Oct. 2020.

DOI: 10.1016/j.jmapro.2020.08.073

Google Scholar

[9] V. Babrauskas, 'Electrical Fires', in SFPE Handbook of Fire Protection Engineering, M. J. Hurley, D. Gottuk, J. R. Hall, K. Harada, E. Kuligowski, M. Puchovsky, J. Torero, J. M. Watts, and C. Wieczorek, Eds., New York, NY: Springer New York, 2016, p.662–704.

DOI: 10.1007/978-1-4939-2565-0_22

Google Scholar

[10] W. M. Haynes and D. R. Lide, Eds., CRC handbook of chemistry and physics: a ready-reference book of chemical and physical data, 92nd ed., 2011–2012. Boca Raton, Fla.: CRC Press, 2011.

DOI: 10.1016/0165-9936(91)85111-4

Google Scholar

[11] J. Liu et al., 'Fabrication, microstructure, and properties of SiC/Al4SiC4 multiphase ceramics via an in-situ formed liquid phase sintering', J. Adv. Ceram., vol. 9, no. 2, p.193–203, Apr. 2020.

DOI: 10.1007/s40145-020-0359-8

Google Scholar
