Feasibility of Direct 3D Printing Foam Polylactic Acid with MEX

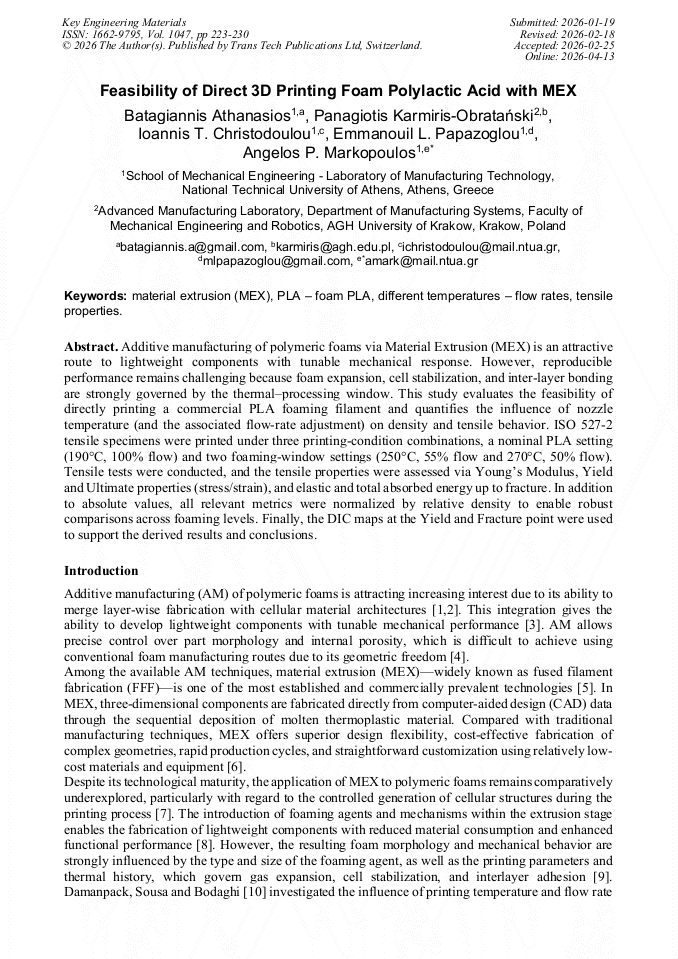

Article Preview
View Pdf By email

Abstract:

Additive manufacturing of polymeric foams via Material Extrusion (MEX) is an attractive route to lightweight components with tunable mechanical response. However, reproducible performance remains challenging because foam expansion, cell stabilization, and inter-layer bonding are strongly governed by the thermal–processing window. This study evaluates the feasibility of directly printing a commercial PLA foaming filament and quantifies the influence of nozzle temperature (and the associated flow-rate adjustment) on density and tensile behavior. ISO 527-2 tensile specimens were printed under three printing-condition combinations, a nominal PLA setting (190°C, 100% flow) and two foaming-window settings (250°C, 55% flow and 270°C, 50% flow). Tensile tests were conducted, and the tensile properties were assessed via Young’s Modulus, Yield and Ultimate properties (stress/strain), and elastic and total absorbed energy up to fracture. In addition to absolute values, all relevant metrics were normalized by relative density to enable robust comparisons across foaming levels. Finally, the DIC maps at the Yield and Fracture point were used to support the derived results and conclusions.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

223-230

Online since:

April 2026

Authors:

Batagiannis Athanasios, Panagiotis Karmiris-Obratański, Ioannis T. Christodoulou, Emmanouil Lazaros Papazoglou, Angelos P. Markopoulos*

Keywords:

Different Temperatures – Flow Rates, Material Extrusion, PLA - Foam PLA, Tensile Properties

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] K. Monkova, P.P. Monka, D. Godec, M. Torokova, Research into the Influence of Volume Fraction on the Bending Properties of Selected Thermoplastic Cellular Structures from a Mechanical and Energy Absorption Perspective, Polymers 17 (2025) 2795.

DOI: 10.3390/polym17202795

Google Scholar

[2] T. Standau, C. Zhao, S. Murillo Castellón, C. Bonten, V. Altstädt, Chemical Modification and Foam Processing of Polylactide (PLA), Polymers 11 (2019) 306.

DOI: 10.3390/polym11020306

Google Scholar

[3] K. Kalia, B. Francoeur, A. Amirkhizi, A. Ameli, In situ foam 3D printing of microcellular structures using material extrusion additive manufacturing, ACS Appl. Mater. Interfaces 14 (2022) 22454–22465.

DOI: 10.1021/acsami.2c03014

Google Scholar

[4] W. Gao, Y. Zhang, D. Ramanujan, K. Ramani, Y. Chen, C.B. Williams, et al., The status, challenges, and future of additive manufacturing in engineering, Comput.-Aided Des. 69 (2015) 65–89.

DOI: 10.1016/j.cad.2015.04.001

Google Scholar

[5] K. Monkova, P.P. Monka, J. Burgerova, G. Szabo, Investigating the Flexural Properties of 3D-Printed Nylon CF12 with Respect to the Correlation Between Loading and Layering Directions, Polymers 17 (2025) 788.

DOI: 10.3390/polym17060788

Google Scholar

[6] K. Rydzoń, Mechanical properties of body centered cubic based lattice structures with varying aspect ratio in the loading direction, Adv. Sci. Technol. Res. J. 19 (2025) 55–64.

DOI: 10.12913/22998624/207748

Google Scholar

[7] G. Epasto, D. Rizzo, L. Landolfi, A.L.H.S. Detry, I. Papa, A. Squillace, Design of monomaterial sandwich structures made with foam additive manufacturing, J. Manuf. Process. 121 (2024) 323–332.

DOI: 10.1016/j.jmapro.2024.05.033

Google Scholar

[8] M. Nofar, Effects of nano-/micro-sized additives and the corresponding induced crystallinity on the extrusion foaming behavior of PLA using supercritical CO2, Mater. Des. 101 (2016) 24–34.

DOI: 10.1016/j.matdes.2016.03.147

Google Scholar

[9] M. Nofar, A. Tabatabaei, C.B. Park, Effects of nano-/micro-sized additives on the crystallization behaviors of PLA and PLA/CO2 mixtures, Polymer 54 (2013) 2382–2391.

DOI: 10.1016/j.polymer.2013.02.049

Google Scholar

[10] A.R. Damanpack, A. Sousa, M. Bodaghi, Porous PLAs with controllable density by FDM 3D printing and chemical foaming agent, Micromachines 12 (2021) 866.

DOI: 10.3390/mi12080866

Google Scholar

[11] N.A.A. Hassan, S. Ahmad, R.S. Chen, F.D. Zailan, D. Shahdan, Effect of processing temperature and foaming agent loading on properties of polylactic acid/kenaf fiber composite foam, Mater. Today Proc. 7 (2019) 601–606.

DOI: 10.1016/j.matpr.2018.12.013

Google Scholar

[12] K.N. Gunasekaran, V. Aravinth, C.B. Muthu Kumaran, K. Madhankumar, S. Pradeep Kumar, Investigation of mechanical properties of PLA printed materials under varying infill density, Mater. Today Proc. 45 (2021) 1849–1856.

DOI: 10.1016/j.matpr.2020.09.041

Google Scholar
