Effect of Deposition Strategy on Geometric Stability in Wire Arc Additive Manufacturing of Inconel 625

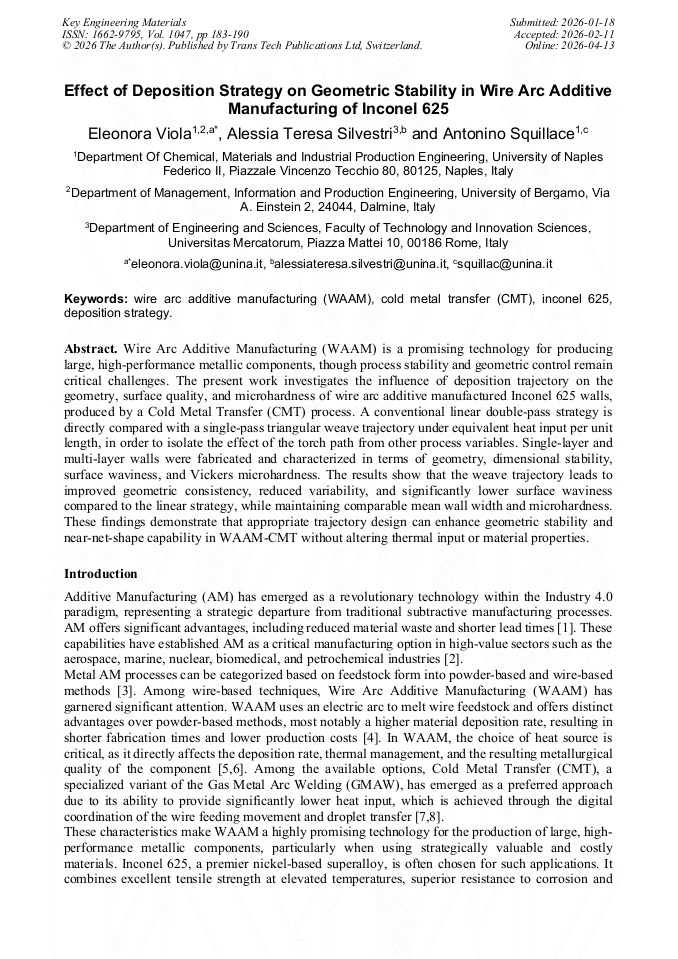

Article Preview
View Pdf By email

Abstract:

Wire Arc Additive Manufacturing (WAAM) is a promising technology for producing large, high-performance metallic components, though process stability and geometric control remain critical challenges. The present work investigates the influence of deposition trajectory on the geometry, surface quality, and microhardness of wire arc additive manufactured Inconel 625 walls, produced by a Cold Metal Transfer (CMT) process. A conventional linear double-pass strategy is directly compared with a single-pass triangular weave trajectory under equivalent heat input per unit length, in order to isolate the effect of the torch path from other process variables. Single-layer and multi-layer walls were fabricated and characterized in terms of geometry, dimensional stability, surface waviness, and Vickers microhardness. The results show that the weave trajectory leads to improved geometric consistency, reduced variability, and significantly lower surface waviness compared to the linear strategy, while maintaining comparable mean wall width and microhardness. These findings demonstrate that appropriate trajectory design can enhance geometric stability and near-net-shape capability in WAAM-CMT without altering thermal input or material properties.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

183-190

Online since:

April 2026

Authors:

Eleonora Viola*, Alessia Teresa Silvestri, Antonino Squillace

Keywords:

Cold Metal Transfer (CMT), Deposition Strategy, Inconel 625, Wire Arc Additive Manufacturing (WAAM)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] C. Guo, M. Ying, H. Dang, R. Hu, and F. Chen, "Microstructural and intergranular corrosion properties of Inconel 625 superalloys fabricated using wire arc additive manufacturing," Mater Res Express, vol. 8, no. 3, p.035103, Mar. 2021.

DOI: 10.1088/2053-1591/ABE977

Google Scholar

[2] A. N. M. Tanvir, M. R. U. Ahsan, C. Ji, W. Hawkins, B. Bates, and D. B. Kim, "Heat treatment effects on Inconel 625 components fabricated by wire + arc additive manufacturing (WAAM)—part 1: microstructural characterization," The International Journal of Advanced Manufacturing Technology 2019 103:9, vol. 103, no. 9, p.3785–3798, May 2019.

DOI: 10.1007/S00170-019-03828-6

Google Scholar

[3] R. S. Tanwar, P. Bhingole, and S. Jhavar, "A Comprehensive Review on Wire Arc Additive Manufacturing of Inconel Superalloys," Lecture Notes in Mechanical Engineering, p.113–129, 2025.

DOI: 10.1007/978-981-97-7114-1_10

Google Scholar

[4] G. Parmar, B. Tomar, S. Shiva, and A. K. Das, "Investigating the Effects of Deposition Strategies on the Performance of Inconel 625 in Wire Arc Additive Manufacturing," Journal of Materials Engineering and Performance 2024 34:16, vol. 34, no. 16, p.18227–18242, Dec. 2024.

DOI: 10.1007/S11665-024-10482-X

Google Scholar

[5] M. Rashid, S. Sabu, A. Kunjachan, M. Agilan, T. Anjilivelil, and J. Joseph, "'Advances in wire-arc additive manufacturing of nickel-based superalloys: Heat sources, DfAM principles, material evaluation, process parameters, defect management, corrosion evaluation and post-processing techniques,'" International Journal of Lightweight Materials and Manufacture, vol. 7, no. 6, p.882–913, Nov. 2024.

DOI: 10.1016/J.IJLMM.2024.05.009

Google Scholar

[6] M. Cheepu, C. I. Lee, and S. M. Cho, "Microstructural Characteristics of Wire Arc Additive Manufacturing with Inconel 625 by Super-TIG Welding," Transactions of the Indian Institute of Metals 2020 73:6, vol. 73, no. 6, p.1475–1479, Mar. 2020.

DOI: 10.1007/S12666-020-01915-X

Google Scholar

[7] G. H. S. F. L. Carvalho, A. T. Silvestri, G. Campatelli, and A. Squillace, "Effect of cooling strategies on Inconel 625 components produced by wire arc additive manufacturing," International Journal of Advanced Manufacturing Technology, vol. 133, no. 7–8, p.3631–3646, Aug. 2024.

DOI: 10.1007/s00170-024-13978-x

Google Scholar

[8] A. El Hassanin, G. Campatelli, R. Sepe, A. T. Silvestri, and A. Squillace, "Effect of energy input on fatigue crack growth behavior of titanium alloy Ti6Al4V made by WAAM-CMT," Fatigue Fract Eng Mater Struct, vol. 47, no. 4, p.1466–1481, Apr. 2024.

DOI: 10.1111/FFE.14257

Google Scholar

[9] M. Bhuvanesh Kumar, P. Sathiya, and S. M. Senthil, "A critical review of wire arc additive manufacturing of nickel-based alloys: principles, process parameters, microstructure, mechanical properties, heat treatment effects, and defects," Journal of the Brazilian Society of Mechanical Sciences and Engineering 2023 45:3, vol. 45, no. 3, p.164-, Feb. 2023.

DOI: 10.1007/S40430-023-04077-1

Google Scholar

[10] O. M. Akselsen, R. Bjørge, H. W. Ånes, X. Ren, and B. Nyhus, "Microstructure and Properties of Wire Arc Additive Manufacturing of Inconel 625," Metals 2022, Vol. 12, Page 1867, vol. 12, no. 11, p.1867, Nov. 2022.

DOI: 10.3390/MET12111867

Google Scholar

[11] Q. Jiang et al., "Microstructure and Mechanical Properties of Thick-Walled Inconel 625 Alloy Manufactured by Wire Arc Additive Manufacture with Different Torch Paths," Adv Eng Mater, vol. 23, no. 1, p.2000728, Jan. 2021.

DOI: 10.1002/ADEM.202000728

Google Scholar

[12] J. Zhao et al., "Influence of deposition path strategy on residual stress and deformation in weaving wire-arc additive manufacturing of disc parts," Journal of Materials Research and Technology, vol. 30, p.2242–2256, May 2024.

DOI: 10.1016/J.JMRT.2024.03.226

Google Scholar

[13] L. Palmeira Belotti, J. A. W. van Dommelen, M. G. D. Geers, W. Ya, and J. P. M. Hoefnagels, "Influence of the printing strategy on the microstructure and mechanical properties of thick-walled wire arc additive manufactured stainless steels," J Mater Process Technol, vol. 324, p.118275, Mar. 2024.

DOI: 10.1016/J.JMATPROTEC.2023.118275

Google Scholar

[14] J. Bultman and C. Saldaña, "Effects of weave path parameters on the geometry of wire arc additive manufactured features," The International Journal of Advanced Manufacturing Technology 2022 124:7, vol. 124, no. 7, p.2563–2577, Dec. 2022.

DOI: 10.1007/S00170-022-10546-Z

Google Scholar

[15] Y. Zhao, F. Chen, S. Cao, C. Chen, and R. Xie, "Effect of CMT Welding Heat Input on Microstructure and Properties of 2A14 Aluminum Alloy Joint," Metals 2022, Vol. 12, Page 2100, vol. 12, no. 12, p.2100, Dec. 2022.

DOI: 10.3390/MET12122100

Google Scholar

[16] C. Zhang et al., "On the Effect of Heat Input and Interpass Temperature on the Performance of Inconel 625 Alloy Deposited Using Wire Arc Additive Manufacturing–Cold Metal Transfer Process," Metals 2022, Vol. 12, Page 46, vol. 12, no. 1, p.46, Dec. 2021.

DOI: 10.3390/MET12010046

Google Scholar
