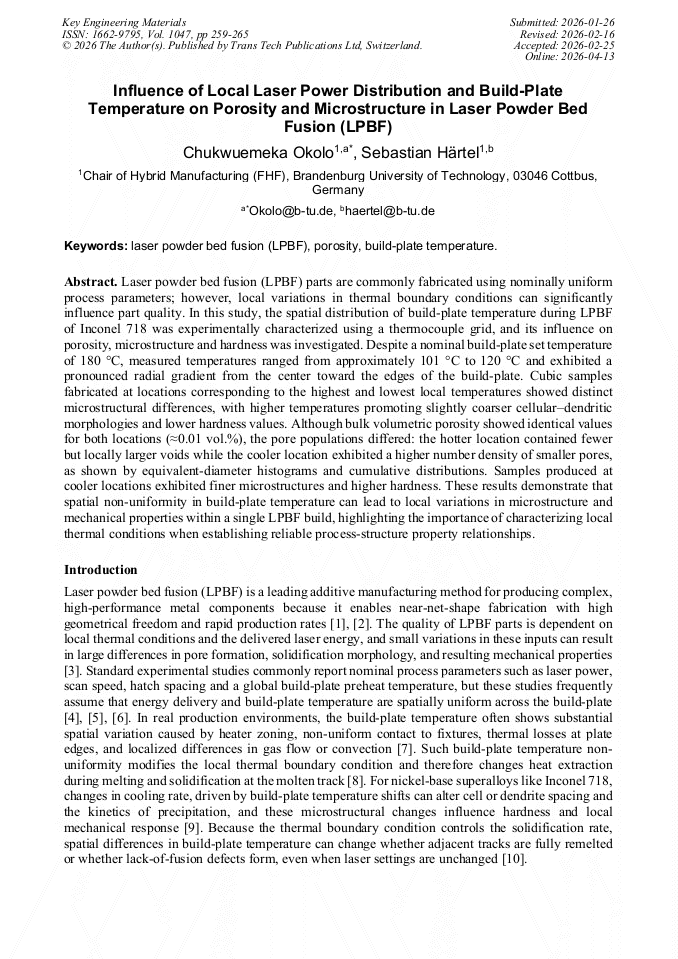

Influence of Local Laser Power Distribution and Build-Plate Temperature on Porosity and Microstructure in Laser Powder Bed Fusion (LPBF)

Abstract:

Laser powder bed fusion (LPBF) parts are commonly fabricated using nominally uniform process parameters; however, local variations in thermal boundary conditions can significantly influence part quality. In this study, the spatial distribution of build-plate temperature during LPBF of Inconel 718 was experimentally characterized using a thermocouple grid, and its influence on porosity, microstructure and hardness was investigated. Despite a nominal build-plate set temperature of 180 °C, measured temperatures ranged from approximately 101 °C to 120 °C and exhibited a pronounced radial gradient from the center toward the edges of the build-plate. Cubic samples fabricated at locations corresponding to the highest and lowest local temperatures showed distinct microstructural differences, with higher temperatures promoting slightly coarser cellular–dendritic morphologies and lower hardness values. Although bulk volumetric porosity showed identical values for both locations (≈0.01 vol.%), the pore populations differed: the hotter location contained fewer but locally larger voids while the cooler location exhibited a higher number density of smaller pores, as shown by equivalent-diameter histograms and cumulative distributions. Samples produced at cooler locations exhibited finer microstructures and higher hardness. These results demonstrate that spatial non-uniformity in build-plate temperature can lead to local variations in microstructure and mechanical properties within a single LPBF build, highlighting the importance of characterizing local thermal conditions when establishing reliable process-structure property relationships.

• Periodical: Key Engineering Materials (Volume 1047)
• Pages: 259-265
• Online since: April 2026
• Authors: Chukwuemeka Okolo*, Sebastian Härtel
• Keywords: Build-Plate Temperature, Laser Powder Bed Fusion, Porosity

References

[1] T. DebRoy u. a., "Additive manufacturing of metallic components – Process, structure and properties", Progress in Materials Science, Bd. 92, S. 112–224, März 2018.

DOI: 10.1016/j.pmatsci.2017.10.001

[2] M. McGregor, S. Patel, K. Zhang, A. Yu, M. Vlasea, und S. McLachlin, "A Manufacturability Evaluation of Complex Architectures by Laser Powder Bed Fusion Additive Manufacturing", Journal of Manufacturing Science and Engineering, Bd. 146, Nr. 6, S. 061007, Juni 2024.

DOI: 10.1115/1.4065315

[3] A. Ur Rehman, F. Pitir, und M. U. Salamci, "Laser Powder Bed Fusion (LPBF) of In718 and the Impact of Pre-Heating at 500 and 1000 °C: Operando Study", Materials, Bd. 14, Nr. 21, S. 6683, Nov. 2021.

DOI: 10.3390/ma14216683

[4] S. Chowdhury u. a., "Laser powder bed fusion: a state-of-the-art review of the technology, materials, properties & defects, and numerical modelling", Journal of Materials Research and Technology, Bd. 20, S. 2109–2172, Sep. 2022.

DOI: 10.1016/j.jmrt.2022.07.121

[5] Q. Chen u. a., "Elucidating the effect of preheating temperature on melt pool morphology variation in Inconel 718 laser powder bed fusion via simulation and experiment", Additive Manufacturing, Bd. 37, S. 101642, Jan. 2021.

DOI: 10.1016/j.addma.2020.101642

[6] J.-H. Park u. a., "Effect of Preheating Temperature on Microstructural and Mechanical Properties of Inconel 718 Fabricated by Selective Laser Melting", Met. Mater. Int., Bd. 28, Nr. 11, S. 2836–2848, Nov. 2022.

DOI: 10.1007/s12540-022-01169-w

[7] N. Baldi, A. Giorgetti, M. Palladino, I. Giovannetti, G. Arcidiacono, und P. Citti, "Study on the Effect of Preheating Temperatures on Melt Pool Stability in Inconel 718 Components Processed by Laser Powder Bed Fusion", Metals, Bd. 13, Nr. 10, S. 1792, Okt. 2023.

DOI: 10.3390/met13101792

[8] D. Bayoumy, T. Boll, A. S. Karapuzha, X. Wu, Y. Zhu, und A. Huang, "Effective Platform Heating for Laser Powder Bed Fusion of an Al-Mn-Sc-Based Alloy", Materials, Bd. 16, Nr. 24, S. 7586, Dez. 2023.

DOI: 10.3390/ma16247586

[9] E. Duong, L. Masseling, C. Knaak, P. Dionne, und M. Megahed, "Scan path resolved thermal modelling of LPBF", Additive Manufacturing Letters, Bd. 3, S. 100047, Dez. 2022.

DOI: 10.1016/j.addlet.2022.100047

[10] M. Tang, P. C. Pistorius, und J. L. Beuth, "Prediction of lack-of-fusion porosity for powder bed fusion", Additive Manufacturing, Bd. 14, S. 39–48, März 2017.

DOI: 10.1016/j.addma.2016.12.001

[11] J. S. Weaver, J. C. Heigel, und B. M. Lane, "Laser spot size and scaling laws for laser beam additive manufacturing", Journal of Manufacturing Processes, Bd. 73, S. 26–39, Jan. 2022.

DOI: 10.1016/j.jmapro.2021.10.053

[12] S. A. Khairallah, A. T. Anderson, A. Rubenchik, und W. E. King, "Laser powder-bed fusion additive manufacturing: Physics of complex melt flow and formation mechanisms of pores, spatter, and denudation zones", Acta Materialia, Bd. 108, S. 36–45, Apr. 2016.

DOI: 10.1016/j.actamat.2016.02.014
