Advanced FE Modeling for Predicting Component Properties in Additive Manufacturing

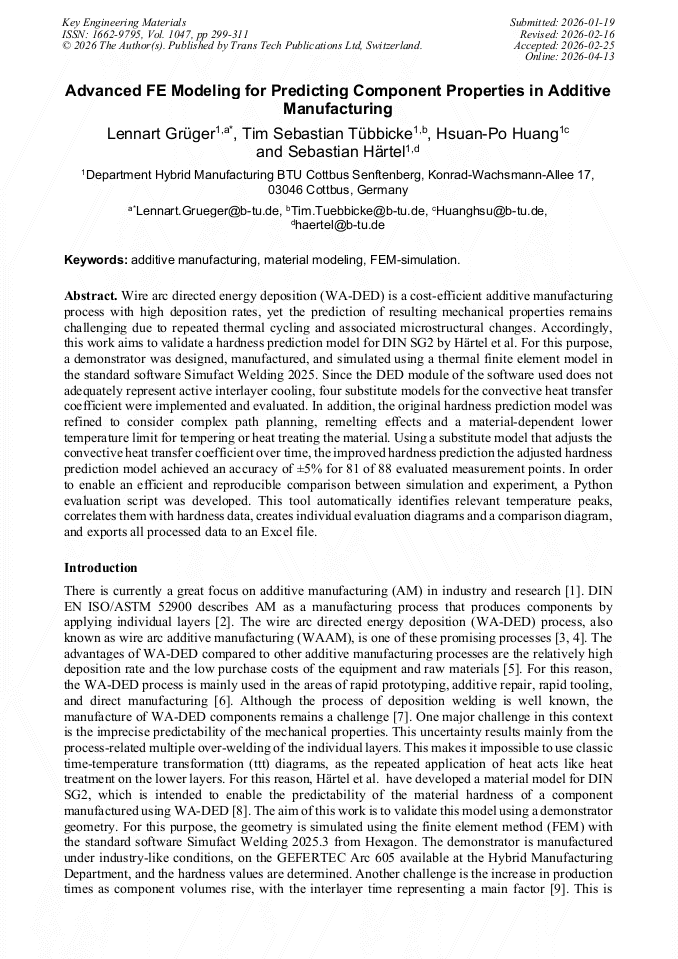

Article Preview
View Pdf By email

Abstract:

Wire arc directed energy deposition (WA-DED) is a cost-efficient additive manufacturing process with high deposition rates, yet the prediction of resulting mechanical properties remains challenging due to repeated thermal cycling and associated microstructural changes. Accordingly, this work aims to validate a hardness prediction model for DIN SG2 by Härtel et al. For this purpose, a demonstrator was designed, manufactured, and simulated using a thermal finite element model in the standard software Simufact Welding 2025. Since the DED module of the software used does not adequately represent active interlayer cooling, four substitute models for the convective heat transfer coefficient were implemented and evaluated. In addition, the original hardness prediction model was refined to consider complex path planning, remelting effects and a material-dependent lower temperature limit for tempering or heat treating the material. Using a substitute model that adjusts the convective heat transfer coefficient over time, the improved hardness prediction the adjusted hardness prediction model achieved an accuracy of ±5% for 81 of 88 evaluated measurement points. In order to enable an efficient and reproducible comparison between simulation and experiment, a Python evaluation script was developed. This tool automatically identifies relevant temperature peaks, correlates them with hardness data, creates individual evaluation diagrams and a comparison diagram, and exports all processed data to an Excel file.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

299-311

Online since:

April 2026

Authors:

Lennart Grüger*, Tim Sebastian Tübbicke, Huan Po Huang, Sebastian Härtel

Keywords:

Additive Manufacturing, FEM-Simulation, Material Modeling

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] J. Bobke, T. Russack, und J. Weinhold, Hrsg., Potenziale und Herausforderungen der Additiven Fertigung: Gesellschaft – Wirtschaft – Wissenschaft und Transfer. in FOM-Edition, FOM Hochschule für Oekonomie & Management. Wiesbaden: Springer Fachmedien Wiesbaden, 2025.

DOI: 10.1007/978-3-658-45141-7

Google Scholar

[2] "DIN EN ISO/ASTM 52900:2022-03, Additive Fertigung_- Grundlagen_- Terminologie (ISO/ASTM 52900:2021); Deutsche Fassung EN_ISO/ASTM 52900:2021", Beuth Verlag GmbH, Berlin, 2022.

DOI: 10.31030/3290011

Google Scholar

[3] S. W. Williams, F. Martina, A. C. Addison, J. Ding, G. Pardal, und P. Colegrove, "Wire + Arc Additive Manufacturing", Materials Science and Technology, Bd. 32, Nr. 7, S. 641–647, Jan. 2016.

DOI: 10.1179/1743284715Y.0000000073

Google Scholar

[4] S. C. A. Costello, C. R. Cunningham, F. Xu, A. Shokrani, V. Dhokia, und S. T. Newman, "The state-of-the-art of wire arc directed energy deposition (WA-DED) as an additive manufacturing process for large metallic component manufacture", International Journal of Computer Integrated Manufacturing, Bd. 36, Nr. 3, S. 469–510, Jan. 2023.

DOI: 10.1080/0951192X.2022.2162597

Google Scholar

[5] C. Schmid, "Konstruktive Randbedingungen bei Anwendung des WAAM-Verfahrens", in Konstruktion für die Additive Fertigung 2019, R. Lachmayer, K. Rettschlag, und S. Kaierle, Hrsg., Berlin; Heidelberg: Springer Vieweg, 2020, S. 203–222.

DOI: 10.1007/978-3-662-61149-4_13

Google Scholar

[6] R. Lachmayer und R. B. Lippert, "Grundlagen", in Entwicklungsmethodik für die Additive Fertigung, R. Lachmayer und R. B. Lippert, Hrsg., Berlin, Heidelberg: Springer Berlin Heidelberg, 2020, S. 7–20.

DOI: 10.1007/978-3-662-59789-7_2

Google Scholar

[7] M. Seifi, A. Salem, J. Beuth, O. Harrysson, und J. J. Lewandowski, "Overview of Materials Qualification Needs for Metal Additive Manufacturing", JOM, Bd. 68, Nr. 3, S. 747–764, Jan. 2016.

DOI: 10.1007/s11837-015-1810-0

Google Scholar

[8] S. Härtel, J. Szyndler, M. Pakdel Sefidi, und R. Jäger, "Prediction of the evolution of material properties during the AM process based on the FEM simulation and experimental results", in Materials Research Proceedings, Materials Research Forum LLC, Mai 2024, S. 40–49.

DOI: 10.21741/9781644903131-5

Google Scholar

[9] Y. Lei, J. Xiong, und R. Li, "Effect of inter layer idle time on thermal behavior for multi-layer single-pass thin-walled parts in GMAW-based additive manufacturing", Int J Adv Manuf Technol, Bd. 96, Nr. 1–4, S. 1355–1365, Apr. 2018.

DOI: 10.1007/s00170-018-1699-1

Google Scholar

[10] L. Mösle, "Umbau der BTU-Bibliothek trotz Denkmalschutz – wie das geht". [Online]. Verfügbar unter: https://www.lr-online.de/lausitz/cottbus/uni-in-cottbus-umbau-der-btu-bibliothek-trotz-denkmalschutz-wie-das-geht-78149145.html.

DOI: 10.5771/9783845236995-47

Google Scholar

[11] Hexagon AB (Publ), Simufact Welding 2025.1 Handbuch. Hexagon AB (Publ).

Google Scholar
