Effect of Preheating Temperature on the Optimal Processing Windows of Inconel 718 Processed by Laser Power Bed Fusion

Abstract:

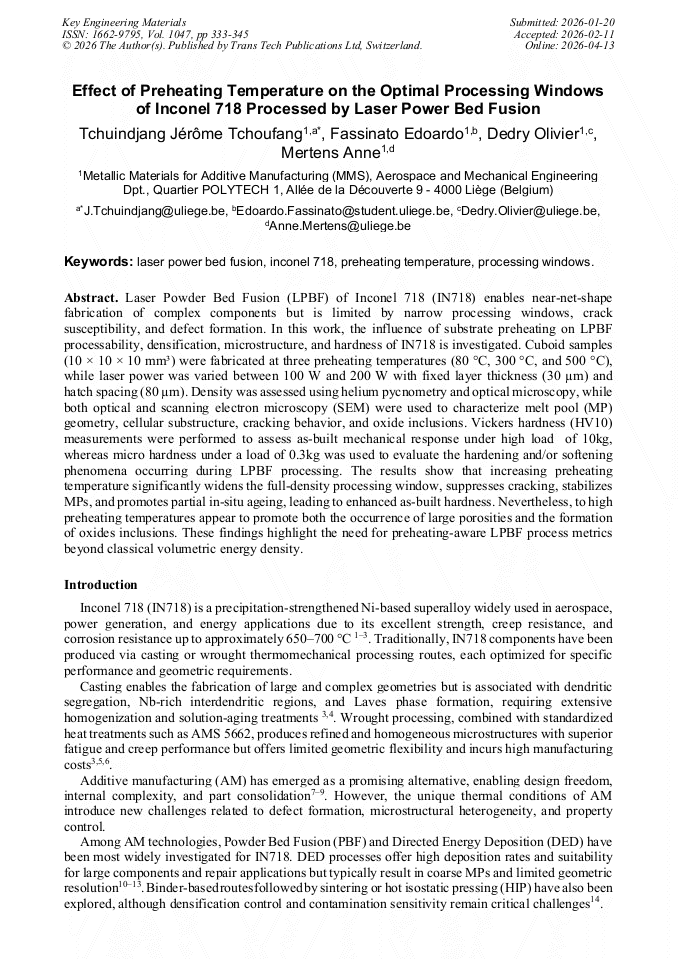

Laser Powder Bed Fusion (LPBF) of Inconel 718 (IN718) enables near-net-shape fabrication of complex components but is limited by narrow processing windows, crack susceptibility, and defect formation. In this work, the influence of substrate preheating on LPBF processability, densification, microstructure, and hardness of IN718 is investigated. Cuboid samples (10 × 10 × 10 mm³) were fabricated at three preheating temperatures (80 °C, 300 °C, and 500 °C), while laser power was varied between 100 W and 200 W with fixed layer thickness (30 µm) and hatch spacing (80 µm). Density was assessed using helium pycnometry and optical microscopy, while both optical and scanning electron microscopy (SEM) were used to characterize melt pool (MP) geometry, cellular substructure, cracking behavior, and oxide inclusions. Vickers hardness (HV10) measurements were performed to assess as-built mechanical response under high load of 10kg, whereas micro hardness under a load of 0.3kg was used to evaluate the hardening and/or softening phenomena occurring during LPBF processing. The results show that increasing preheating temperature significantly widens the full-density processing window, suppresses cracking, stabilizes MPs, and promotes partial in-situ ageing, leading to enhanced as-built hardness. Nevertheless, to high preheating temperatures appear to promote both the occurrence of large porosities and the formation of oxides inclusions. These findings highlight the need for preheating-aware LPBF process metrics beyond classical volumetric energy density.

• Periodical: Key Engineering Materials (Volume 1047)
• Pages: 333-345
• Online since: April 2026
• Authors: Jérôme Tchoufang Tchuindjang*, Edoardo Fassinato, Olivier Dedry, Anne Mertens
• Keywords: Inconel 718, Laser Powder Bed Fusion, Preheating Temperature, Processing Windows

References

[1] Satyanarayana, D. V. V., and Eswara Prasad, N. "Nickel-Based Superalloys." In: Prasad, N. E., Wanhill, R. J. H., eds. Aerospace Materials and Material Technologies : Volume 1: Aerospace Materials. Singapore, Springer, 2017. p.199–228.

DOI: 10.1007/978-981-10-2134-3_9

[2] Bian, Z., Li, M., Liu, H., et al. "Comprehensive Optimization of Tensile and Creep Properties of Inconel 718 Superalloy at Room Temperature and Elevated Temperature Through Grain Boundary Engineering Treatments," 2024.

DOI: 10.2139/ssrn.4916263

[3] Bryndza, G., Tchuindjang, J. T., Chen, F., et al. "Review of the Microstructural Impact on Creep Mechanisms and Performance for Laser Powder Bed Fusion Inconel 718," Materials, V. 18, No. 2, 2025, p.276.

DOI: 10.3390/ma18020276

[4] Darolia, R. "Development of strong, oxidation and corrosion resistant nickel-based superalloys: critical review of challenges, progress and prospects," International Materials Reviews, V. 64, No. 6, 2019, p.355–80.

DOI: 10.1080/09506608.2018.1516713

[5] Radavich, J. F., and Carneiro, T. "A microstructural study of alloy 718 Plus," Superalloys, V. 718, 2005, p.625–706.

DOI: 10.7449/2005/superalloys_2005_329_340

[6] Ajay, P., and Dabhade, V. V. "Heat treatments of Inconel 718 nickel-based superalloy: A Review," Metals and Materials International, V. 31, No. 5, 2025, p.1204–31.

DOI: 10.1007/s12540-024-01812-8

[7] Yang, S., Tang, Y., and Zhao, Y. F. "A new part consolidation method to embrace the design freedom of additive manufacturing," Journal of Manufacturing Processes, V. 20, 2015, p.444–9.

DOI: 10.1016/j.jmapro.2015.06.024

[8] DebRoy, T., Wei, H. L., Zuback, J. S., et al. "Additive manufacturing of metallic components – Process, structure and properties," Progress in Materials Science, V. 92, 2018, p.112–224.

DOI: 10.1016/j.pmatsci.2017.10.001

[9] Schmelzle, J., Kline, E. V., Dickman, C. J., et al. "(Re)Designing for Part Consolidation: Understanding the Challenges of Metal Additive Manufacturing," Journal of Mechanical Design, V. 137, No. 111404, 2015.

DOI: 10.1115/1.4031156

[10] Liu, M., Kumar, A., Bukkapatnam, S., et al. "A review of the anomalies in directed energy deposition (DED) processes & potential solutions-part quality & defects," Procedia Manufacturing, V. 53, 2021, p.507–18.

DOI: 10.1016/j.promfg.2021.06.093

[11] Herzog, D., Seyda, V., Wycisk, E., et al. "Additive manufacturing of metals," Acta Materialia, V. 117, 2016, p.371–92.

DOI: 10.1016/j.actamat.2016.07.019

[12] Saboori, A., Aversa, A., Marchese, G., et al. "Application of directed energy deposition-based additive manufacturing in repair," Applied Sciences, V. 9, No. 16, 2019, p.3316.

DOI: 10.3390/app9163316

[13] Lehmann, T., Rose, D., Ranjbar, E., et al. "Large-scale metal additive manufacturing: a holistic review of the state of the art and challenges," International Materials Reviews, V. 67, No. 4, 2022, p.410–59.

DOI: 10.1080/09506608.2021.1971427

[14] Li, M., Du, W., Elwany, A., et al. "Metal Binder Jetting Additive Manufacturing: A Literature Review," Journal of Manufacturing Science and Engineering, V. 142, No. 090801, 2020.

DOI: 10.1115/1.4047430

[15] Jiang, C.-P., Masrurotin., Wibisono, A. T., et al. "Enhancing internal cooling channel design in Inconel 718 turbine blades via laser powder bed fusion: a comprehensive review of surface topography enhancements," International Journal of Precision Engineering and Manufacturing, V. 26, No. 2, 2025, p.487–511.

DOI: 10.1007/s12541-024-01177-3

[16] Cobbinah, P. V., Nzeukou, R. A., Onawale, O. T., et al. "Laser powder bed fusion of potential superalloys: a review," Metals, V. 11, No. 1, 2020, p.58.

DOI: 10.3390/met11010058

[17] Wu, H., Zhou, J., Huang, L., et al. "Advances in Crack Formation Mechanisms, Evaluation Models, and Compositional Strategies for Additively Manufactured Nickel-Based Superalloys," Computer Modeling in Engineering & Sciences, V. 143, No. 3, 2025, p.2675.

DOI: 10.32604/cmes.2025.064854

[18] Jeong, S. G., Ahn, S. Y., Kim, E. S., et al. "Liquation cracking in laser powder bed fusion-fabricated Inconel718 of as-built, stress-relieved, and hot isostatic pressed conditions," Materials Science and Engineering: A, V. 888, 2023, p.145797.

DOI: 10.1016/j.msea.2023.145797

[19] Zhang, Y., Yang, L., Chen, T., et al. "Sensitivity of liquation cracking to deposition parameters and residual stresses in laser deposited IN718 alloy," Journal of Materials Engineering and performance, V. 26, No. 11, 2017, p.5519–29.

DOI: 10.1007/s11665-017-2966-2

[20] Li, Y., Long, H., Wang, Y., et al. "A novel and high-efficiency dual-electron gun concurrent preheating additive manufacturing technology: suppressing thermal cracks in non-weldable IN738LC nickel-based superalloy by mitigating temperature fluctuations," Virtual and Physical Prototyping, V. 20, No. 1, 2025, p. e2518615.

DOI: 10.1080/17452759.2025.2518615

[21] Fu, Z., and Körner, C. "Actual state-of-the-art of electron beam powder bed fusion," European Journal of Materials, V. 2, No. 1, 2022, p.54–116.

DOI: 10.1080/26889277.2022.2040342

[22] Yue, T., Zou, Z., Zhang, S., et al. "Effects of volumetric energy density on melting modes, printability, microstructures, and mechanical properties of laser powder bed fusion (L-PBF) printed pure nickel," Materials Science and Engineering: A, V. 909, 2024, p.146871.

DOI: 10.1016/j.msea.2024.146871

[23] Pramod, S., and Kesavan, D. "Melting modes of laser powder bed fusion (L-PBF) processed IN718 alloy: Prediction and experimental analysis," Advances in Industrial and Manufacturing Engineering, V. 6, 2023, p.100106.

DOI: 10.1016/j.aime.2022.100106

[24] Hu, Y., Jia, H.-B., Hu, Y.-Q., et al. "Thermal cycling on microstructure and mechanical properties of laser powder bed fusion manufactured IN738LC alloy," Rare Metals, V. 43, No. 12, 2024, p.6649–72.

DOI: 10.1007/s12598-024-02851-1

[25] Haribaskar, R., and Kumar, T. S. "Defects in metal additive manufacturing: formation, process parameters, postprocessing, challenges, economic aspects, and future research directions," 3D Printing and Additive Manufacturing, V. 11, No. 4, 2024, pp. e1629–55.

DOI: 10.1089/3dp.2022.0344

[26] Guo, L., Liu, H., Wang, H., et al. "Identifying the keyhole stability and pore formation mechanisms in laser powder bed fusion additive manufacturing," Journal of Materials Processing Technology, V. 321, 2023, p.118153.

DOI: 10.1016/j.jmatprotec.2023.118153

[27] Huang, Y., Fleming, T. G., Clark, S. J., et al. "Keyhole fluctuation and pore formation mechanisms during laser powder bed fusion additive manufacturing," Nature communications, V. 13, No. 1, 2022, p.1170.

DOI: 10.1038/s41467-022-28694-x

[28] Pant, P., Salvemini, F., Proper, S., et al. "A study of the influence of novel scan strategies on residual stress and microstructure of L-shaped LPBF IN718 samples," Materials & design, V. 214, 2022, p.110386.

DOI: 10.1016/j.matdes.2022.110386

[29] Liu, L., Wang, D., Yang, Y., et al. "Effect of scanning strategies on the microstructure and mechanical properties of inconel 718 alloy fabricated by laser powder bed fusion," Advanced Engineering Materials, V. 25, No. 5, 2023, p.2200492.

DOI: 10.1002/adem.202200492

[30] Gruber, K., Smolina, I., Kasprowicz, M., et al. "Evaluation of Inconel 718 metallic powder to optimize the reuse of powder and to improve the performance and sustainability of the laser powder bed fusion (LPBF) process," Materials, V. 14, No. 6, 2021, p.1538.

DOI: 10.3390/ma14061538

[31] Newell, D. J., O'Hara, R. P., Cobb, G. R., et al. "Mitigation of scan strategy effects and material anisotropy through supersolvus annealing in LPBF IN718," Materials Science and Engineering: A, V. 764, 2019, p.138230.

DOI: 10.1016/j.msea.2019.138230

[32] Caiazzo, F., Alfieri, V., and Casalino, G. "On the relevance of volumetric energy density in the investigation of Inconel 718 laser powder bed fusion," Materials, V. 13, No. 3, 2020, p.538.

DOI: 10.3390/ma13030538

[33] de Leon Nope, G. V., Perez-Andrade, L. I., Corona-Castuera, J., et al. "Study of volumetric energy density limitations on the IN718 mesostructure and microstructure in laser powder bed fusion process," Journal of Manufacturing Processes, V. 64, 2021, p.1261–72.

DOI: 10.1016/j.jmapro.2021.02.043

[34] Kakehi, K., Chowdhury, H. T., Shinoda, Y., et al. "Effects of base plate temperature on microstructure evolution and high-temperature mechanical properties of IN718 processed by laser powder bed fusion using simulation and experiment," The International Journal of Advanced Manufacturing Technology, V. 130, No. 11, 2024, p.5777–93.

DOI: 10.1007/s00170-024-13028-6

[35] Shrivastava, A., Kumar, S. A., Rao, S., et al. "Exploring How LPBF process parameters impact the interface characteristics of LPBF Inconel 718 deposited on Inconel 718 wrought substrates," Optics & Laser Technology, V. 174, 2024, p.110571.

DOI: 10.1016/j.optlastec.2024.110571

[36] Ur Rehman, A., Pitir, F., and Salamci, M. U. "Laser powder bed fusion (LPBF) of In718 and the impact of pre-heating at 500 and 1000° C: Operando Study," Materials, V. 14, No. 21, 2021, p.6683.

DOI: 10.3390/ma14216683

[37] Baldi, N., Giorgetti, A., Palladino, M., et al. "Study on the Effect of Preheating Temperatures on Melt Pool Stability in Inconel 718 Components Processed by Laser Powder Bed Fusion," Metals, V. 13, No. 10, 2023, p.1792.

DOI: 10.3390/met13101792

[38] Zielinski, J., Theunissen, J., Kruse, H., et al. "Understanding Inhomogeneous Mechanical Properties in PBF-LB/M Manufactured Parts Due to Inhomogeneous Macro Temperature Profiles Based on Process-Inherent Preheating," Journal of Manufacturing and Materials Processing, V. 7, No. 3, 2023, p.88.

DOI: 10.3390/jmmp7030088

[39] Chen, Y., Wang, W., Ou, Y., et al. "Effect of high preheating on the microstructure and mechanical properties of high gamma prime Ni-based superalloy manufactured by laser powder bed fusion," Journal of Alloys and Compounds, V. 960, 2023, p.170598.

DOI: 10.1016/j.jallcom.2023.170598

[40] Ur Rehman, A., Pitir, F., and Salamci, M. U. "Laser Powder Bed Fusion (LPBF) of In718 and the Impact of Pre-Heating at 500 and 1000 °C: Operando Study," Materials, V. 14, No. 21, 2021, p.6683.

DOI: 10.3390/ma14216683

[41] Wang, X., and Chou, K. "Effects of thermal cycles on the microstructure evolution of Inconel 718 during selective laser melting process," Additive Manufacturing, V. 18, 2017, p.1–14.

DOI: 10.1016/j.addma.2017.08.016

[42] Zhang, H., Wu, Y., Wang, Y., et al. "In-situ nanoscale precipitation behavior and strengthening mechanism of WC/IN718 composites manufactured by laser powder bed fusion," Composites Part B: Engineering, V. 284, 2024, p.111727.

DOI: 10.1016/j.compositesb.2024.111727

[43] Tucho, W. M., Cuvillier, P., Sjolyst-Kverneland, A., et al. "Microstructure and hardness studies of Inconel 718 manufactured by selective laser melting before and after solution heat treatment," Materials Science and Engineering: A, V. 689, 2017, p.220–32.

DOI: 10.1016/j.msea.2017.02.062

[44] Kumara, C., Balachandramurthi, A. R., Goel, S., et al. "Toward a better understanding of phase transformations in additive manufacturing of Alloy 718," Materialia, V. 13, 2020, p.100862.

DOI: 10.1016/j.mtla.2020.100862

[45] Simonelli, M., Tuck, C., Aboulkhair, N. T., et al. "A Study on the Laser Spatter and the Oxidation Reactions During Selective Laser Melting of 316L Stainless Steel, Al-Si10-Mg, and Ti-6Al-4V," Metallurgical and Materials Transactions A, V. 46, No. 9, 2015, p.3842–51.

DOI: 10.1007/s11661-015-2882-8

[46] Beyhaghi, M., Rouhani, M., Hobley, J., et al. "In-situ and ex-situ comparison of oxidation of Inconel 718 manufactured by selective laser melting and conventional methods up to 650 °C," Applied Surface Science, V. 569, 2021, p.151037.

DOI: 10.1016/j.apsusc.2021.151037

[47] Ohtsuki, T., and Pistorius, P. C. "Oxide Behavior During Laser Surface Melting," Metals, V. 15, No. 6, 2025, p.627.

DOI: 10.3390/met15060627

[48] Bryndza, G., Tchuindjang, J. T., Chen, F., et al. "Review of the Microstructural Impact on Creep Mechanisms and Performance for Laser Powder Bed Fusion Inconel 718," Materials, V. 18, No. 2, 2025, p.276.

DOI: 10.3390/ma18020276

[49] Chaudhari, S. B., and Wakchaure, V. D. "A Comprehensive Review on the High-Temperature Behavior of Additively Manufactured Inconel 718." International Conference on Additive Manufacturing. Springer, 2024. p.439–524.

DOI: 10.1007/978-981-97-6016-9_34

[50] Markanday, J. F. S. "Applications of alloy design to cracking resistance of additively manufactured Ni-based alloys," Materials Science and Technology, V. 38, No. 16, 2022, p.1300–14.

DOI: 10.1080/02670836.2022.2068759

[51] Ghoussoub, J. N., Tang, Y. T., Dick-Cleland, W. J. B., et al. "On the Influence of Alloy Composition on the Additive Manufacturability of Ni-Based Superalloys," Metallurgical and Materials Transactions A, V. 53, No. 3, 2022, p.962–83.

DOI: 10.1007/s11661-021-06568-z

[52] Chen, Q., Zhao, Y., Strayer, S., et al. "Elucidating the effect of preheating temperature on melt pool morphology variation in Inconel 718 laser powder bed fusion via simulation and experiment," Additive Manufacturing, V. 37, 2021, p.101642.

DOI: 10.1016/j.addma.2020.101642

[53] Pramod, S., and Kesavan, D. "Melting modes of laser powder bed fusion (L-PBF) processed IN718 alloy: Prediction and experimental analysis," Advances in Industrial and Manufacturing Engineering, V. 6, 2023, p.100106.

DOI: 10.1016/j.aime.2022.100106

[54] Coen, V., Goossens, L., and Hooreweder, B. V. "Methodology and experimental validation of analytical melt pool models for laser powder bed fusion," Journal of Materials Processing Technology, V. 304, 2022, p.117547.

DOI: 10.1016/j.jmatprotec.2022.117547

[55] Hasani, N., Dharmendra, C., Sanjari, M., et al. "Laser powder bed fused Inconel 718 in stress-relieved and solution heat-treated conditions," Materials Characterization, V. 181, 2021, p.111499.

DOI: 10.1016/j.matchar.2021.111499

[56] Jiang, R., Mostafaei, A., Wu, Z., et al. "Effect of heat treatment on microstructural evolution and hardness homogeneity in laser powder bed fusion of alloy 718," Additive Manufacturing, V. 35, 2020, p.101282.

DOI: 10.1016/j.addma.2020.101282
