Development of Functional Fish Gelatin-Based Biomaterial Films Reinforced with Astaxanthin-Rich Oil Extracted from Penaeus Monodon Byproducts via Green NADES-Ultrasonication

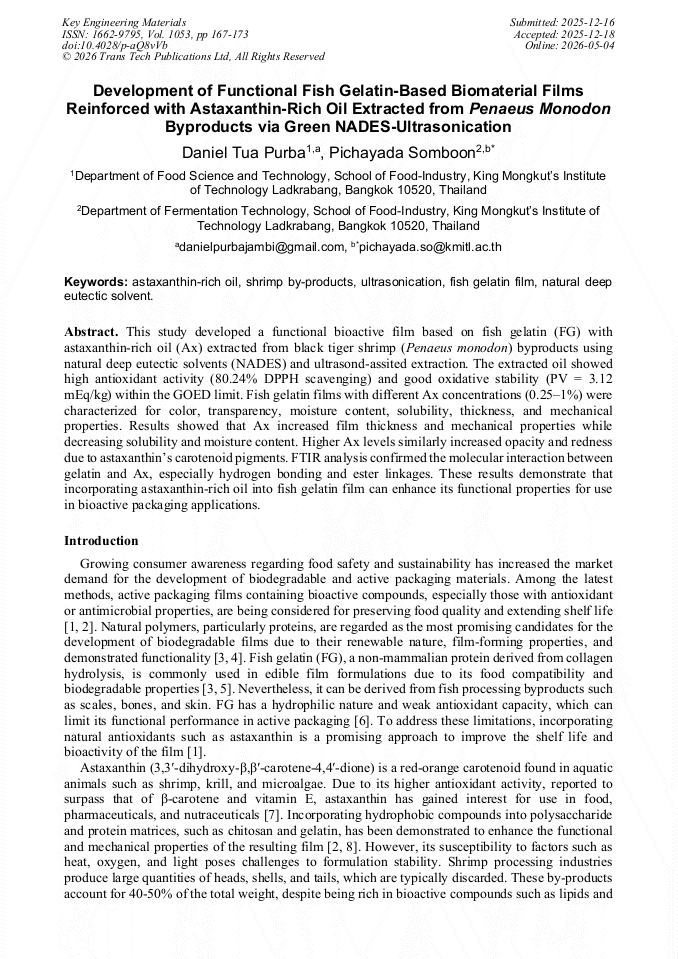

Article Preview

Abstract:

This study developed a functional bioactive film based on fish gelatin (FG) with astaxanthin-rich oil (Ax) extracted from black tiger shrimp (Penaeus monodon) byproducts using natural deep eutectic solvents (NADES) and ultrasond-assited extraction. The extracted oil showed high antioxidant activity (80.24% DPPH scavenging) and good oxidative stability (PV = 3.12 mEq/kg) within the GOED limit. Fish gelatin films with different Ax concentrations (0.25–1%) were characterized for color, transparency, moisture content, solubility, thickness, and mechanical properties. Results showed that Ax increased film thickness and mechanical properties while decreasing solubility and moisture content. Higher Ax levels similarly increased opacity and redness due to astaxanthin’s carotenoid pigments. FTIR analysis confirmed the molecular interaction between gelatin and Ax, especially hydrogen bonding and ester linkages. These results demonstrate that incorporating astaxanthin-rich oil into fish gelatin film can enhance its functional properties for use in bioactive packaging applications.

You might also be interested in these eBooks
Sustainable and Energy Materials, Engineering Materials and their Characteristics View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1053)

Pages:

167-173

DOI:

https://doi.org/10.4028/p-aQ8vVb

Citation:

Cite this paper

Online since:

May 2026

Authors:

Daniel Tua Purba, Pichayada Somboon*

Keywords:

Astaxanthin-Rich Oil, Fish Gelatin Film, Natural Deep Eutectic Solvent, Shrimp By-Products, Ultrasonication

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] L. Yang et al., "Enhanced mechanical properties and antibacterial activities of chitosan films through incorporating zein-gallic acid conjugate stabilized cinnamon essential oil Pickering emulsion," International Journal of Biological Macromolecules, vol. 258, p.128933, 2024.

DOI: 10.1016/j.ijbiomac.2023.128933

Google Scholar

[2] N. Thungphotrakul and P. Prapainainar, "Development of polyvinyl alcohol/carboxymethylcellulose-based bio-packaging film with citric acid crosslinking and clove essential oil encapsulated chitosan nanoparticle pickering emulsion," International Journal of Biological Macromolecules, vol. 282, p.137223, 2024.

DOI: 10.1016/j.ijbiomac.2024.137223

Google Scholar

[3] C. Liu et al., "The impacts of different modification techniques on the gel properties and structural characteristics of fish gelatin," Food Hydrocolloids, vol. 158, 2025.

DOI: 10.1016/j.foodhyd.2024.110536

Google Scholar

[4] R. A. Santoso and Y. Atma, "Physical properties of edible films from pangasius catfish bone gelatin-breadfruits strach with different formulations," Indonesian Food Science and Technology Journal, vol. 3, no. 2, pp.42-47, 2020.

DOI: 10.22437/ifstj.v3i2.9498

Google Scholar

[5] S. Bavisetty et al., "Ultrasonication on Collagen Yield, Physiochemical and Structural Properties from Seabass (Lates calcarifer) Scales as Affected by Pretreatment and Extraction Conditions," Nat ural and Life Sci ences Communications, vol. 23, no. 1, p. e20240, 2024.

Google Scholar

[6] Q. Ying et al., "Ultrasound-assisted phosphorylation on the functional and structural properties of fish gelatin," Food Hydrocolloids, vol. 166, 2025.

DOI: 10.1016/j.foodhyd.2025.111364

Google Scholar

[7] N. Nemani, S. M. Dehnavi, and G. Pazuki, "Extraction and separation of astaxanthin with the help of pre-treatment of Haematococcus pluvialis microalgae biomass using aqueous two-phase systems based on deep eutectic solvents," Sci Rep, vol. 14, no. 1, p.5420, Mar 5 2024.

DOI: 10.1038/s41598-024-55630-4

Google Scholar

[8] P. Inthamat, A. Boonsiriwit, Y. S. Lee, and U. Siripatrawan, "Effects of genipin as natural crosslinker on barrier and mechanical properties of chitosan‐astaxanthin film," Journal of Food Processing and Preservation, vol. 46, no. 8, p. e15707, 2022.

DOI: 10.1111/jfpp.15707

Google Scholar

[9] S. Gulzar, N. Raju, R. Chandragiri Nagarajarao, and S. Benjakul, "Oil and pigments from shrimp processing by-products: Extraction, composition, bioactivities and its application- A review," Trends in Food Science & Technology, vol. 100, pp.307-319, 2020.

DOI: 10.1016/j.tifs.2020.04.005

Google Scholar

[10] T. Chi Hai, P. Van Man, and L. T. H. Anh, "Microwave-assisted extraction of astaxanthin from shrimp shell by-products (Penaeus monodon) using deep eutectic solvents and evaluation of antioxidant activity," Journal of Food Measurement and Characterization, 2025.

DOI: 10.1007/s11694-025-03292-9

Google Scholar

[11] D. T. Purba, J. Dave, and P. Somboon, "Sustainable oleogel encapsulation of tilapia fish oil using protein-based cryogels: fabrication, characterization, and digestion behavior," Sustainable Food Technology, 2025.

DOI: 10.1039/d5fb00322a

Google Scholar

[12] J. Dave et al., "Sustainable fish oil extraction from catfish visceral biomass: A comparative study between high-shear homogenization and high-frequency ultrasound on wet rendering process," Foods and Raw Materials, vol. 13, no. 1, p.94, 2025.

DOI: 10.21603/2308-4057-2025-1-627

Google Scholar

[13] E. A. Asevedo, B. M. E. das Chagas, S. D. de Oliveira Júnior, and E. S. dos Santos, "Recovery of lipids and carotenoids from Dunaliella salina microalgae using deep eutectic solvents," Algal Research, vol. 69, p.102940, 2023.

DOI: 10.1016/j.algal.2022.102940

Google Scholar

[14] T. Negi et al., "Deep eutectic solvents: Preparation, properties, and food applications," Heliyon, vol. 10, no. 7, p. e28784, Apr 15 2024.

DOI: 10.1016/j.heliyon.2024.e28784

Google Scholar

[15] M. Chaijan and W. Panpipat, "Basic composition, antioxidant activity and nanoemulsion behavior of oil from mantis shrimp (Oratosquilla nepa)," Food Bioscience, vol. 31, 2019.

DOI: 10.1016/j.fbio.2019.100448

Google Scholar

[16] J. Li, J. Yang, J. Zhong, F. Zeng, L. Yang, and X. Qin, "Development of sodium alginate-gelatin-graphene oxide complex film for enhancing antioxidant and ultraviolet-shielding properties," Food Packaging and Shelf Life, vol. 28, 2021.

DOI: 10.1016/j.fpsl.2021.100672

Google Scholar

[17] N. Raju and S. Benjakul, "Use of Beta Cyclodextrin to Remove Cholesterol and Increase Astaxanthin Content in Shrimp Oil," European Journal of Lipid Science and Technology, vol. 122, no. 2, 2019.

DOI: 10.1002/ejlt.201900242

Google Scholar

[18] P. Inthamat, A. Boonsiriwit, Y. S. Lee, and U. Siripatrawan, "Effects of genipin as natural crosslinker on barrier and mechanical properties of chitosan‐astaxanthin film," Journal of Food Processing and Preservation, vol. 46, no. 8, 2021.

DOI: 10.1111/jfpp.15707

Google Scholar

[19] D. T. Purba, A. Nizori, and D. Wulansari, "The Effect of Concentration Areca Seed Extract (Areca Catechu L.) on Physicochemical and Sensory Properties of Pineapple Juice (Ananas Comosus L. Merr) As a Functional Beverages," Indonesian Food Science and Technology Journal, vol. 5, no. 2, pp.49-56, 2022.

DOI: 10.22437/ifstj.v5i2.17303

Google Scholar

[20] K. Łupina, D. Kowalczyk, M. Lis, A. Raszkowska-Kaczor, and E. Drozłowska, "Controlled release of water-soluble astaxanthin from carboxymethyl cellulose/gelatin and octenyl succinic anhydride starch/gelatin blend films," Food Hydrocolloids, vol. 123, 2022.

DOI: 10.1016/j.foodhyd.2021.107179

Google Scholar

[21] J. Wang et al., "Dual-functional intelligent gelatin based packaging film for maintaining and monitoring the shrimp freshness," Food Hydrocolloids, vol. 124, 2022.

DOI: 10.1016/j.foodhyd.2021.107258

Google Scholar

[22] W. Ma et al., "Characterization of gelatin-based edible films incorporated with olive oil," Food Research International, vol. 49, no. 1, pp.572-579, 2012.

DOI: 10.1016/j.foodres.2012.07.037

Google Scholar
