Paper Titles
Mechanical Properties Improving the Surfaces of the Solar Collectors Using PLD with Nona Materials
p.13
Optimization of Surgical Drill Margin Dimension to Reduce Bone Temperature
p.27
Vibration-Based Non-Destructive Inspection Method for Detecting Manufacturing Defects in Drill Bits
p.39
Optimization of Micro-Drilling Parameters for Acoustic Panel Materials Using Taguchi Method
p.45
Susceptibility of 5% Nickel Steel to Stress Corrosion Cracking in Liquid Ammonia
p.59
Performance Evaluation of Magnesia – Chromite Refractory in the Flash Smelting Furnace of a Copper Smelting Industrial Area
p.65
Study on Dominant Roles of Damage Mechanisms of Iron Target during Single-Particle Impingement under Varying Low Impact Angles
p.73
A Novel Graphene-Enhanced Phase Change Material Based Composite Aggregate for Energy Storage Concrete Applications
p.83
Low-Temperature Firing of Clay Tiles Incorporating Waste Glass, Sediment Soil, Volcanic Soil and Local Illite Clay
p.91

Susceptibility of 5% Nickel Steel to Stress Corrosion Cracking in Liquid Ammonia

Article Preview

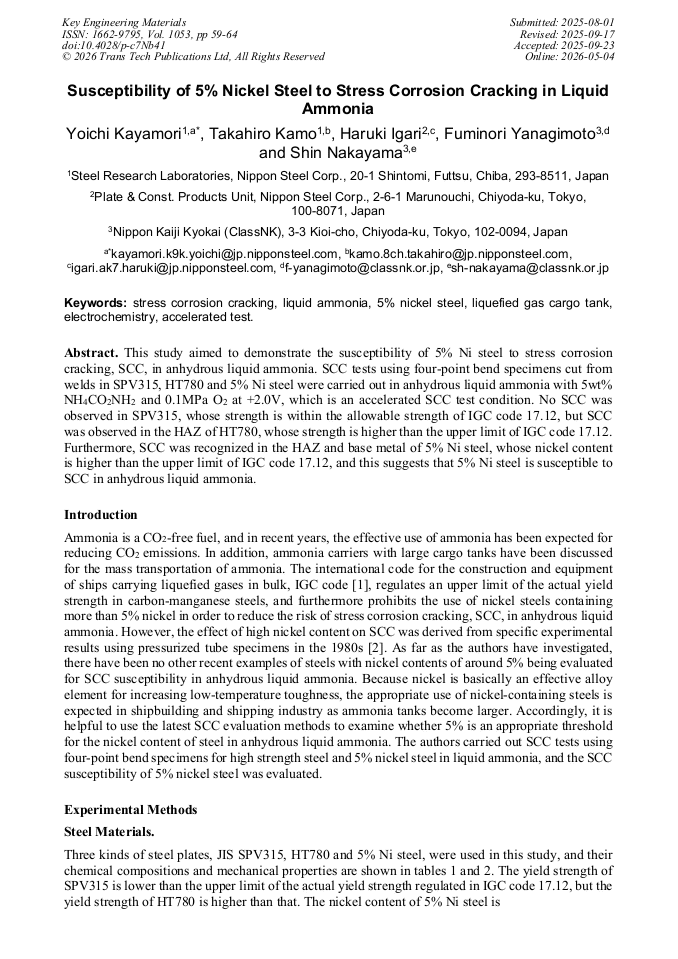

Abstract:

This study aimed to demonstrate the susceptibility of 5% Ni steel to stress corrosion cracking, SCC, in anhydrous liquid ammonia. SCC tests using four-point bend specimens cut from welds in SPV315, HT780 and 5% Ni steel were carried out in anhydrous liquid ammonia with 5wt% NH4CO2NH2 and 0.1MPa O2 at +2.0V, which is an accelerated SCC test condition. No SCC was observed in SPV315, whose strength is within the allowable strength of IGC code 17.12, but SCC was observed in the HAZ of HT780, whose strength is higher than the upper limit of IGC code 17.12. Furthermore, SCC was recognized in the HAZ and base metal of 5% Ni steel, whose nickel content is higher than the upper limit of IGC code 17.12, and this suggests that 5% Ni steel is susceptible to SCC in anhydrous liquid ammonia.

You might also be interested in these eBooks
Sustainable and Energy Materials, Engineering Materials and their Characteristics View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1053)

Pages:

59-64

DOI:

https://doi.org/10.4028/p-c7Nb41

Citation:

Cite this paper

Online since:

May 2026

Authors:

Yoichi Kayamori*, Takahiro Kamo, Haruki Igari, Fuminori Yanagimoto, Shin Nakayama

Keywords:

5% Nickel Steel, Accelerated Test, Electrochemistry, Liquefied Gas Cargo Tank, Liquid Ammonia, Stress Corrosion Cracking

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] International Maritime Organization, International code for the construction and equipment of ships carrying liquefied gases in bulk, 2016.

DOI: 10.62454/ka104e

Google Scholar

[2] L. Lunde, Stress Corrosion Cracking of Steels in Ammonia: Specially Vapor-Phase Cracking, Ammonia Plant Safety, 24 (1984) 154-166.

Google Scholar

[3] Y. Nakai, Y. Uesugi and H. Kurahashi, Development of Laboratory Test Method for Stress Corrosion Cracking of Steels in Liquid Ammonia, Tetsu-to-Hagane, 67, 14 (1981) 2226-2233.

DOI: 10.2355/tetsutohagane1955.67.14_2226

Google Scholar

[4] A. Murakami, T. Nishigaki, K. Sugizaki, K. Okubo, M. Uekado, A. Takashima and K. Michiba, Study on Cargo Tank System for Multi-Purpose LPG Carrier, Kawasaki Technical Review, 118, 7 (1993) 65-72.

Google Scholar

[5] H. Usuki, Y. Fujishiro, T. Kamo, Y. Kayamori. T. Nishimura and M. Nomi, Effect of Test Potential on Stress Corrosion Cracking on Four-Point Bend Testing in Liquid Ammonia, Proc. of the 71st Japan Conference on Materials and Environments, Okinawa, B-103 (2024) 119-120.

Google Scholar

[6] NACE International, Standard Test Method Four-Point Bend Testing of Materials for Oil and Gas Applications, TM0316, 2016.

Google Scholar
