A Novel Graphene-Enhanced Phase Change Material Based Composite Aggregate for Energy Storage Concrete Applications

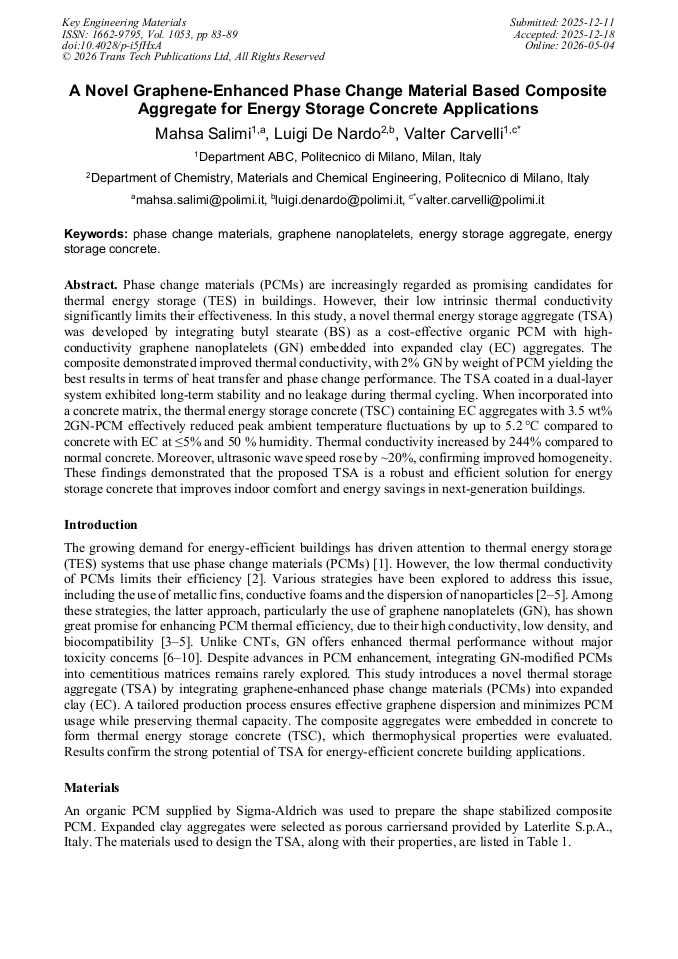

Article Preview

Abstract:

Phase change materials (PCMs) are increasingly regarded as promising candidates for thermal energy storage (TES) in buildings. However, their low intrinsic thermal conductivity significantly limits their effectiveness. In this study, a novel thermal energy storage aggregate (TSA) was developed by integrating butyl stearate (BS) as a cost-effective organic PCM with high-conductivity graphene nanoplatelets (GN) embedded into expanded clay (EC) aggregates. The composite demonstrated improved thermal conductivity, with 2% GN by weight of PCM yielding the best results in terms of heat transfer and phase change performance. The TSA coated in a dual-layer system exhibited long-term stability and no leakage during thermal cycling. When incorporated into a concrete matrix, the thermal energy storage concrete (TSC) containing EC aggregates with 3.5 wt% 2GN-PCM effectively reduced peak ambient temperature fluctuations by up to 5.2 °C compared to concrete with EC at ≤5% and 50 % humidity. Thermal conductivity increased by 244% compared to normal concrete. Moreover, ultrasonic wave speed rose by ~20%, confirming improved homogeneity. These findings demonstrated that the proposed TSA is a robust and efficient solution for energy storage concrete that improves indoor comfort and energy savings in next-generation buildings.

You might also be interested in these eBooks
Sustainable and Energy Materials, Engineering Materials and their Characteristics View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1053)

Pages:

83-89

DOI:

https://doi.org/10.4028/p-i5fHxA

Citation:

Cite this paper

Online since:

May 2026

Authors:

Mahsa Salimi, Luigi de Nardo, Valter Carvelli*

Keywords:

Energy Storage Aggregate, Energy Storage Concrete, Graphene Nanoplatelets, Phase Change Materials

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M. Salimi, L. De Nardo, V. Carvelli, Science and Technology for the Built Environment Vol. 29 (2023), p.1050–1071.

Google Scholar

[2] J.M. Khodadadi, S.F. Hosseinizadeh, International Communications in Heat and Mass Transfer Vol. 34 (2007), p.534–543.

Google Scholar

[3] S.U.S. Choi, ASME Journal of Heat Transfer, United States (1995), p.99–105.

Google Scholar

[4] J.C. Maxwell, A treatise on electricity and magnetism, Unabridged 3rd ed Clarendon Press; Oxford University Press, Oxford : New York, 1998.

Google Scholar

[5] N. Radhakrishnan, S. Thomas, C.B. Sobhan, Journal of Thermal Analysis and Calorimetry Vol. 140 (2020), p.2471–2484.

Google Scholar

[6] Y. Liu, Y. Zhao, B. Sun, C. Chen, Acc. Chem. Res Vol. 46 (2013), p.702–713.

Google Scholar

[7] X. Zhao, R. Liu, Environment International Vol. 40 (2012), p.244–255.

Google Scholar

[8] W.-W. Liu, S.-P. Chai, A.R. Mohamed, U. Hashim, Journal of Industrial and Engineering Chemistry Vol. 20 (2014), p.1171–1185.

Google Scholar

[9] Z. Han, A. Fina, Progress in Polymer Science Vol. 36 (2011), p.914–944.

Google Scholar

[10] S. Chen, Q. Wu, C. Mishra, J. Kang, H. Zhang, K. Cho, W. Cai, A.A. Balandin, R.S. Ruoff, Nature Mater Vol. 11 (2012), p.203–207.

DOI: 10.1038/nmat3207

Google Scholar

[11] S. Zhang, J.Y. Wu, C. Tse, J. Niu, Solar Energy Materials and Solar Cells Vol. 96 (2012), p.124–130.

Google Scholar

[12] W. Jin, L. Jiang, L. Chen, Y. Gu, M. Guo, L. Han, X. Ben, H. Yuan, Z. Lin, Construction and Building Materials Vol. 301 (2021) 124102.

Google Scholar

[13] S. Ramakrishnan, X. Wang, J. Sanjayan, Energy and Buildings Vol. 169 (2018), p.206–215.

Google Scholar

[14] M. Salimi, L.D. Nardo, V. Carvelli, Energy and Buildings Vol. 345 (2025) 116099.

Google Scholar
