Fabrication of Carbonate Apatite Form and its Basic Properties

Ishikawa Kunio; Koh-ichi Udoh; Hanae Wakae; Melvin L. Munar; Shigeki Matsuya; Masaharu Nakagawa; Akihiko Nakajima

doi:10.4028/www.scientific.net/KEM.284-286.373

Paper Titles

Surface Modification of Calcium Hydroxyfluor Carbonate Apatites by Bisphosphonates
p.357

Confined Compression of Bone Substitute Granules
p.361

Influence of Powder Particle Size of Slurries on Mechanical Properties of Porous Hydroxyapatite Ceramics
p.365

Preparation of Biodegradable Porous Calcium Metaphosphate Granules as Bone Filler by Starch Consolidation
p.369

Fabrication of Carbonate Apatite Form and its Basic Properties
p.373

In Vitro and In Vivo Behavior of Coral Treated by Hydrogen Peroxide, Supercritical Ethanol, or Heat
p.377

Improvement of Bioactivity of Hydroxyapatite Ceramics by Adding Glass
p.381

Adsorption Isotherm of Sodium Ampicillin onto Dense and Porous Hydroxyapatite
p.387

SEM/EDX and FTIR Characterization of a Dental Resin Cement with Antibacterial Agents Incorporated
p.391

HomeKey Engineering MaterialsKey Engineering Materials Vols. 284-286Fabrication of Carbonate Apatite Form and its...

Fabrication of Carbonate Apatite Form and its Basic Properties

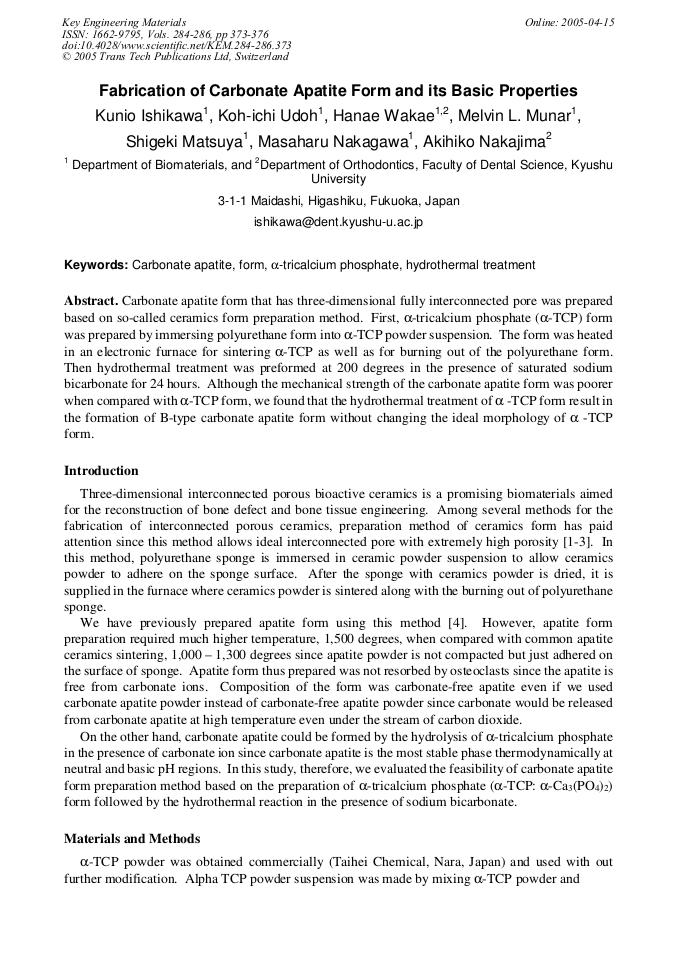

Abstract:

Carbonate apatite form that has three-dimensional fully interconnected pore was prepared based on so-called ceramics form preparation method. First, a-tricalcium phosphate (a-TCP) form was prepared by immersing polyurethane form into a-TCP powder suspension. The form was heated in an electronic furnace for sintering a-TCP as well as for burning out of the polyurethane form. Then hydrothermal treatment was preformed at 200 degrees in the presence of saturated sodium bicarbonate for 24 hours. Although the mechanical strength of the carbonate apatite form was poorer when compared with a-TCP form, we found that the hydrothermal treatment of a -TCP form result in the formation of B-type carbonate apatite form without changing the ideal morphology of a -TCP form.
