For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
In Vitro Bioactivity of Composite of Nanophase Titania/Bioactive Glass-Ceramic in Simulated Body Fluid
p.171
High-Pressure and -Temperature Sintering of Nanosized Hydroxyapatite Powders
p.175
Preparation of Bioactive Nanoparticles in the System CaO-P2O5-SiO2 Using Microemulsions
p.179
Electrophoretic Deposition of Hydroxyapatite Nano Coating on Etched Titanium Surface
p.183
Nanostructure Properties of Hydroxyapatite Nanobelts Prepared by Oil-in-Water Emulsion
p.187
Preparation of Hydroxyapatite-Fibroin Nanocomposites
p.191
In Vitro and In Vivo Biocompatibility of Nano-Hydroxyapatite/Collagen Composites
p.195
Manufacturing Porous Blocks of Nano-Composite of Needle-Like Hydroxyapatite Crystallites and Chitin for Tissue Engineering
p.199
Preparation of Nano-Hydroxyapatite/Poly(D,L-Lactide) Composite and Its Degradation in Femora of Rabbits
p.203

Nanostructure Properties of Hydroxyapatite Nanobelts Prepared by Oil-in-Water Emulsion

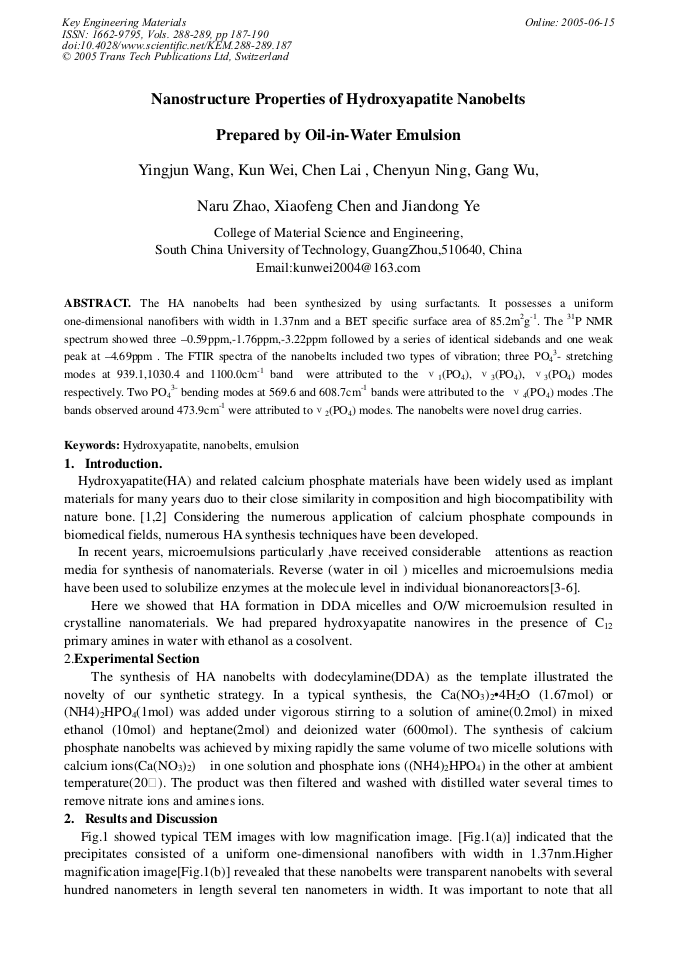

Article Preview

Abstract:

The HA nanobelts had been synthesized by using surfactants. It possesses a uniform one-dimensional nanofibers with width in 1.37nm and a BET specific surface area of 85.2m2g-1. The 31P NMR spectrum showed three –0.59ppm,-1.76ppm,-3.22ppm followed by a series of identical sidebands and one weak peak at –4.69ppm . The FTIR spectra of the nanobelts included two types of vibration; three PO4 3- stretching modes at 939.1,1030.4 and 1100.0cm-1 band were attributed to the ν1(PO4), ν3(PO4), ν3(PO4) modes respectively. Two PO4 3- bending modes at 569.6 and 608.7cm-1 bands were attributed to the ν4(PO4) modes .The bands observed around 473.9cm-1 were attributed toν2(PO4) modes. The nanobelts were novel drug carries.

You might also be interested in these eBooks
Advanced Biomaterials VI View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 288-289)

Pages:

187-190

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.288-289.187

Citation:

Cite this paper

Online since:

June 2005

Authors:

Ying Jun Wang, Kun Wei, Chen Lai, Chen Yun Ning, Gang Wu, Na Ru Zhao, Xiao Feng Chen, Jian Dong Ye

Keywords:

Emulsion, Hydroxyapatite (HAP), Nanobelts

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Q.Z. Chen C.T. Wang W.W. Lu,K.M.C. Chung J.C.Y. leong,K.D.K. Luk, Biomaterials. Vol: 254(2004),P. 243.

Google Scholar

[2] J.B. Thompson J.H. Kindt,B. Drake H.G. Hansma D.E. Morse P.K. Hansma, Nature. Vol: 414(2001),P. 773.

DOI: 10.1038/414773a

Google Scholar

[3] K. Sonoda,T. Furuzono,D. Walsh,K. Stato,J. Tanaka. Solid state. Ion. Vol: 151 (2002),P. 321.

Google Scholar

[4] T. Hiral,M. Hodono,I. Komasawa. Langmuir. Vol: 16 (2000),P. 955.

Google Scholar

[5] X . Wen, W. Zhang. S. Yang. Z.R. Dai, Z.L. Wang. Nano. Lett. Vol: 2(2002),P. 1397.

Google Scholar

[6] P. Chattopadhyay, R.B. Gupta. Ind. Eng. Chem. Res. Vol: 42(2003),P. 465.

Google Scholar

[7] W. Zhang S.S. Liao F.Z. Cui. Chem. Mater. Vol: 15 (2003),P. 3221.

Google Scholar

[8] M.H. Cao Y.H. Wang C.X. Guo Y.J. Qi,C.G. Hu. Langmuir. Vol: 20(2004),P. 4784.

Google Scholar

[9] C.B. Boechat J.G. Eon A.M. Rossi C.A. de C. Perez R.A. de S.S. Gil. Phys. Chem. Chem. Phys. Vol: 2 (2000),P. 4225.

Google Scholar

[10] Y.J. Zhang L.H. Zhou,D. Li,N.C. Xue X.D. Xu,J.H. Li. Chem. Phys. Lett. Vol: 376 (2003),P. 493.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
