Processing and Electrical Properties of KNbO3 Ferroelectric Dense Ceramics Added with Small Amount of Bi2O3 and MnCO3

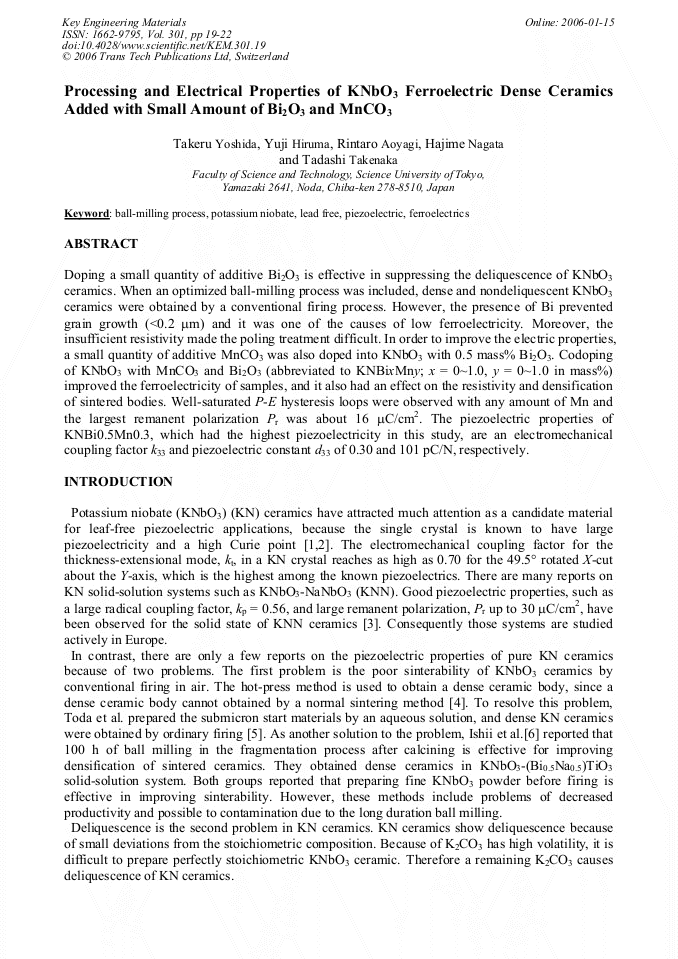

Article Preview

Abstract:

Doping a small quantity of additive Bi2O3 is effective in suppressing the deliquescence of KNbO3 ceramics. When an optimized ball-milling process was included, dense and nondeliquescent KNbO3 ceramics were obtained by a conventional firing process. However, the presence of Bi prevented grain growth (<0.2 μm) and it was one of the causes of low ferroelectricity. Moreover, the insufficient resistivity made the poling treatment difficult. In order to improve the electric properties, a small quantity of additive MnCO3 was also doped into KNbO3 with 0.5 mass% Bi2O3. Codoping of KNbO3 with MnCO3 and Bi2O3 (abbreviated to KNBixMny; x = 0~1.0, y = 0~1.0 in mass%) improved the ferroelectricity of samples, and it also had an effect on the resistivity and densification of sintered bodies. Well-saturated P-E hysteresis loops were observed with any amount of Mn and the largest remanent polarization Pr was about 16 μC/cm2. The piezoelectric properties of KNBi0.5Mn0.3, which had the highest piezoelectricity in this study, are an electromechanical coupling factor k33 and piezoelectric constant d33 of 0.30 and 101 pC/N, respectively.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

19-22

Citation:

Online since:

January 2006

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2006 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] K. Nakamura, T. Tokiwa, and Y. Kawamura, J. Appl. Phys. 91 (2002) p.9272.

Google Scholar

[2] S. Wada, A. Seike and T. Tsurumi, Jpn. J. Appl. Phys. 40 (2001) p.5690.

Google Scholar

[3] L. Egerton and D. M. Dillon, J. Am. Ceram. Soc. 42 (1959) p.438.

Google Scholar

[4] R. E. Jaeger and L. Egerton, J. Am. Ceram. Soc. 45 (1962) p.209.

Google Scholar

[5] K. Toda, S. Tokuoka, N. Ohtake, K. Uematsu and M. Sato, Trans. MRS-J 28 (2003) p.353.

Google Scholar

[6] H. Ishii, H. Nagata and T. Takenaka, Jpn. J. Appl. Phys. 40 (2001) p.5660.

Google Scholar

[7] K. Tanaka, K. Minai, K. Wakino and I. Uei, Zairyou 338 (1986) p.54 (in Japanese).

Google Scholar

[8] K. Tanaka, I. Inada, K. Wakino and I. Uei, Zairyou 422 (1988) p.1319 (in Japanese).

Google Scholar

[9] S. Tashiro, H. Nagamatsu and K. Nagata, Jpn. J. Appl. Phys. 41 (2002) p.7113.

Google Scholar

[10] S. Tashiro and K. Nagata, Jpn. J. Appl. Phys. 43 (2004) p.6711.

Google Scholar

[11] K. Okazaki and K. Nagata, J. Am. Ceram. 56 (1973).

Google Scholar
