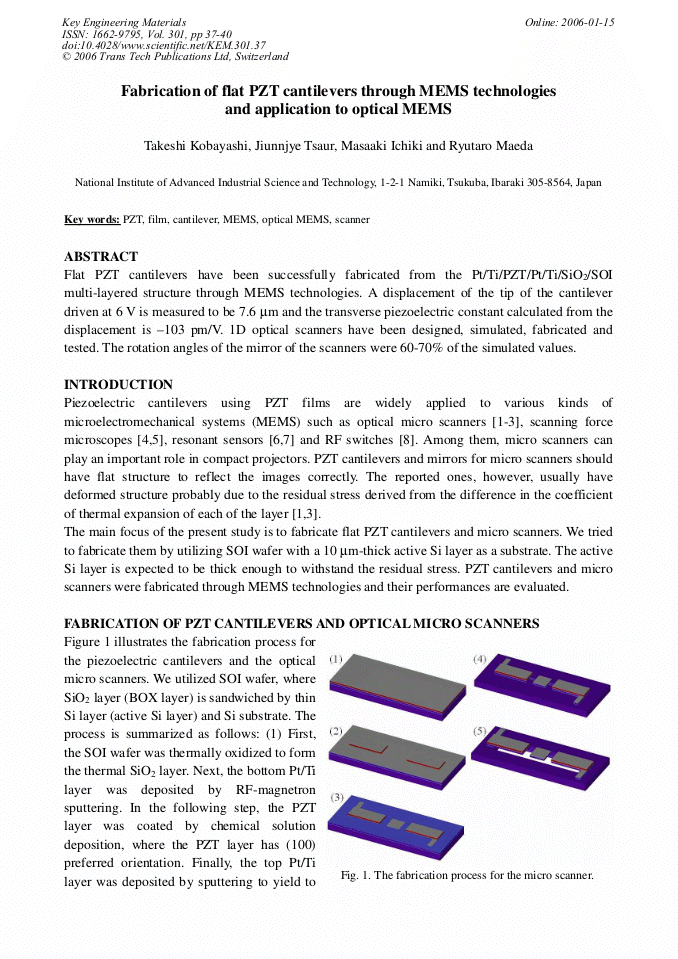

Fabrication of Flat PZT Cantilevers through MEMS Technologies and Application to Optical MEMS

Abstract:

Flat PZT cantilevers have been successfully fabricated from the Pt/Ti/PZT/Pt/Ti/SiO2/SOI multi-layered structure through MEMS technologies. A displacement of the tip of the cantilever driven at 6 V is measured to be 7.6 μm and the transverse piezoelectric constant calculated from the displacement is –103 pm/V. 1D optical scanners have been designed, simulated, fabricated and tested. The rotation angles of the mirror of the scanners were 60-70% of the simulated values.
