Analyzed by Kelvin Force Microscopy of PbZr_0.3Ti_0.7O₃ Thin Films Grown on La_0.5Sr_0.5CoO₃ or LaMnO₃ Bottom Electrodes

Abstract:

We have investigated structural and electrical properties of PbZr0.3Ti0.7O3 (PZT) thin films deposited by pulsed laser deposition methods. In order to improve the ferroelectric properties of PZT thin films, we have controlled grain size or surface morphology by changing bottom electrode or deposition time. PZT thin films have been deposited on La0.5Sr0.5CoO3 (LSCO) or LaMnO3 (LMO) bottom electrodes with LaAlO3 substrates during different deposition times. X-ray diffraction data have shown that all the PZT films and bottom electrodes are highly oriented with their c-axes normal to the substrates. The thickness of each film is determined by field-emission scanning electron microscope. We have also observed alternation of grain sizes (80~180 nm) by using atomic force microscopy mode and surface potential distribution and retention behavior of ferroelectric domains by using Kelvin force microscopy mode. A PZT/LMO structure has shown superior ferroelectric and retention properties to a PZT/LSCO structure.

You might also be interested in these eBooks

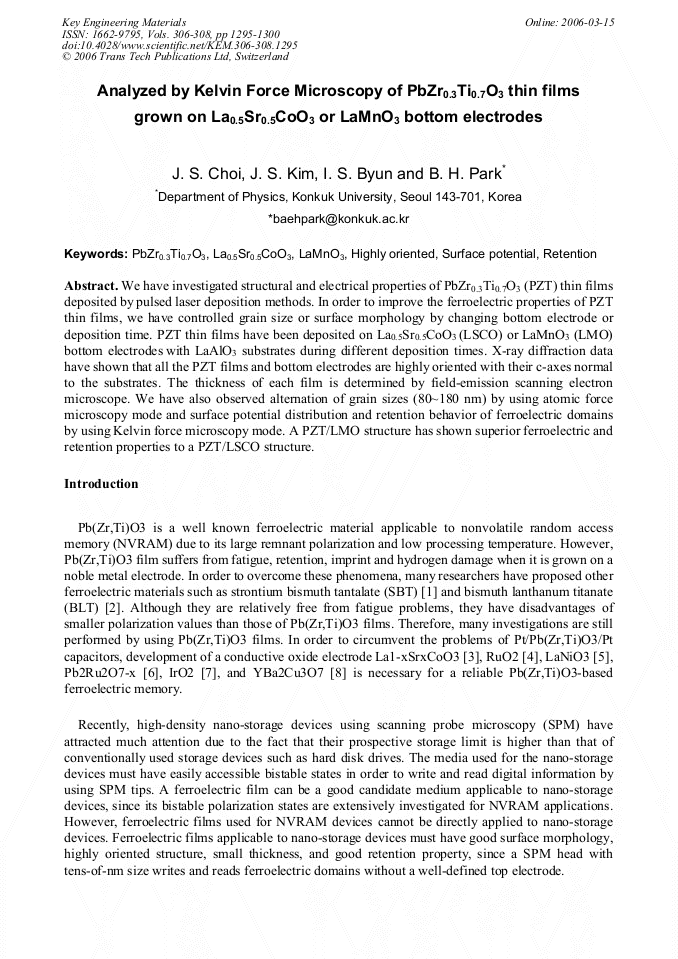

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 306-308)

Pages:

1295-1300

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.306-308.1295

Citation:

Cite this paper

Online since:

March 2006

Authors:

J.S. Choi, J.S. Kim, I.S. Byun, B.H. Park

Keywords:

Highly Oriented, La_0.5Sr_0.5CoO₃, PbZr_0.3Ti_0.7O₃, Retention, Surface Potential

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C.A. Araujo, J.D. Cuchiaro, L. D. McMillan, M. C. Scott and J. F. Scott: Nature Vol. 374 (1995), p.627.

Google Scholar

[2] B. H. Park, B. S. Kang, S. D. Bu, T. W. Noh, J. Lee and W. Jo: Nature Vol. 401 (1999), p.682.

Google Scholar

[3] J. Yin, T. Zhu, Z. G. Liu and T. Yu: Appl. Phys. Lett. Vol. 75 (1999), P. 3698.

Google Scholar

[4] H. N. Al-Shareef, K. R. Bellur, A. I. Kingon and O. Auciello: Appl. Phys. Lett. Vol. 66 (1995), p.239.

Google Scholar

[5] J. W. Hong, W. Jo, D. C. Kim, S. M. Cho, H. J. Nam, H. M. Lee and J. U. Bu: Appl. Phys. Lett. Vol. 75 (1999), p.3183.

Google Scholar

[6] Sung-Nam Ryoo, Soon-Gil Yoon and Seung-Hyun Kim: Appl. Phys. Lett. Vol. 83 (2003), p.2880.

Google Scholar

[7] Dongmin Jang, Jinhee Heo, Insook Yi and Ilsub Chung: Jpn. J. Appl. Phys. Vol. 41 (2002), p.6739.

Google Scholar

[8] R. Ramesh, W. K. Chan, B. Wilkens, H. Gilchrist, T. Sands, J. M. Tarascon and V. G. Keramidas, D. K. Fork, J. Lee and A. Safari: Appl. Phys. Lett. Vol. 61 (1992), p.1537.

DOI: 10.1063/1.107488

Google Scholar
