Relation Between Grain Boundary and Electrical Degradation of ZnO Varistors

Abstract:

The effects of the electrical degradation characteristics and microstructure of Sb2O3-doped ZnO varistors were investigated by optical microscopy, X-ray diffraction (XRD) analysis, and voltage-current (V-I) characteristics analysis. The nonlinearity index α of the V-I characteristics of the Bi-Mn-Co-Sb2O3-doped ZnO varistors decreased with increasing Sb2O3 content after electrical degradation. The twin crystal of ZnO was formed by doping with Sb2O3. The number of twin crystals, of which two c-axes are perpendicular to the twin plane, increased and the number of twin crystals, of which c-axes are parallel to the twin plane, decreased with increasing amount of Sb2O3 doped. It is suggested that electrical degradation is affected by the combination of the orientation of ZnO grains containing twin planes and a double Schottky barrier may not be formed in the twin plane.

You might also be interested in these eBooks

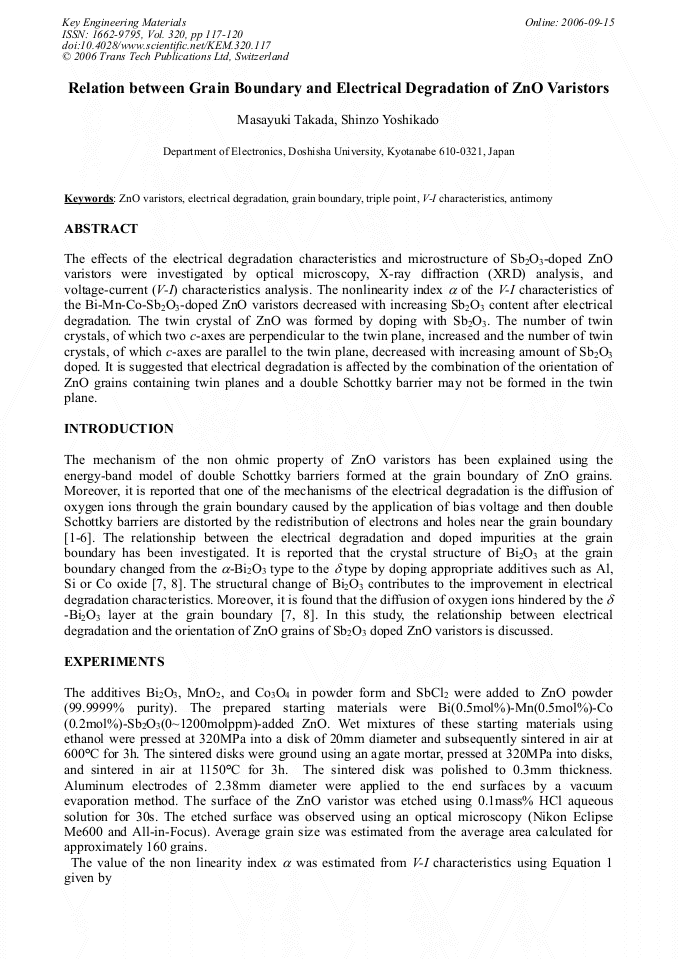

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 320)

Pages:

117-120

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.320.117

Citation:

Cite this paper

Online since:

September 2006

Authors:

Masayuki Takada, Shinzo Yoshikado

Keywords:

Antimony, Electrical Degradation, Grain Boundary, I-V Characteristics, Triple Point, ZnO Varistor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Eda, J. Appl. Phys., 49, (1978), p.2964.

Google Scholar

[2] G. D. Mahan, J. Appl. Phys., 54 (1983), p.3825.

Google Scholar

[3] A. Tanigawa, M. Hirota, T. Sakaguchi, and S. Yoshikado, T. IEE Japan, 118-A (1998), p.169.

Google Scholar

[4] T. Ishikawa and S. Yoshikado, Trans. IEE Japan, 121-A (2001), p.554 (in Japanese).

Google Scholar

[5] Y. Satoi and S. Yoshikado, IEEJ Trans. FM, 123-A (2003), p.140 (in Japanese).

Google Scholar

[6] Y. Satoi, H. Hirai, H. Yoshino, and S. Yoshikado, IEEJ Trans. FM, 124-A (2004), p.189 (in Japanese).

Google Scholar

[7] Y. Satoi, H. Hirai, H. Yoshino, and S. Yoshikado, Key Engineering Materials, 269 (2004), p.83.

Google Scholar

[8] M. Takada, H. Yoshino, J. Morioka and S. Yoshikado, Key Engineering Materials, 301 (2005), p.281.

Google Scholar

[9] A. Iga, Journal of the Japan Society of Powder and Powder Metallurgy, 44 (1997), p.1069.

Google Scholar

[10] A. Iga, M. Ito, and H. Okinaka, Journal of the Japan Society of Powder and Powder Metallurgy, 41 (1993), p.454. e-mail: syoshika@mail. doshisha. ac. jp, fax: +81774-65-6801.

Google Scholar
