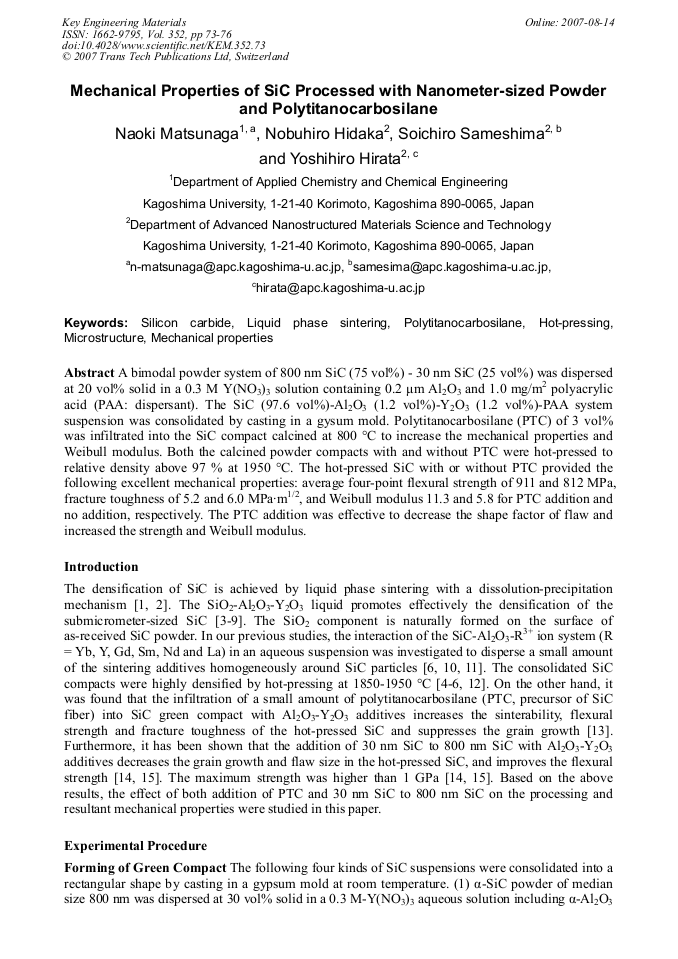

Mechanical Properties of SiC Processed with Nanometer-Sized Powder and Polytitanocarbosilane

Abstract:

A bimodal powder system of 800 nm SiC (75 vol%) - 30 nm SiC (25 vol%) was dispersed at 20 vol% solid in a 0.3 M Y(NO3)3 solution containing 0.2 μm Al2O3 and 1.0 mg/m2 polyacrylic acid (PAA: dispersant). The SiC (97.6 vol%)-Al2O3 (1.2 vol%)-Y2O3 (1.2 vol%)-PAA system suspension was consolidated by casting in a gysum mold. Polytitanocarbosilane (PTC) of 3 vol% was infiltrated into the SiC compact calcined at 800 °C to increase the mechanical properties and Weibull modulus. Both the calcined powder compacts with and without PTC were hot-pressed to relative density above 97 % at 1950 °C. The hot-pressed SiC with or without PTC provided the following excellent mechanical properties: average four-point flexural strength of 911 and 812 MPa, fracture toughness of 5.2 and 6.0 MPa·m1/2, and Weibull modulus 11.3 and 5.8 for PTC addition and no addition, respectively. The PTC addition was effective to decrease the shape factor of flaw and increased the strength and Weibull modulus.

• Periodical: Key Engineering Materials (Volume 352)
• Pages: 73-76
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.352.73
• Online since: August 2007
• Authors: Naoki Matsunaga, Nobuhiro Hidaka, Soichiro Sameshima, Yoshihiro Hirata
• Keywords: Hot-Pressing, Liquid Phase Sintering (LPS), Mechanical Property, Microstructure, Polytitanocarbosilane, Silicon Carbide (SiC)

References

[1] R.A. Alliegro, L.B. Coffin and J.R. Tinklepaugh: J. Am. Ceram. Soc., Vol. 39 (1956), pp.386-389.

[2] F.F. Lange: J. Mate. Sci., Vol. 10 (1975), pp.314-320.

[3] X.H. Wang and Y. Hirata: J. Ceram. Soc. Japan, Vol. 112 (2004), pp.22-28.

[4] N. Hidaka and Y. Hirata: Ceram. Trans., Vol. 152 (2004), pp.109-118.

[5] S. Tabata and Y. Hirata: Ceram. Trans., Vol. 152 (2004), pp.119-128.

[6] N. Hidaka, Y. Hirata and S. Sameshima: J. Ceram. Proc. Res., Vol. 3 (2002), pp.271-277.

[7] L.M. Wang and W.C. Wei: J. Ceram. Soc. Japan, Vol. 103 (1995), pp.434-443.

[8] S.K. Lee and C.H. Kim: J. Am. Ceram. Soc., Vol. 77 (1994), pp.1655-1658.

[9] M.A. Mulla and V.D. Krstic: Am. Ceram. Soc. Bull., Vol. 70 (1991), pp.439-443.

[10] Y. Hirata and W.H. Shih, Advances in Science and Technology 14, Proceedings of 9 th CIMTEC - World Ceramics Congress, Ceramics : Getting into the 2000's-Part B, 1999, edited by P. Vincenzini, Techna Srl., Faenza, pp.637-644.

[11] S. Tabata, Y. Hirata, S. Sameshima, N. Matsunaga and K. Ijichi: J. Ceram. Soc. Japan, Vol. 114 (2006), pp.239-244.

[12] N. Hidaka, Y. Hirata, X.H. Wang and S. Tabata: J. Ceram. Soc. Japan, Vol. 113 (2005), pp.143-148.

[13] N. Hidaka, Y. Hirata, S. Sameshima and H. Sueyoshi: J. Ceram. Processing Research, Vol. 5 (2004), pp.331-336.

[14] N. Hidaka and Y. Hirata: J. Ceram. Soc. Japan, Vol. 113 (2005), pp.446-472.

[15] N. Hidaka and Y. Hirata: Proceedings of 6 th Pacific Rim Conference on Ceramic and Glass Technology - Pac Rim 6 (CDR), The American Ceramic Society (2006).

[16] E.M. Levin, C.R. Robbins and H.F. McMurdie: Phase Diagrams for Ceramists, 1969 Supplement, edited by M. K. Reser. The Am. Ceram. Soc., Columbus, OH, (1969), p.165.

[17] R.A. Swalin, Thermodynamics of Solid, pp.148-152, 180-184. John Wiley & Sons, New York, (1972).
