Low Temperature Sintering and Microwave Dielectric Properties of Zinc Titanate Ceramics for LTCC Applications

Abstract:

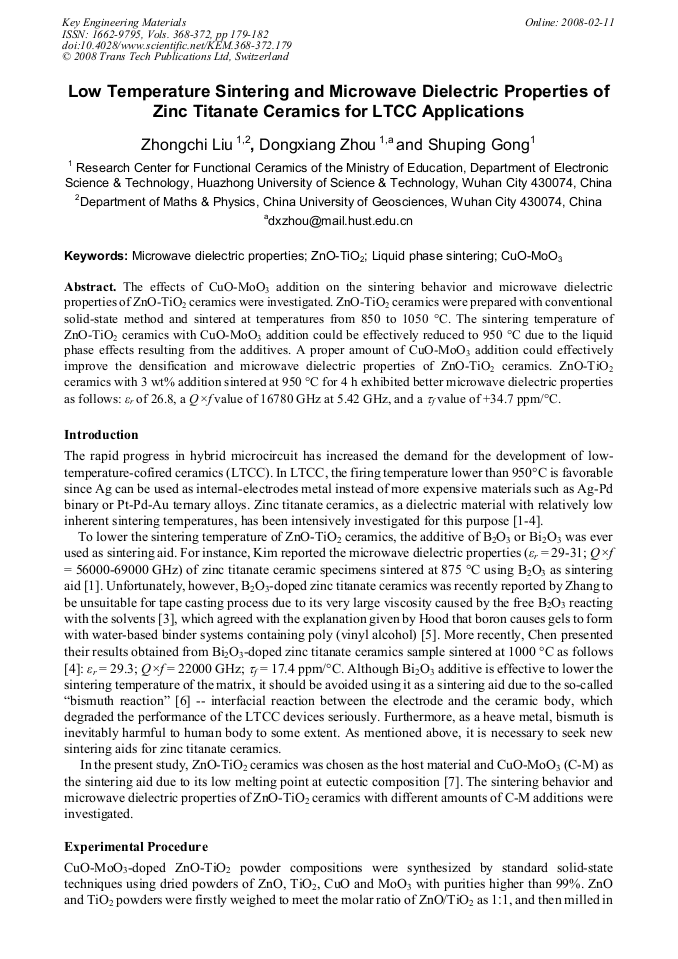

Article Preview

The effects of CuO-MoO3 addition on the sintering behavior and microwave dielectric properties of ZnO-TiO2 ceramics were investigated. ZnO-TiO2 ceramics were prepared with conventional solid-state method and sintered at temperatures from 850 to 1050 °C. The sintering temperature of ZnO-TiO2 ceramics with CuO-MoO3 addition could be effectively reduced to 950 °C due to the liquid phase effects resulting from the additives. A proper amount of CuO-MoO3 addition could effectively improve the densification and microwave dielectric properties of ZnO-TiO2 ceramics. ZnO-TiO2 ceramics with 3 wt% addition sintered at 950 °C for 4 h exhibited better microwave dielectric properties as follows: εr of 26.8, a Q×f value of 16780 GHz at 5.42 GHz, and a τ f value of +34.7 ppm/°C.

Info:

Periodical:

Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong

Pages:

179-182

Citation:

Z. C. Liu et al., "Low Temperature Sintering and Microwave Dielectric Properties of Zinc Titanate Ceramics for LTCC Applications", Key Engineering Materials, Vols. 368-372, pp. 179-182, 2008

Online since:

February 2008

Export:

Price:

$38.00

[1] H.T. Kim, S.H. Kim, J.D. Byun and Y. Kim: J. Am. Ceram. Soc Vol. 82 (1999), p.3043.

[2] H.T. Kim, S. Nahm, J.D. Byun and Y. Kim: J. Am. Ceram. Soc Vol. 82 (1999), p.3467.

[3] Q.L. Zhang, H. Yang, J.L. Zou and H.P. Wang: Mater. Lett Vol. 59 (2005), p.880.

[4] H.C. Chen, M.H. Weng, J.H. Horng, et al.: J. Electro. Mater Vol. 34 (2005), p.119.

[5] C. Hood, J.F. Clifford, T.P. Beales and J. Butitude, U.S. Patent 5, 262, 368. (1993).

[6] S.F. Wang and W. Huebner: J. Am. Ceram. Soc Vol. 75 (1992), p.2339.

[7] K. Nassau and J.W. Shiever: J. Am. Ceram. Soc Vol. 52 (1969), p.36.

[8] B.W. Hakki and P.D. Coleman: IRE Trans. MTT Vol. 8 (1960), p.402.

[9] W. Werisng, in: Electronic Ceramics, edited by B.C.H. Steele. Elsevier Applied Science, London (1991), p.67.
