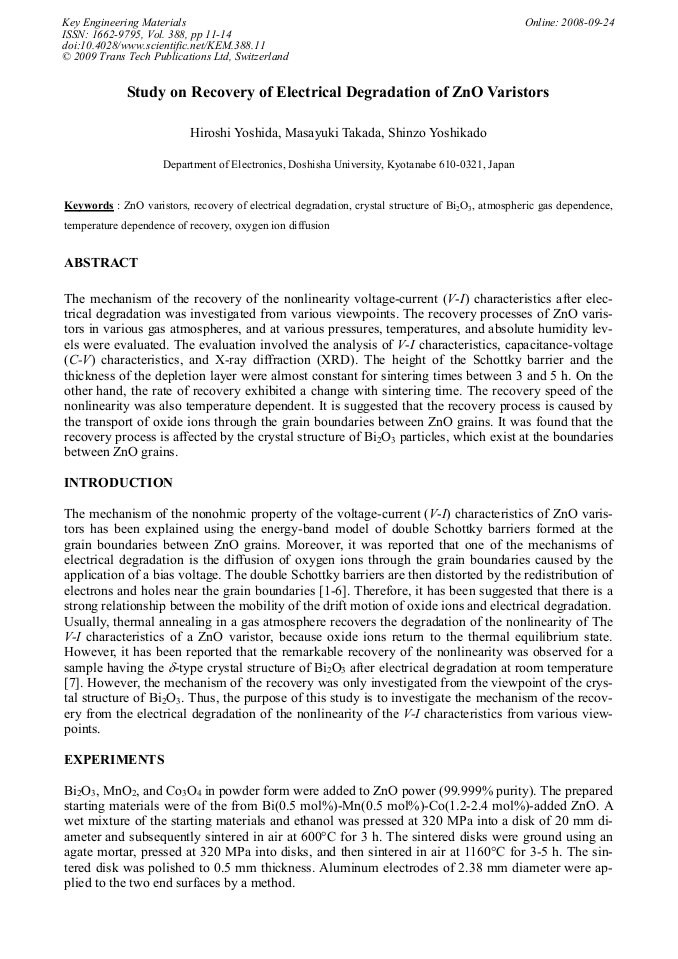

Study on Recovery of Electrical Degradation of ZnO Varistors

Abstract:

The mechanism of the recovery of the nonlinearity voltage-current (V-I) characteristics after electrical degradation was investigated from various viewpoints. The recovery processes of ZnO varistors in various gas atmospheres, and at various pressures, temperatures, and absolute humidity levels were evaluated. The evaluation involved the analysis of V-I characteristics, capacitance-voltage (C-V) characteristics, and X-ray diffraction (XRD). The height of the Schottky barrier and the thickness of the depletion layer were almost constant for sintering times between 3 and 5 h. On the other hand, the rate of recovery exhibited a change with sintering time. The recovery speed of the nonlinearity was also temperature dependent. It is suggested that the recovery process is caused by the transport of oxide ions through the grain boundaries between ZnO grains. It was found that the recovery process is affected by the crystal structure of Bi2O3 particles, which exist at the boundaries between ZnO grains.

• Periodical: Key Engineering Materials (Volume 388)
• Pages: 11-14
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.388.11
• Online since: September 2008
• Authors: Hiroshi Yoshida, Masayuki Takada, Shinzo Yoshikado
• Keywords: Atmospheric Gas Dependence, Crystal Structure of Bi₂O₃, Oxygen-Ion Diffusion, Recovery of Electrical Degradation, Temperature Dependence of Recovery, ZnO Varistor

References

[1] K. Eda, J. Appl. Phys., 49 (1978), p.2964.

[2] G. D. Mahan, J. Appl. Phys., 54 (1983), p.3825.

[3] A. Tanigawa, M. Hirota, T. Sakaguchi, and S. Yoshikado, Trans. IEE Japan, 118-A (1198), p.169.

[4] T. Ishikawa and S. Yoshikado, Trans. IEE Japan, 121-A (2001), p.554.

[5] Y. Satoi and S. Yoshikado, IEEJ Trans. FM, 123-A (2003), p.140.

[6] Y. Satoi, H. Hirai, H. Yoshino, and S. Yoshikado, IEEJ Trans. FM, 124-A (2004), p.189.

[7] H. Yoshida, M. Takada, and S. Yoshikado, Key Eng. Mater., 350 (2007), pp.209-212.

[8] M. Wang, K Hu, B. Zhao, and N. Zhang, Ceram. Int., 33 (2007) pp.151-154. e-mail: syoshika@mail. doshisha. ac. jp, fax: [phone].

[4] 0.

[3] 5.

[3] 0.

[2] 5.

[2] 0 α : after degradation 43210 Absolute Humidity [g/m 3] 8x10-3 6 4 2 Vi : after degradation [V] α : after degradation Vi : after degradation (a).

20.

15.

10.

05 Sα [s -1] 43210 Absolute Humidity [g/m 3].

8.

7.

6.

5 SV i.

[5] 0.

[4] 5.

[4] 0.

[3] 5.

[3] 0 Sintered Time [h] -1. 0 -0. 5.

0.

5.

[1] 0 φΒ [V] 5x10-9 4 3 2 1 0 -1 C01 φΒ C01 ND Fig. 6 Values of C01, ND, and φB for various sintering times.
