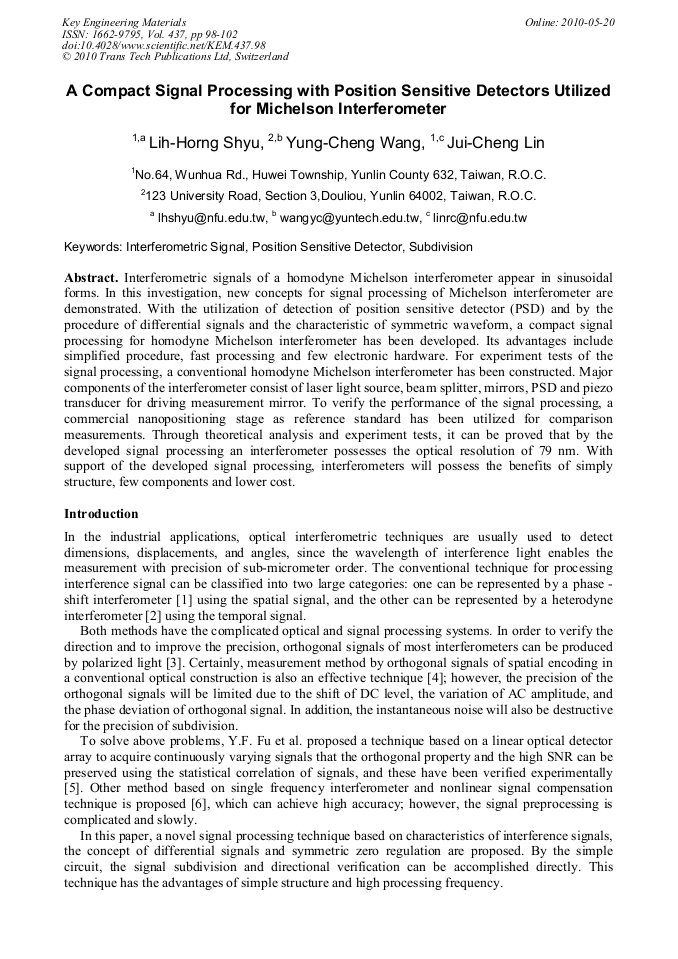

A Compact Signal Processing with Position Sensitive Detectors Utilized for Michelson Interferometer

Abstract:

Interferometric signals of a homodyne Michelson interferometer appear in sinusoidal forms. In this investigation, new concepts for signal processing of Michelson interferometer are demonstrated. With the utilization of detection of position sensitive detector (PSD) and by the procedure of differential signals and the characteristic of symmetric waveform, a compact signal processing for homodyne Michelson interferometer has been developed. Its advantages include simplified procedure, fast processing and few electronic hardware. For experiment tests of the signal processing, a conventional homodyne Michelson interferometer has been constructed. Major components of the interferometer consist of laser light source, beam splitter, mirrors, PSD and piezo transducer for driving measurement mirror. To verify the performance of the signal processing, a commercial nanopositioning stage as reference standard has been utilized for comparison measurements. Through theoretical analysis and experiment tests, it can be proved that by the developed signal processing an interferometer possesses the optical resolution of 79 nm. With support of the developed signal processing, interferometers will possess the benefits of simply structure, few components and lower cost.

You might also be interested in these eBooks

Measurement Technology and Intelligent Instruments IX

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 437)

Pages:

98-102

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.437.98

Citation:

Cite this paper

Online since:

May 2010

Authors:

Lih Horng Shyu, Yung Cheng Wang, Jui Cheng Lin

Keywords:

Interferometric Signal, Position Sensitive Detector (PSD), Subdivision

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Creath: Phase-measurement interferometer techniques. Prog. Optics, 26 (1988), 349.

Google Scholar

[2] P. Hariharan: Optical interferometry (Academic Press, 2003).

Google Scholar

[3] J. Schwider: Advanced Evaluation Techniques in Interferometry. Prog. Optics, 28 (1990), 273.

Google Scholar

[4] N.M. Oldman, et al: Electronic Limitation in Phase Meter for Heterodyne Interferometry. Precision Engineering, 14(3) (1992), 155.

Google Scholar

[5] Y.F. Fu, L.H. Shyu, and J.J. Chen: Displacement Measurement of Gray Encoding Patterns by Using a Curve Fitting Method. Proc. ISIST-99, (1999), pp.103-108.

Google Scholar

[6] František Petrů, Ondřej Číp: Problems regarding linearity of data of a laser interferometer with a single-frequency laser. Precision Engineering, 23 (1999), pp.39-50.

DOI: 10.1016/s0141-6359(98)00023-3

Google Scholar
