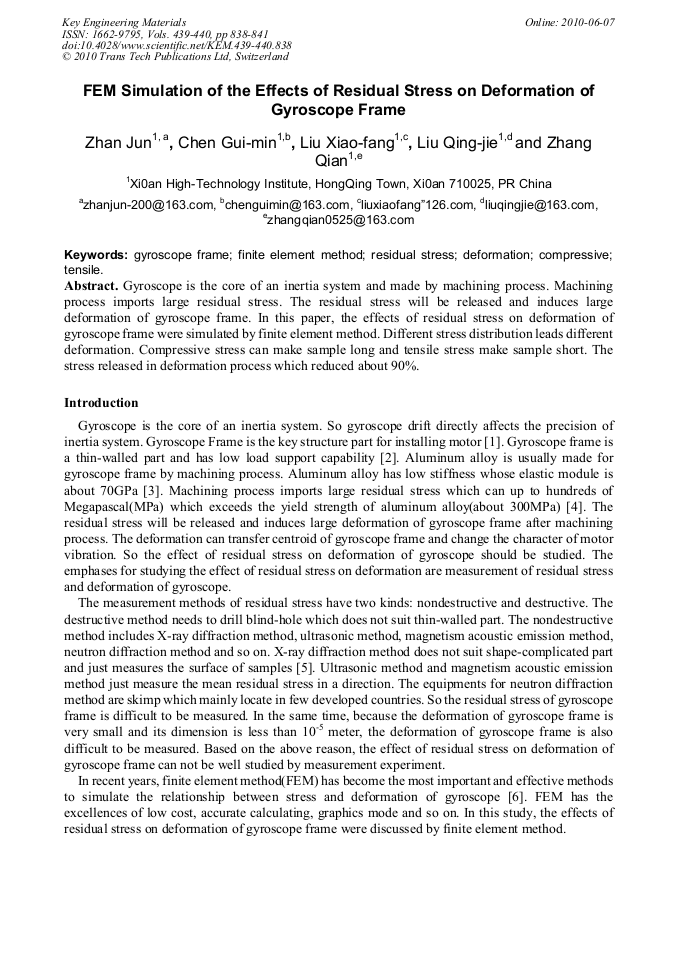

FEM Simulation of the Effects of Residual Stress on Deformation of Gyroscope Frame

Abstract:

Gyroscope is the core of an inertia system and made by machining process. Machining process imports large residual stress. The residual stress will be released and induces large deformation of gyroscope frame. In this paper, the effects of residual stress on deformation of gyroscope frame were simulated by finite element method. Different stress distribution leads different deformation. Compressive stress can make sample long and tensile stress make sample short. The stress released in deformation process which reduced about 90%.

• Periodical: Key Engineering Materials (Volumes 439-440)
• Pages: 838-841
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.439-440.838
• Online since: June 2010
• Authors: Jun Zhan, Gui Min Chen, Xiao Fang Liu, Qing Jie Liu, Qian Zhang
• Keywords: Compressive, Deformation, Finite Element Model (FEM), Gyroscope Frame, Residual Stress, Tensile

References

[1] N. Liu: AEROSPACE MANUFACTURING TECHNOLOGY. Vol. 4 (2005), p.14.

[2] J. D. HUO: NEW TECHNOLOGY & NEW PROCESS. Vol. 7(2009), p.72.

[3] X. C. LI, Y. Y. YANG, Y. Z. WANG and J. BAO: The Chinese Journal of Nonferrous Metals. Vol. 12(2002), p.701.

[4] W. J. BAJ, H. B. WU and H. Y. DONG: Computer Integrated Manufacturing Systems. Vol. 15(2009), p.1011.

[5] Y. Q. Xu, J. F. Li and Z. L. Wang: Journal of Northwestern Polytechnical University. Vol. 27(2009), p.39.

[6] D. H. Wang and D. C. Li: JOURNAL OF CHINESE INERTIAL TECHNOLOGY. Vol. 8(2000), p.36.
